LED Circuit Boards · Design to Volume

LED PCBs —
engineered around the heat.

From a single emitter to a 200-LED board, an LED PCB has one defining job: move heat away from the diodes. PCBSync designs, builds and assembles LED boards on aluminum, copper, ceramic and flexible substrates — prototype to volume.

Request a quote Discuss your design
Aluminum · copper · ceramic · flexSMD · COB · addressableDFM & assemblyPrototype to volume

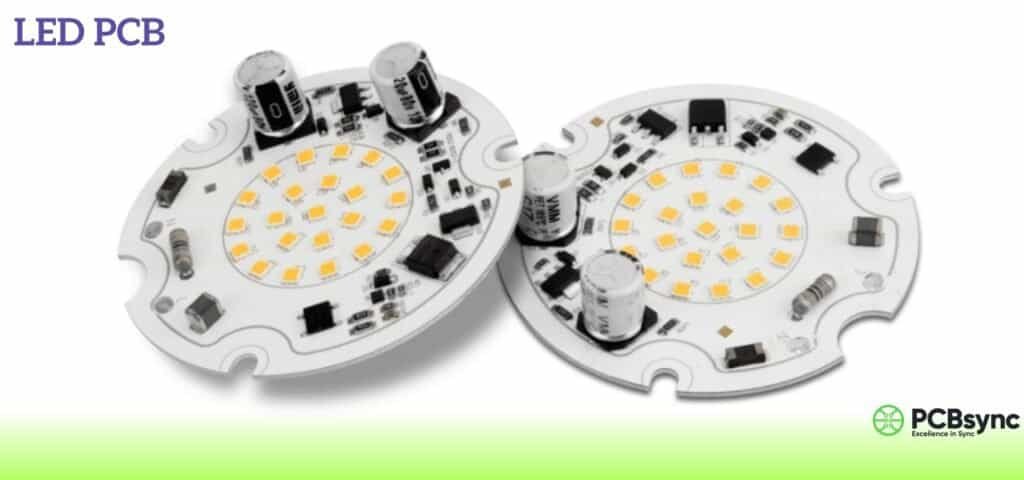

Assembled round aluminum LED PCB modules with SMD LEDs and on-board driver components, made by PCBSync
Assembled aluminum LED PCB modules
4 substratesAl·Cu·ceramic·flex
up to 230W/m·K (AlN)
up to 6 ozHeavy copper
ISO·ULRoHS · REACH
100%Electrically tested
What it is

What is an LED PCB?

An LED PCB is a printed circuit board built to mount and power light-emitting diodes. It carries the electrical connections and physical support for the LEDs — and, above all, conducts their heat away. Because LEDs convert most of their input power into heat, the board is really a thermal device: junction temperature decides brightness, colour stability and lifespan.

That is why most LED boards are metal-core: a thin, thermally conductive dielectric carries heat from the LED into a metal base that acts as a built-in heatsink. The right base — aluminum, copper, ceramic or flexible — depends on how much heat the LEDs make.

Thermal firstHeat decides life & output
Metal-core baseBuilt-in heatsink
Any LED packageSMD, COB, addressable
Design to volumeDFM, assembly, scale
Choosing the substrate

Which LED PCB material do you need?

SubstrateThermalBest forPage
FR-4Low (<1 W/m·K)Low-power indicators, decorativeStandard PCB
Aluminum (MCPCB) Most common1–9 W/m·KGeneral & high-power lightingAluminum PCB
Copper core / DTPUp to ≈400 W/m·KExtreme power, reliabilityCopper Core
Ceramic (Al2O3 / AlN)24–230 W/m·KHighest density, UVC, COBCeramic LED PCB
Flexible (polyimide)Thin / via-assistedStrips, curves, wearablesFlexible LED PCB
Not sure which fits your power level? Send your LED datasheet and we'll recommend a substrate and stackup.
Why it matters

Thermal design decides everything

Heat travels from the LED junction → solder pad → dielectric → metal base → heatsink → air, and every step adds resistance. Lower the total and the LED runs cooler, brighter and longer — roughly every 10 °C off junction temperature can double its life. It is the thinking behind every high-power LED PCB we build.

  • Pick the right base — aluminum, copper or ceramic for the heat load.
  • Heavy copper — up to 6 oz to spread current and heat.
  • Thermal vias — vertical heat paths on FR-4 and hybrids.
  • White solder mask — reflects light to lift usable output.
  • ENIG / OSP finish — flat, solderable, no yellowing under reflow.
Junction to heatsinkJunction heat conducted down to the heatsinkLED diePhosphor / lensSolderDielectricAluminum / ceramic baseHeatsinkJunction-to-heatsink path
Applications

LED PCBs for every application

Grow lightingFull-spectrum horticulture
UV & UVCCuring & disinfection
AutomotiveHeadlamp, signal, interior
Bulbs & lampsRound & star boards
DownlightsRecessed modules
Street & outdoorHigh-power, rugged
Signage & pixelsAddressable RGB
Industrial & high-bayHigh-output fixtures
The range

Explore the full LED PCB range

Every LED board type we make — pick your substrate, package, application or service.

By base material

Aluminum PCBMost common MCPCBCopper Core LED PCB≈400 W/m·K & DTPCeramic LED PCBLowest thermal resistanceFlexible LED PCBBendable polyimideHigh Power LED PCBThermal design by wattageCustom LED PCBAny material to spec

By package & form

SMD LED PCB2835 / 3030 / 5050COB LED PCBChip-on-board enginesRound LED PCBCircular boardsAddressable LED PCBWS2812 / SK6812 pixels

By application

Grow Light PCBVertical farms & greenhousesUV LED PCBUVA / UVB / UVCAutomotive LED PCBHeadlight & tail lightLED Bulb PCBRound / star & DOBLED Downlight PCBCOB & SMD modulesLED Street Light PCBOutdoor high-power

Services & design

LED PCB AssemblyTurnkey SMT & sourcingCustom LED PCBBuilt to your specLED PCB DesignDFM & layout support
Built in-house

Designed, built and assembled under one roof

From a 9 W round downlight module to a 144-LED flood board, we fabricate the metal-core, ceramic, flexible or rigid board and assemble it on the same line — LED sourcing, SMT, AOI and X-ray, then functional and lighting tests. One partner from Gerbers to a finished, tested module. Explore our full PCB capabilities and laboratory.

  • Metal-core & ceramic fab — aluminum, copper, AlN, flexible, rigid.
  • Heavy copper — up to 6 oz; see heavy-copper PCB.
  • Turnkey assembly — sourcing, SMT, test; see LED PCB assembly.
  • AOI · X-ray · lab — verified before shipment.
  • Prototype to volume — quick-turn prototypes that scale.
High-power 144-LED aluminum flood-light PCB boards populated with SMD LEDs, manufactured by PCBSync144-LED high-power flood board
Design tips

LED PCB design tips that pay off

Match base to power

FR-4 for indicators, aluminum for lighting, copper/ceramic for high density.

Size the copper

2–3 oz (or more) and wide traces for high-current LEDs to avoid voltage drop.

Use a white mask

White reflects light for better uniformity; specify mask that resists yellowing in reflow.

Add thermal vias

On FR-4 and hybrids, via arrays carry heat to the back; MCPCBs use the metal core itself.

Plan strips & power

V-cut long boards and inject power along the length to keep brightness even.

Design for DFM

Send Gerber + XY + BOM with polarity marks; conformal-coat outdoor boards.

Start your project

Talk to an LED PCB engineer

Send your Gerbers or a spec — LED type, power, board size and substrate — and we'll reply with feasibility, a recommended stackup and a quote, usually within 24 hours.

  • Gerbers or a spec — LED, wattage, size, environment.
  • Substrate — aluminum, copper, ceramic, flexible…
  • Quantity — prototype, pilot or production.

LED PCB inquiry

Reply within 24 hours · DFM included · NDA on request
or
Upload your Gerber files →
Submitting opens your email app with the details prefilled. Files are attached on the upload page.
Answers

LED PCB — FAQ

An LED PCB is a printed circuit board designed to mount and power light-emitting diodes. It provides the electrical connections and mechanical support for the LEDs and — most importantly — conducts heat away from them. Because LEDs turn most of their input power into heat, the board's thermal design largely decides brightness and lifespan.

It depends on power. FR-4 suits low-power indicators; an aluminum MCPCB is the default for most lighting; copper core handles extreme power density; and ceramic gives the lowest thermal resistance for the most demanding LEDs. Material choice is driven mainly by how much heat the LEDs produce.

A standard FR-4 board traps heat, which raises the LED junction temperature and shortens life. A metal-core PCB (usually aluminum) acts as a built-in heatsink: heat passes through a thin thermally conductive dielectric into the metal base and out to the housing, keeping the LED cool.

SMD boards mount many separate surface-mount LED packages, spreading heat and giving flexible, cost-effective designs. COB (chip-on-board) places many bare dies under one phosphor for a single high-flux source, which concentrates heat and needs a stronger thermal path. We build both.

Lower every thermal resistance from junction to air: a high-conductivity dielectric on a metal or ceramic base, heavy copper to spread current, thermal vias where needed, and good contact to a heatsink. A white solder mask also reflects light to lift usable output.

Yes — DFM and design support, quick-turn prototypes, and full turnkey assembly with LED sourcing and testing, all scaling from a first prototype to volume production under one roof.

Send your Gerber files (RS-274X), the drill/coordinate (XY) file and a BOM, with clear LED polarity marks. We review for manufacturability and reply with feasibility and a quote, usually within 24 hours. NDA on request.

Let's build your LED PCB.

Whatever the LED, whatever the power — partner with a manufacturer that engineers the board around the heat, from prototype to volume.

Request a quote Talk to an engineer
