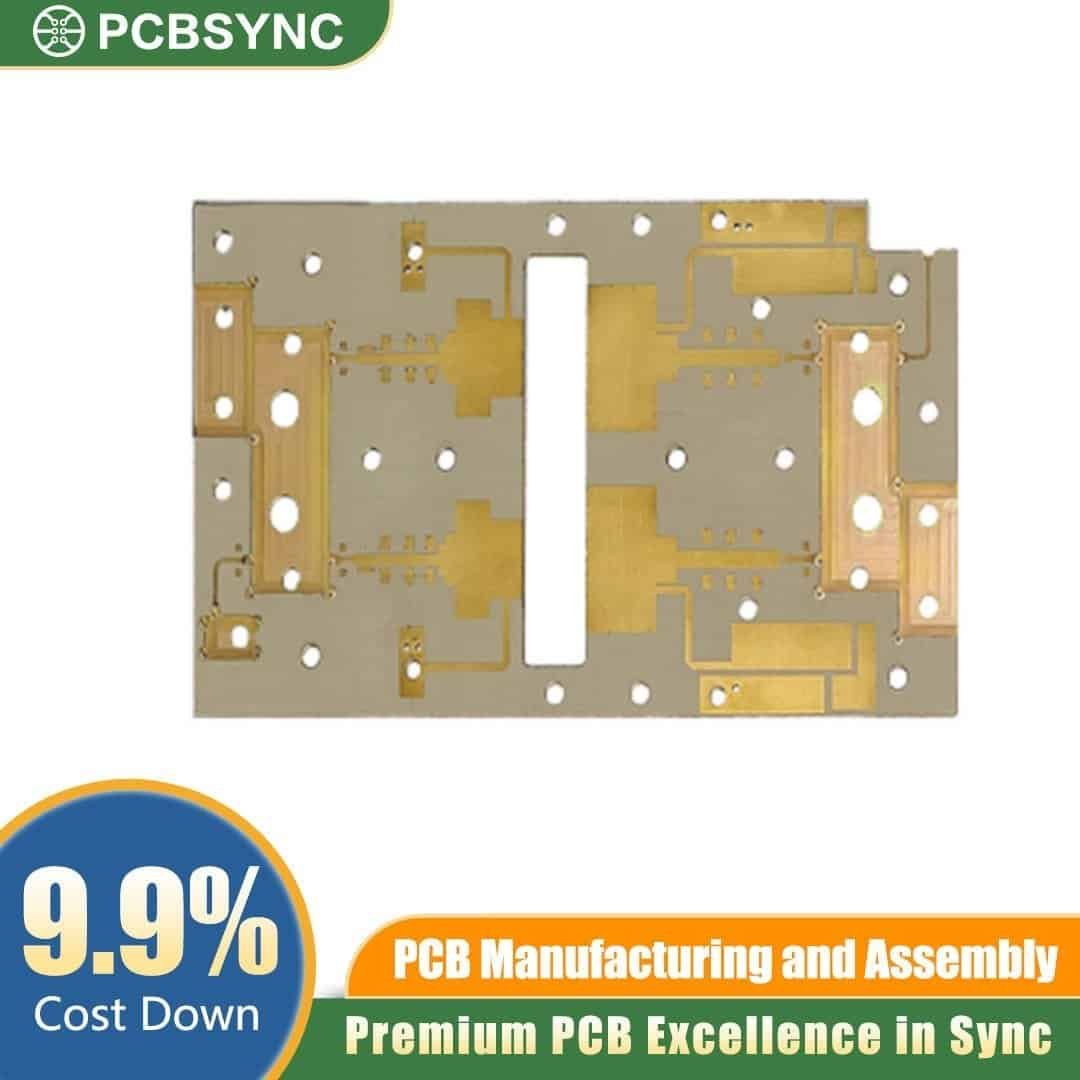

The Arlon 25N PCB is a specialised 6-layer hybrid board engineered for complex RF, microwave, and high-speed digital applications. Utilising a ceramic thermoset resin system, this board delivers robust thermal stability and reliable signal transmission for engineers developing mission-critical infrastructure. With a controlled dielectric constant (DK) of 3.38, Arlon PCB materials provide the consistency required for precise impedance control across varying frequencies.
Key Features of the Arlon 25N PCB
-
Material Composition: Ceramic-filled thermoset laminate for enhanced thermal conductivity.
-
Dielectric Constant (DK): 3.38 (at 10 GHz), ensuring stable signal propagation.
-
Layer Count: 6-layer hybrid stack-up, optimising cost and performance by integrating standard materials with high-frequency laminates.
-
Dissipation Factor (Df): Low loss characteristics to minimise signal attenuation over long traces.
-
Thermal Management: Low Z-axis coefficient of thermal expansion (CTE) for reliable plated through-hole (PTH) integrity during thermal cycling.
Applications
-
RF and microwave antennas
-
Telecommunications infrastructure and basestations
-
Radar and advanced sensor systems
-
High-speed digital routing backplanes
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Ready to integrate this hybrid ceramic thermoset board into your next project? Request a quote from our engineering team today to discuss your specific fabrication tolerances.
