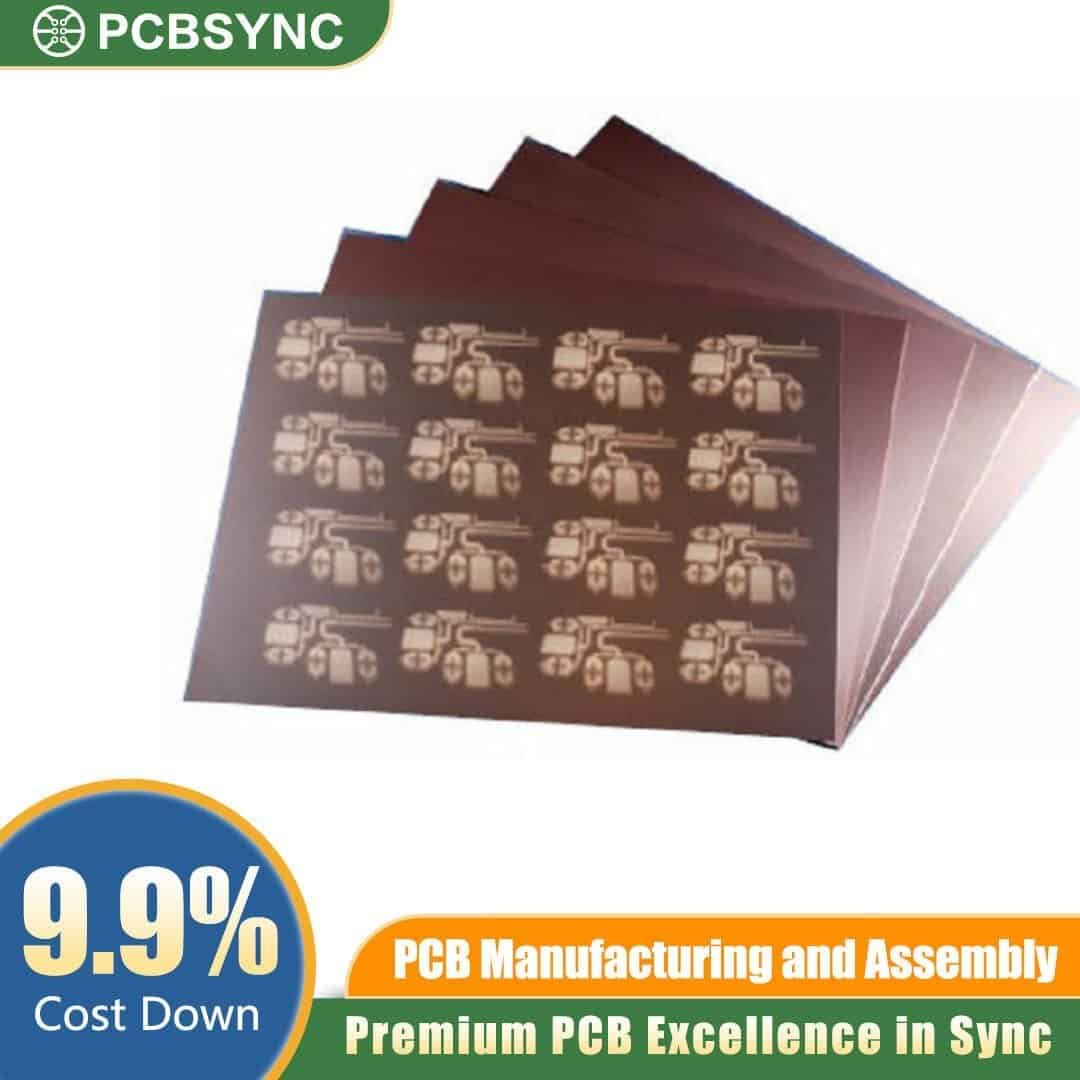

The RT duroid 6035HTC 0.8mm 8-layer high-altitude platform board is specifically engineered for microwave and RF systems operating in extreme atmospheric conditions. Utilizing Rogers RT/duroid® 6035HTC ceramic-filled PTFE composites, this multi-layer board ensures stable electrical performance across a wide temperature range. It is the ideal choice for engineers developing high-power amplifiers and antenna systems that require efficient heat dissipation and signal integrity at high altitudes.
Key Features
-
Substrate Material: Rogers RT duroid 6035HTC (High Thermal Conductivity) ceramic-filled PTFE.
-
Stack-up: Advanced 8-layer high-density interconnect (HDI) configuration.
-
Board Thickness: Precision 0.8mm profile for weight-sensitive applications.
-
Copper Weight: 1oz (35µm) base copper for balanced power distribution.
-
Surface Finish: Immersion Silver (Ag) for excellent solderability and low skin-effect loss.
-
Dielectric Constant ($D_k$): $3.50 \pm 0.05$ at 10GHz, providing high-frequency stability.
-
Thermal Management: Thermal conductivity of $1.44 \text{ W/m/K}$—nearly double that of standard PTFE laminates.
Applications
The RT duroid 6035HTC 0.8mm 8-layer high-altitude platform board is designed for high-reliability sectors, including:
-
Aerospace: High-altitude platform stations (HAPS) and unmanned aerial vehicles (UAVs).
-
Telecommunications: 5G base stations, power amplifiers, and satellite communications.
-
Defence: Phased array radar systems and electronic warfare modules.
-
RF Engineering: High-power filters and couplers requiring superior heat sinking.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
For detailed technical enquiries or to discuss your specific project requirements for high-frequency multilayer boards, please contact our engineering team or request a formal quotation today.
