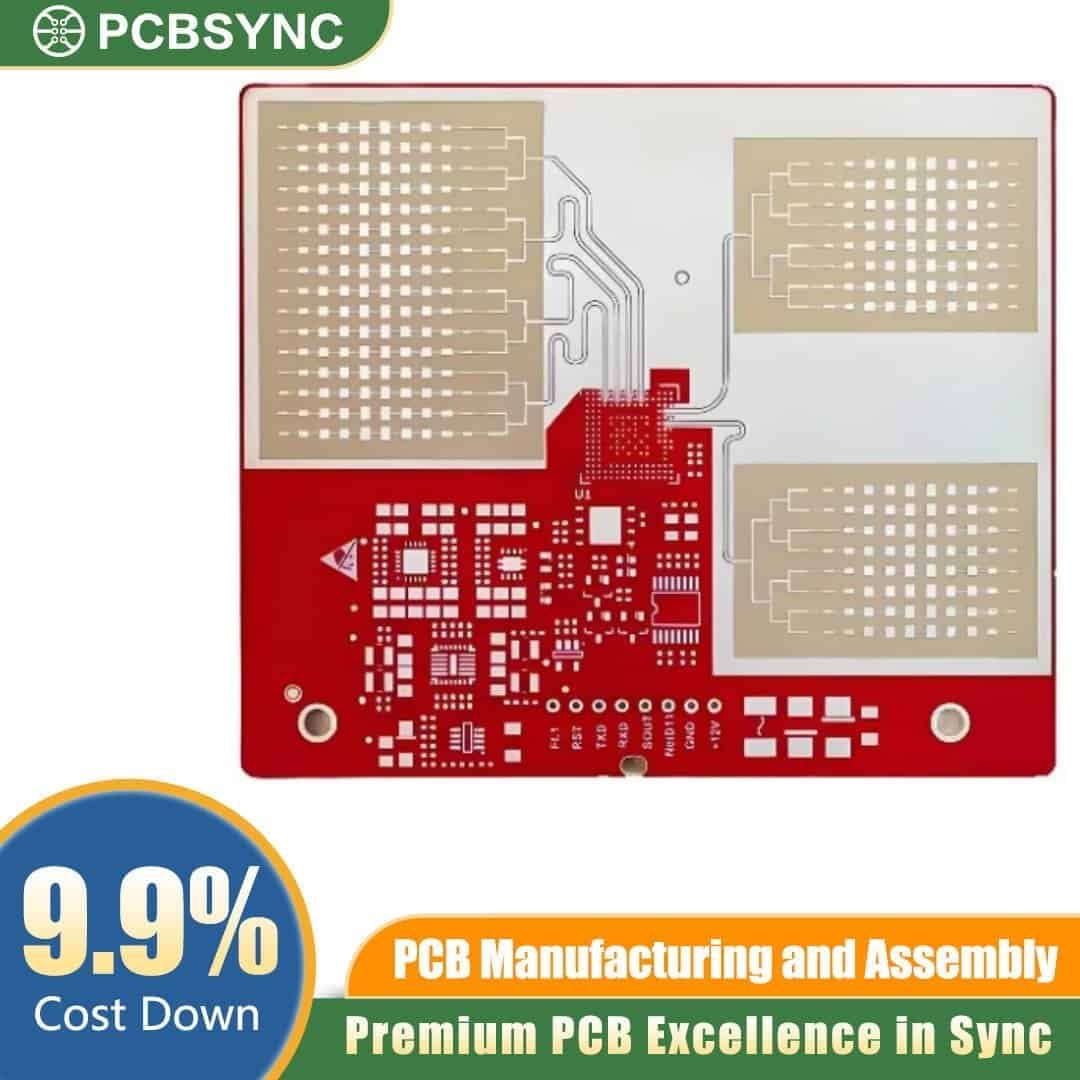

The Taconic TLC-32 PCB is a high-performance, cost-effective RF substrate designed to meet the rigorous demands of modern high-frequency electronic designs. Engineered with a tightly controlled dielectric constant ($D_k$) of $3.20$, this substrate provides product developers and microwave engineers with excellent electrical stability across a wide temperature range. By balancing low dissipation factor ($D_f$) with high mechanical strength, the Taconic TLC-32 PCB ensures superior signal integrity and minimal insertion loss for high-volume commercial wireless applications.
-
Stable Dielectric Constant: Maintains a consistent $D_k$ of $3.20 \pm 0.05$ at 1.9 GHz for predictable RF circuit performance.
-
Low Dissipation Factor: Features a $D_f$ of 0.0030 at 1.9 GHz, significantly reducing signal attenuation in microwave frequencies.
-
Thermal and Dimensional Stability: Offers excellent copper bond strength and low coefficients of thermal expansion (CTE) to prevent delamination during lead-free soldering.
-
Low Moisture Absorption: Rated under 0.02%, ensuring reliable electrical performance in humid or changing environmental conditions.
-
Flexible Cladding Options: Compatible with various copper foil weights, including electrodeposited (ED) and rolled annealed (RA) copper.
The electrical profiles and cost efficiencies of Taconic TLC-32 circuits make them an industry standard for several commercial and high-frequency systems:
-
Wireless Communications: Cellular base station antennas, power amplifiers, and low-noise amplifiers (LNAs).
-
Automotive Systems: Consumer telematics, vehicle-to-everything (V2X) communication modules, and tolling systems.
-
Satellite Technology: Low Earth Orbit (LEO) satellite receivers and block upconverters (BUCs).
-
Radar Equipment: Commercial radar systems, traffic control sensors, and collision-avoidance systems.
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
For tailored material stack-ups, custom panel sizes, or volume manufacturing timelines on your next Taconic TLC-32 PCB project, contact our engineering team or submit your Gerber files to request a quote today.
