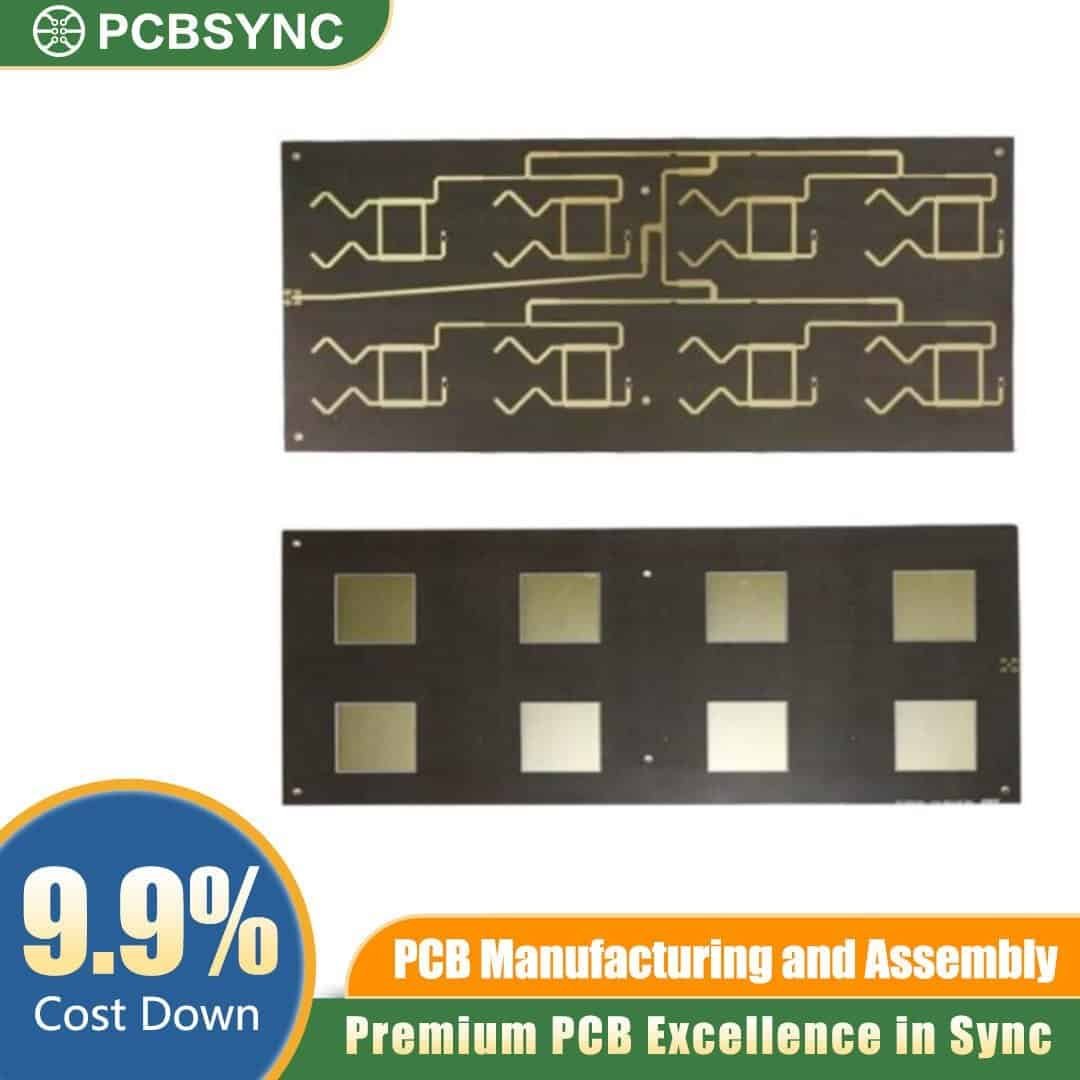

The RT duroid 5880 Radar Transmitter Board is a precision-engineered solution for high-frequency RF applications that demand minimal signal distortion and superior thermal management. Utilising Rogers RT/duroid 5880 glass microfibre reinforced PTFE composites, this board is specifically designed for environments where a low dielectric constant ($D_k$) and low dissipation factor ($D_f$) are critical for performance.
This 6-layer configuration incorporates a 1.2mm thickness and 3oz heavy copper weight, making it ideal for handling the thermal loads associated with high-power radar transmissions. The ENIG (Electroless Nickel Immersion Gold) surface finish ensures excellent solderability and oxidation resistance, maintaining the long-term reliability of fine-pitch components in demanding operating conditions.
Key Features
-
Substrate Material: Genuine RT/duroid 5880 (PTFE composite) for ultra-low loss.
-
Layer Stackup: Complex 6-layer design for advanced signal routing and shielding.
-
Copper Weight: 3oz (105µm) heavy copper for enhanced current capacity and heat dissipation.
-
Surface Finish: ENIG for superior flatness and corrosion protection.
-
Thickness: 1.2mm precision core for mechanical rigidity and RF stability.
-
Electrical Stability: Extremely low $D_f$ of 0.0009 at 10GHz.
Applications
-
Radar Systems: High-power airborne and ground-based radar transmitters.
-
Satellite Communications: Earth station equipment and space-grade transceivers.
-
Aerospace & Defence: Mission-critical guidance systems and electronic warfare modules.
-
Point-to-Point Digital Radio: High-capacity microwave links and millimetre-wave antennas.
