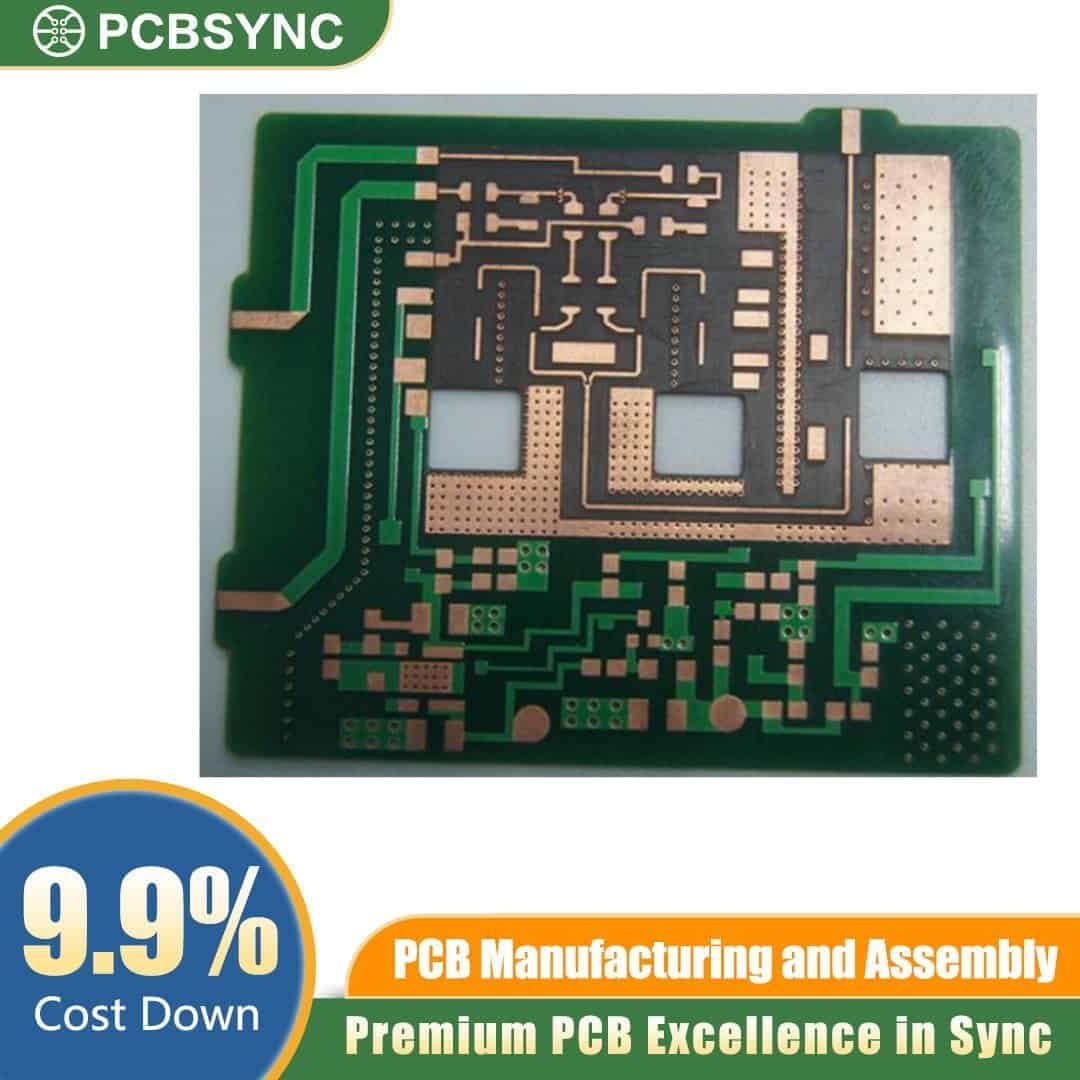

The Taconic TLX Series PCB provides exceptional electrical and mechanical performance for high-frequency microwave and RF circuit designs. Utilizing a precisely engineered PTFE woven-glass substrate, these boards offer a tightly controlled dielectric constant (Dk) ranging from 2.45 to 2.65, alongside an ultra-low dissipation factor (Df). This structural profile ensures minimal signal attenuation and excellent dimensional stability, making it the ideal choice for radar systems, defense electronics, and advanced telecommunication infrastructure.
Key Features
-
Stable Dielectric Constant (Dk): Maintained between 2.45 and 2.65 ($\pm0.04$) for predictable impedance control across microwave frequencies.
-
Ultra-Low Dissipation Factor (Df): Low loss performance tailored for high-speed, high-frequency signals.
-
Low Moisture Absorption: Less than 0.02% water absorption ensures electrical performance remains uncompromised in high-humidity environments.
-
Excellent Thermal Mechanical Properties: High peel strength on copper clad options ensuring reliable circuit traces through repeated thermal cycling.
-
Material Integrity: Woven-glass reinforcement offers superior dimensional stability and creep resistance compared to non-reinforced PTFE laminates.
Applications
-
Aerospace and Defense: Used in radar systems, electronic warfare modules, and satellite communications.
-
Telecommunications: Deployed in base station antennas, power amplifiers, and microwave backhaul links.
-
Automotive Radar: Essential for collision avoidance systems and autonomous driving sensors operating at higher frequencies.
-
Test and Measurement: High-reliability boards for RF testing equipment and calibration modules.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Request an RFQ
Ready to integrate high-frequency performance into your next design? Send your Gerber files to the PCBSYNC team today to receive a detailed quote on custom fabrication and turnkey assembly.
