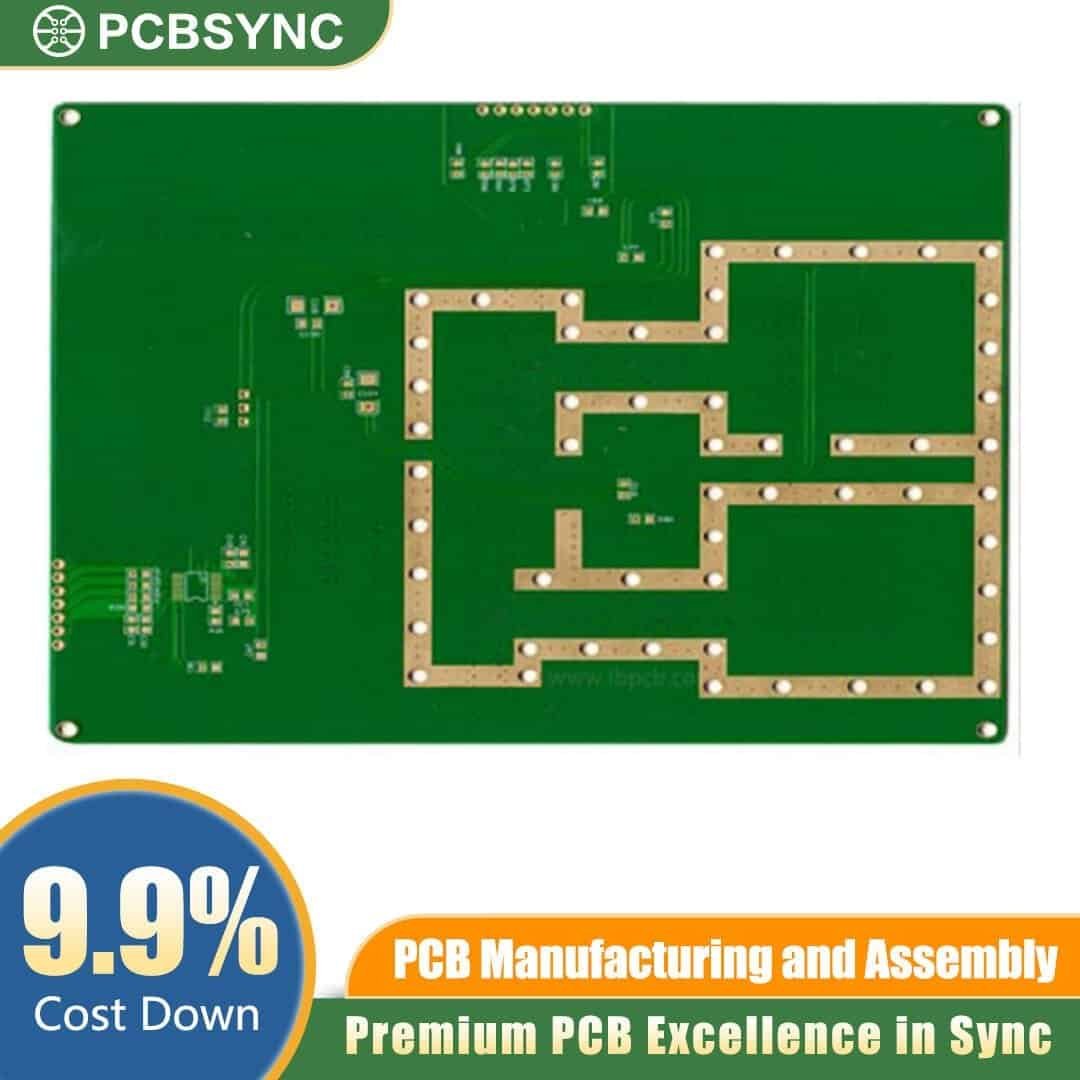

RT duroid 5870 1.6mm 2oz 3u Gold 12-Layer Airborne Surveillance Radar Board

RT duroid 5870 1.6mm 2oz 3u Gold 12-Layer Airborne Surveillance Radar Board

Request A Quote

Product Details

The RT duroid 5870 12-layer airborne surveillance radar board is a high-performance multilayer solution designed for the rigorous demands of modern aviation and defense electronics. Utilizing Rogers RT/duroid 5870 glass microfiber reinforced PTFE composites, this board ensures a low dielectric constant (Dk) and low dissipation factor, making it ideal for high-frequency circuits where signal integrity and minimal dispersion are paramount.

Key Features

  • Substrate Material: Rogers RT duroid 5870 (Glass Microfiber Reinforced PTFE).

  • Layer Count: 12-layer high-density interconnect (HDI) stack-up.

  • Board Thickness: 1.6mm for balanced structural integrity.

  • Copper Weight: 2oz (70µm) finished copper for superior power handling and heat dissipation.

  • Surface Finish: 3u Hard Gold (ENIG or Selective Gold) for maximum oxidation resistance and contact reliability.

  • Dielectric Constant (): at 10GHz.

  • Quality Standards: IPC Class 3 compliant for aerospace and military-grade reliability.

Applications

The RT duroid 5870 12-layer airborne surveillance radar board is specifically developed for:

  • Airborne Radar Systems: Synthetic Aperture Radar (SAR) and weather monitoring.

  • Surveillance Technology: Long-range ground and maritime tracking.

  • Electronic Warfare (EW): Signal jamming and defensive countermeasures.

  • Satellite Communications: High-speed data links and RF front-ends.

  • Point-to-Point Digital Antennas: Microwave radio backhaul.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

For detailed technical inquiries or to discuss your custom RF stack-up requirements, please contact our engineering team or request a formal quote through our online portal.
