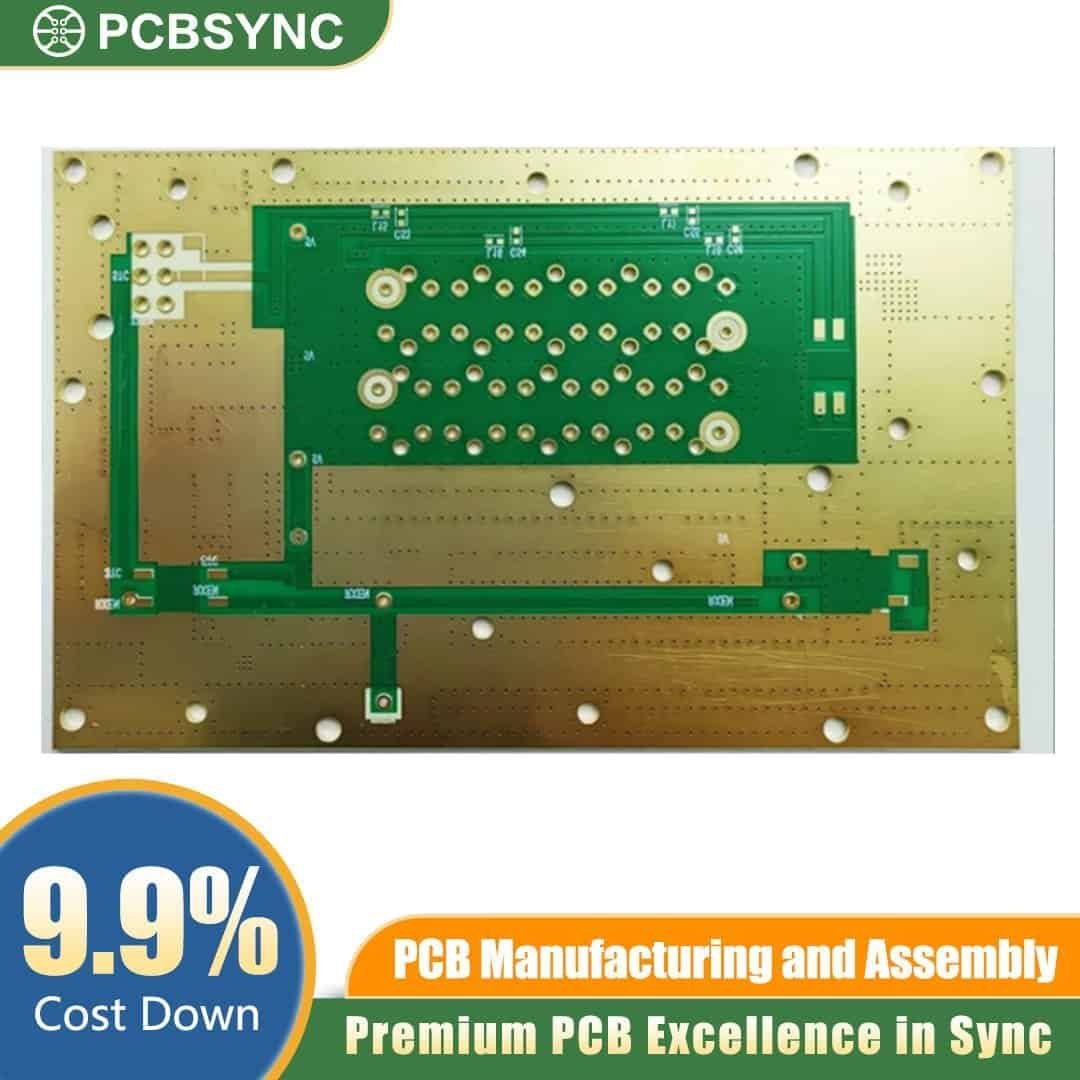

Taconic TLY-5 PCB 30mil GPS L1L2 Antenna RF Substrate

Taconic TLY-5 PCB 30mil GPS L1/L2 Antenna RF Substrate

Request A Quote

Product Details

The Taconic TLY-5 PCB 30mil substrate is a premium high-frequency material engineered for high-performance dual-band GPS L1/L2 antenna systems. Utilizing a woven fiberglass-reinforced PTFE structure, this RF substrate provides exceptional dimensional stability and uniform electrical properties across high volume runs. It is the ideal foundation for hardware developers and aerospace engineers who require minimal signal distortion and low insertion loss in demanding microwave environments.

Key Features of Taconic TLY-5 PCB 30mil

  • Low Dielectric Constant (): Standardized at for optimal high-frequency signal propagation.

  • Minimal Dissipation Factor (): Ultra-low loss tangent of 0.0009 at 10 GHz ensures maximum RF efficiency.

  • 30mil Core Thickness: Precision 0.76mm thickness optimized for dual-frequency GPS patch antennas.

  • Moisture Absorption: Less than 0.02% absorption rate, maintaining electrical stability in high-humidity environments.

  • Copper Cladding: Available with 0.5 oz, 1 oz, or 2 oz electrodeposited or rolled annealed copper foil.

  • Compliance Standards: Fully compliant with IPC-4103 specifications and RoHS/REACH environmental directives.

Applications

  • GPS L1/L2 Antenna Systems: High-accuracy aviation, marine, and military positioning systems.

  • Telematics & Satellite Communication: Heavy vehicle tracking, base station antennas, and VSAT systems.

  • Aerospace & Defence: Unmanned aerial vehicles (UAVs), radar manifolds, and missile guidance electronics.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Ready to integrate this high-frequency substrate into your next project? Contact the engineering team at PCBSYNC today to discuss your design specifications or request a custom manufacturing quote.
