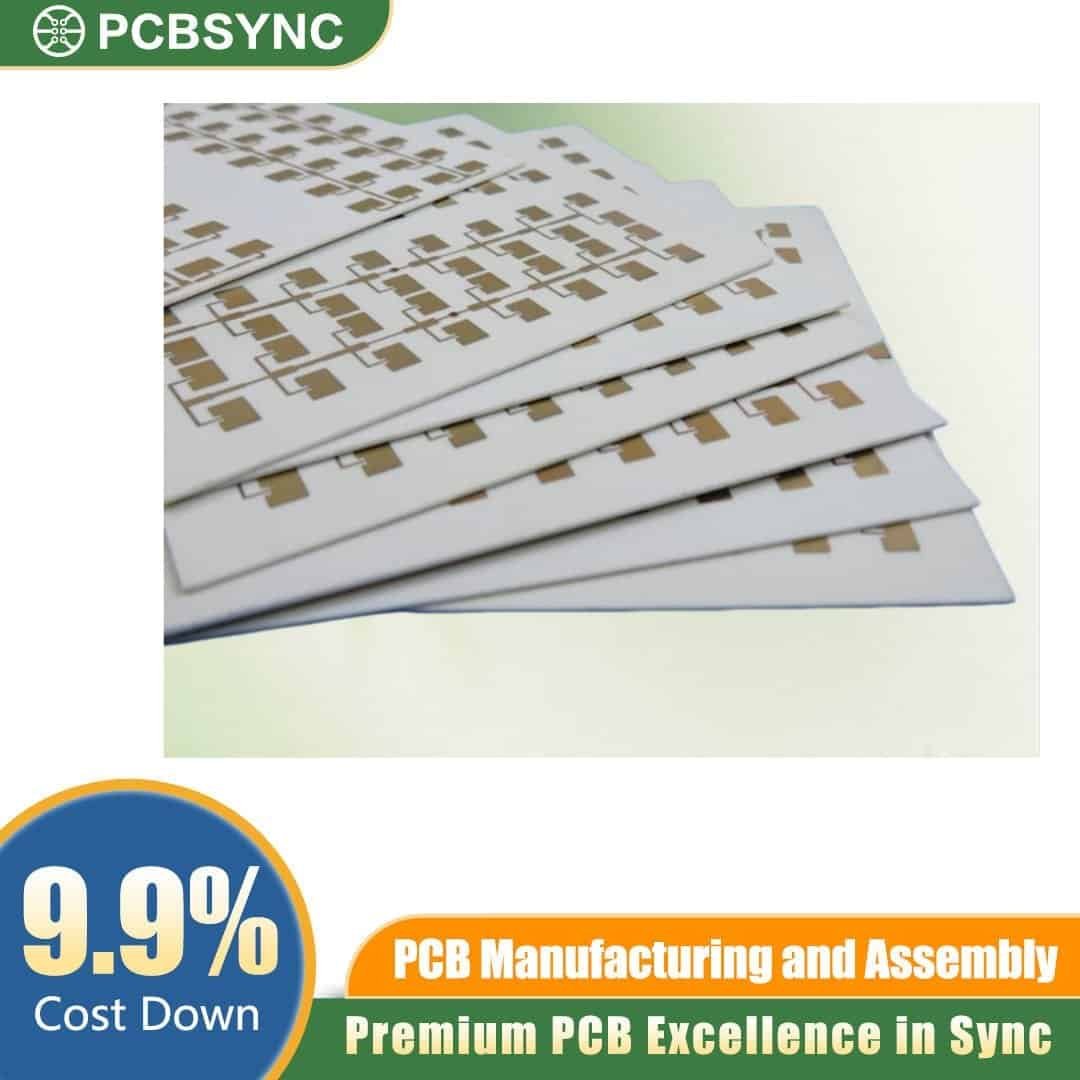

RO3006 0.5mm 12oz ENIG 4-Layer CubeSat Communication PCB

RO3006 0.5mm 1/2oz ENIG 4-Layer CubeSat Communication PCB

Request A Quote

Product Details

The RO3006 0.5mm 4-Layer CubeSat Communication PCB is a specialised high-frequency circuit board designed for the rigorous demands of Low Earth Orbit (LEO) communications. Built on Rogers RO3006 ceramic-filled PTFE composites, this board ensures a stable dielectric constant across a wide temperature range, making it essential for engineers developing satellite transponders, phase-shifted antennas, and RF front-ends.

Key Features

  • Substrate Material: Rogers RO3006 (Ceramic-filled PTFE) for superior electrical performance.

  • Layer Count: 4-Layer stack-up optimised for EMI shielding and signal routing.

  • Board Thickness: 0.5mm ultra-thin profile for weight-sensitive aerospace applications.

  • Copper Weight: 1/2oz (18µm) finished copper for precise fine-line impedance control.

  • Surface Finish: ENIG (Electroless Nickel Immersion Gold) for excellent solderability and oxidation resistance.

  • Dielectric Constant ($D_k$): 6.15 +/- 0.15 @ 10GHz, ensuring consistent phase stability.

  • Thermal Expansion: Low CTE (Coefficient of Thermal Expansion) matched to copper for high reliability during thermal cycling.

Applications

  • CubeSat Communication Systems: S-band and X-band telemetry and command modules.

  • Aerospace RF Systems: Compact radar manifolds and microwave transmitters.

  • Satellite Ground Stations: High-frequency signal processing and amplification.

  • Remote Sensing: Precision RF instrumentation for orbital data collection.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

For detailed technical support or to submit your Gerber files for a custom RO3006 0.5mm 4-Layer CubeSat Communication PCB project, please contact our engineering team today or request a formal quote through our online portal.
