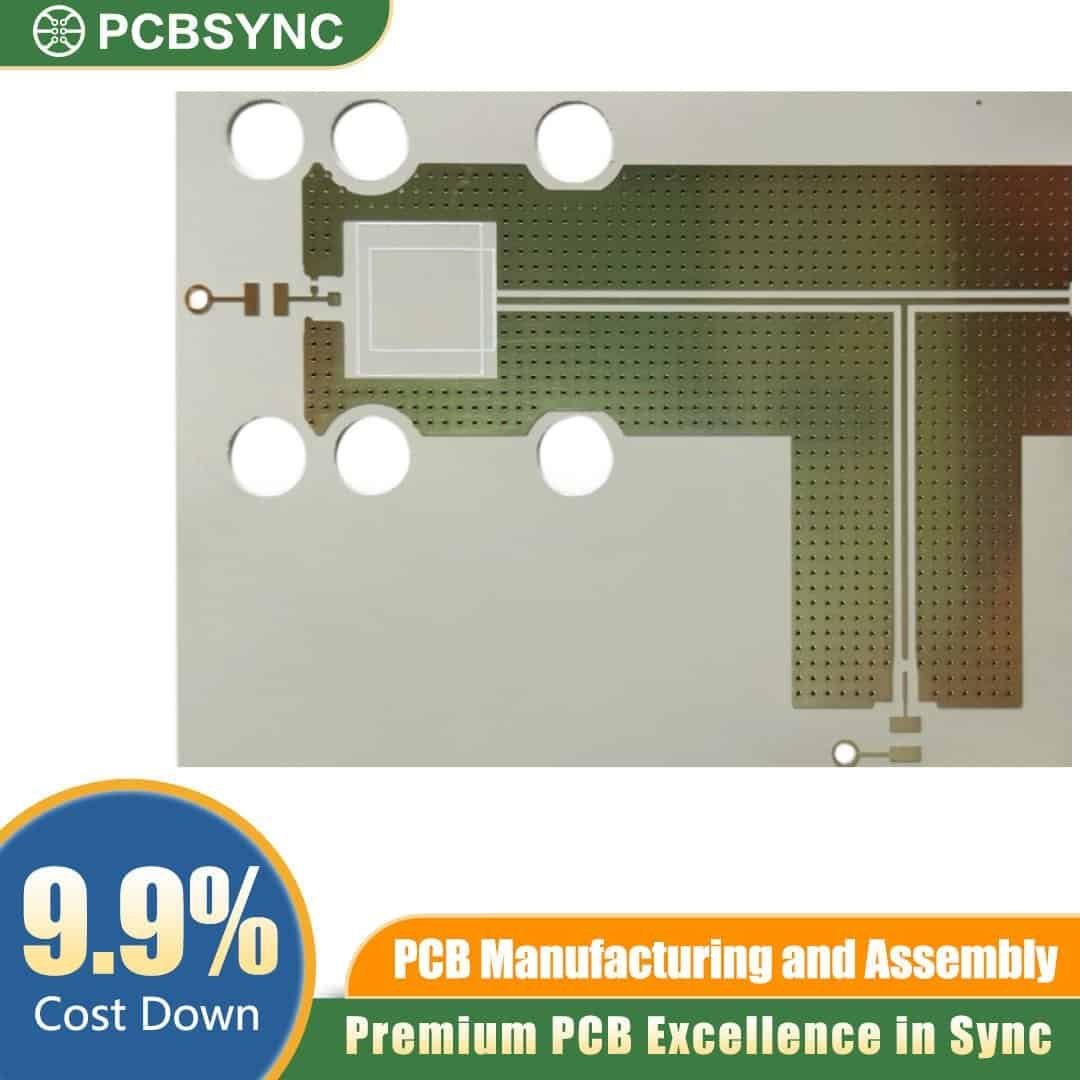

The Taconic RF-35 PCB is a high-performance, organic-ceramic filled PTFE laminate designed specifically for high-frequency RF, microwave, and millimetre-wave applications. Engineered for product developers, RF engineers, and procurement managers who require exceptional thermal stability and low electrical loss, this substrate ensures reliable signal integrity in harsh operating environments. Its excellent mechanical properties prevent the pad peeling and delamination often associated with multi-layer high-frequency builds.
Key Features of Taconic RF-35 PCB
-
Thermal Performance: Exceptionally high glass transition temperature ($T_g > 315^\circ\text{C}$) ensures dimensional stability during lead-free reflow soldering cycles.
-
Flammability Rating: Fully compliant with UL94 V-0 standards for rigorous flame retardancy requirements.
-
Low Loss Characteristics: Engineered with a stable dielectric constant (Dk of 3.50 $\pm$ 0.05) and low dissipation factor (Df of 0.0018 at 1.9 GHz) to minimise signal attenuation.
-
Low Moisture Absorption: Maintains electrical property stability in humid environments due to ultra-low moisture absorption rates (less than 0.02%).
-
Eco-Friendly Compliance: RoHS and REACH compliant, supporting eco-conscious manufacturing initiatives.
Applications
The low-loss profile and thermal resilience of the Taconic RF-35 substrate make it the industry choice for a variety of high-frequency sectors:
-
Telecommunications: Base station power amplifiers, antennas, filters, and satellite receiver components.
-
Automotive Electronics: Adaptive cruise control systems, collision avoidance systems, and radar sensors.
-
Industrial & Aerospace: High-reliability RF testing equipment, high-speed switching networks, and microwave sub-systems.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Get Started on Your Next RF Project
Ready to integrate Taconic RF-35 laminates into your product deployment? Contact the PCBSYNC engineering team today to discuss your layer stackup requirements, design tolerances, and high-frequency manufacturing specifications, or submit your Gerber files directly to receive a comprehensive quote.
