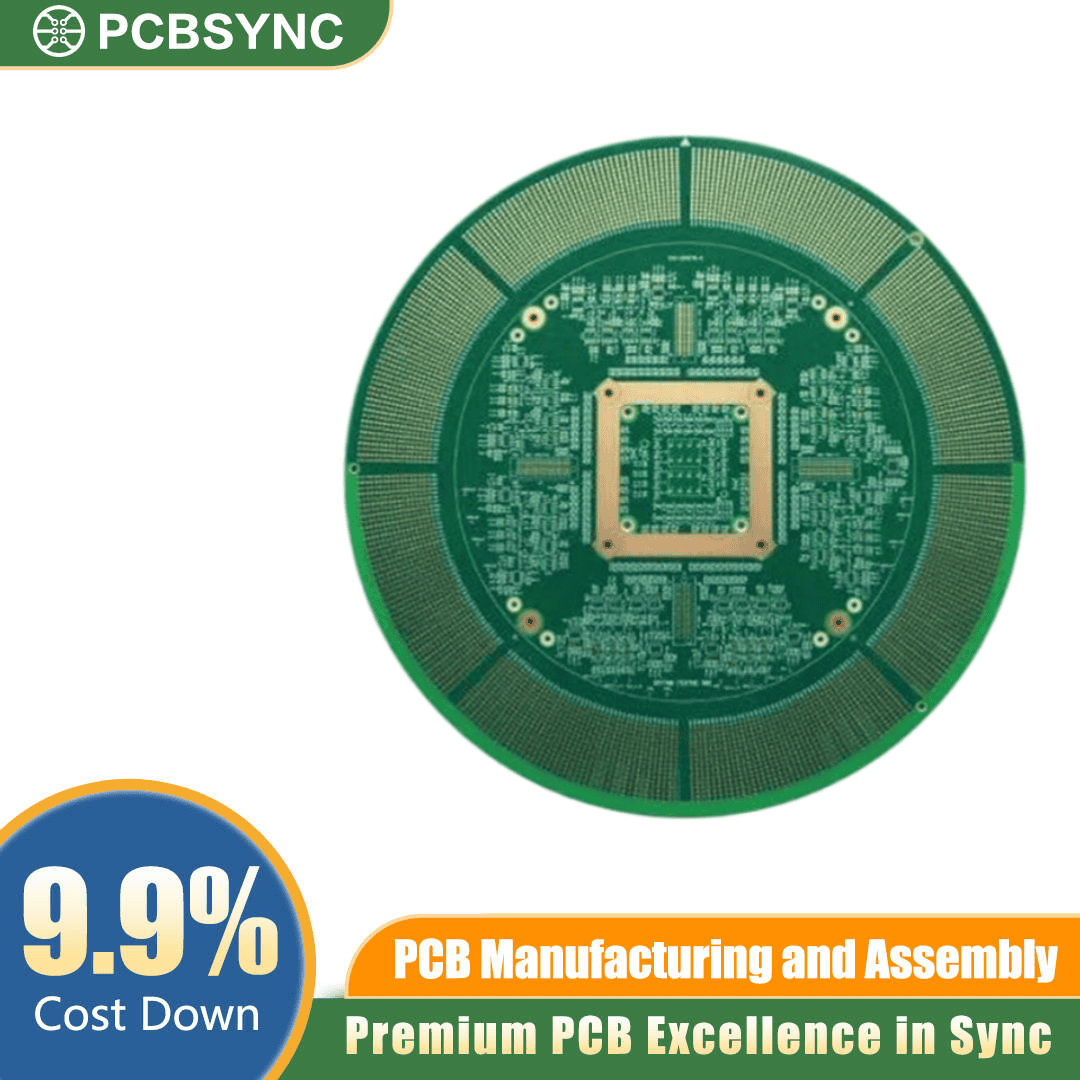

Buried Via HDI PCB – Outer-Layer Space-Saving Design

Product Details

The buried via HDI PCB provides an advanced hardware architecture for complex, space-constrained electronic designs. By connecting two or more inner layers without penetrating the outer surfaces, buried vias allow components to be placed directly over the via locations on the top and bottom layers. This high-density interconnect (HDI) approach dramatically increases routing density, reduces layer counts, and minimises signal loss in high-frequency applications.

Key Features of Buried Via HDI PCBs

Layer Count Capability: 4 to 32+ layers with precise sequential lamination.
Base Materials: High-Tg FR-4, halogen-free materials, and Rogers high-speed laminates.
Via Specifications: Laser-drilled microvias down to 0.1 mm, precisely filled and plated.
Fine Line/Space: Down to 2/2 mil (0.05/0.05 mm) trace width and spacing for maximum routing efficiency.
Surface Finishes: ENIG, ENEPIG, Immersion Silver, and OSP for reliable component soldering.
Manufacturing Standards: IPC-A-600 Class 2 and Class 3 compliance.

Applications

Telecommunications: High-speed routers, switches, and 5G base station basebands.
Computing & Storage: High-density motherboards, server cards, and solid-state storage modules.
Aerospace & Avionics: Compact, lightweight telemetry systems and flight control computers.
Medical Electronics: Portable diagnostic devices and implantable monitoring hardware.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Accelerate Your Next High-Density Design

Bring your high-density interconnect layouts to life with precision manufacturing that meets strict tolerance demands. Contact our engineering team today to review your Gerber files or request a custom quotation for your project.
