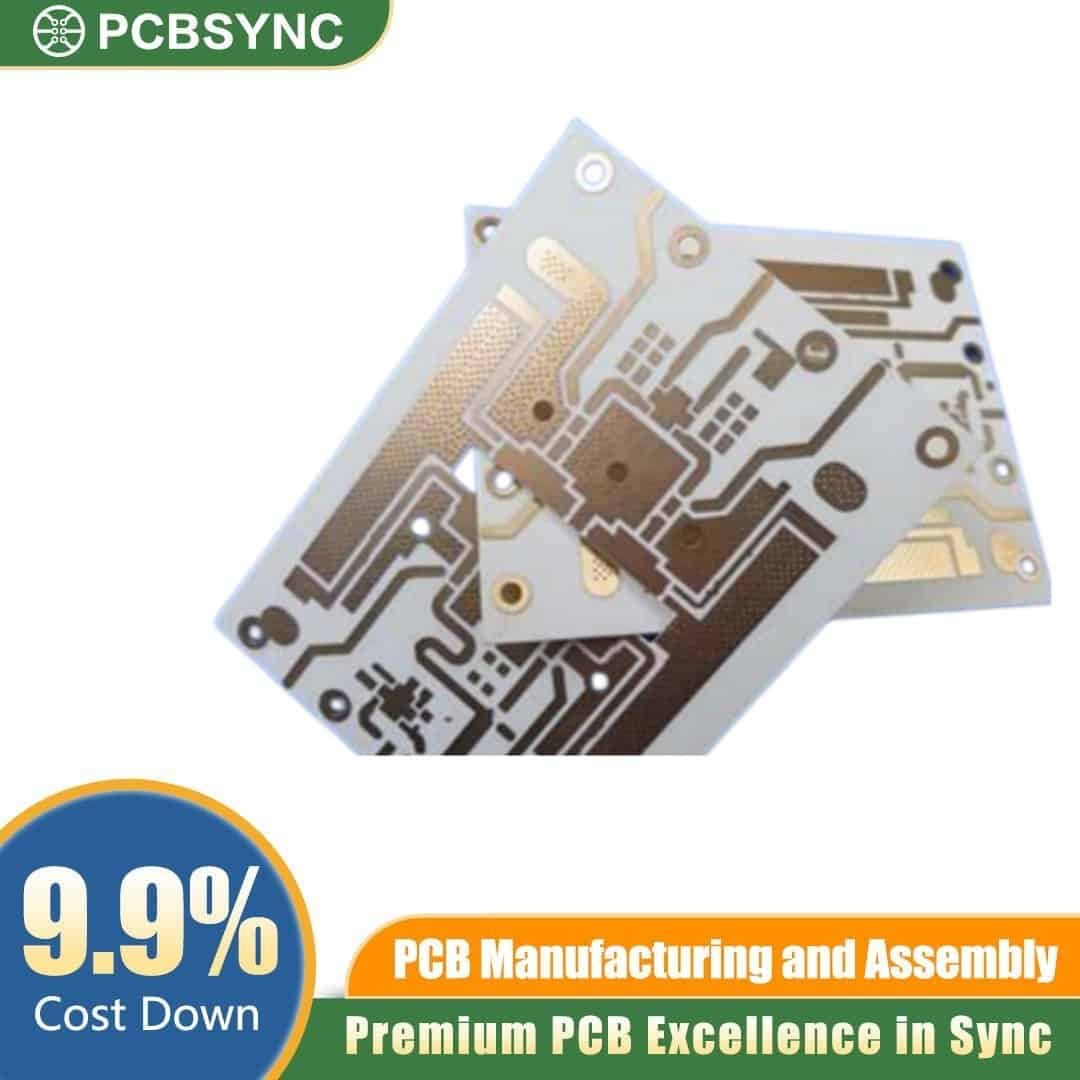

Arlon TC350 4-Layer PCB Thermal Management High Power LED Driver

Arlon TC350 4-Layer PCB | Thermal Management | High Power LED Driver

Request A Quote

Product Details

Maximize the efficiency and lifespan of your high-power electronics with the Arlon PCB TC350 4-Layer PCB. This specialized multi-layer printed circuit board is engineered for superior thermal management, making it the ideal choice for high-power LED drivers, power amplifiers, and automotive radar modules. Built using ceramic-filled PTFE woven fiberglass composites, it delivers an impressive thermal conductivity of 1.0 W/m-K, significantly reducing hot spots and ensuring stable electrical performance in high-temperature environments.

Key Features of Arlon TC350 4-Layer PCB

  • Material Base: Arlon TC350 ceramic-filled PTFE woven fiberglass.

  • Layer Count: 4-layer high-frequency multi-layer stackup.

  • Thermal Conductivity: 1.0 W/m-K for rapid heat dissipation.

  • Dielectric Constant ($D_k$): $3.50 \pm 0.05$ at 10 GHz for reliable signal integrity.

  • Dissipation Factor ($D_f$): Low loss tangent of 0.0022 at 10 GHz.

  • Copper Weight: Available in 1 oz, 2 oz, or heavy copper options based on power requirements.

  • Compliance: Manufactured to IPC-A-610 Class 2 or Class 3 standards; RoHS compliant.

Applications

  • High-Power LED Drivers: Advanced thermal dissipation for industrial, architectural, and automotive lighting systems.

  • Telecommunications: Base station power amplifiers, filters, and couplers.

  • Automotive Electronics: Radar sensors, power collision avoidance systems, and engine control units.

  • Aerospace & Defense: High-frequency avionic sub-systems requiring robust thermal management.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Request a Quote Today

Get in touch with our engineering team to discuss your specific Gerber files and stackup requirements. Contact PCBSYNC today to receive a comprehensive technical assessment and quote for your next manufacturing run.
