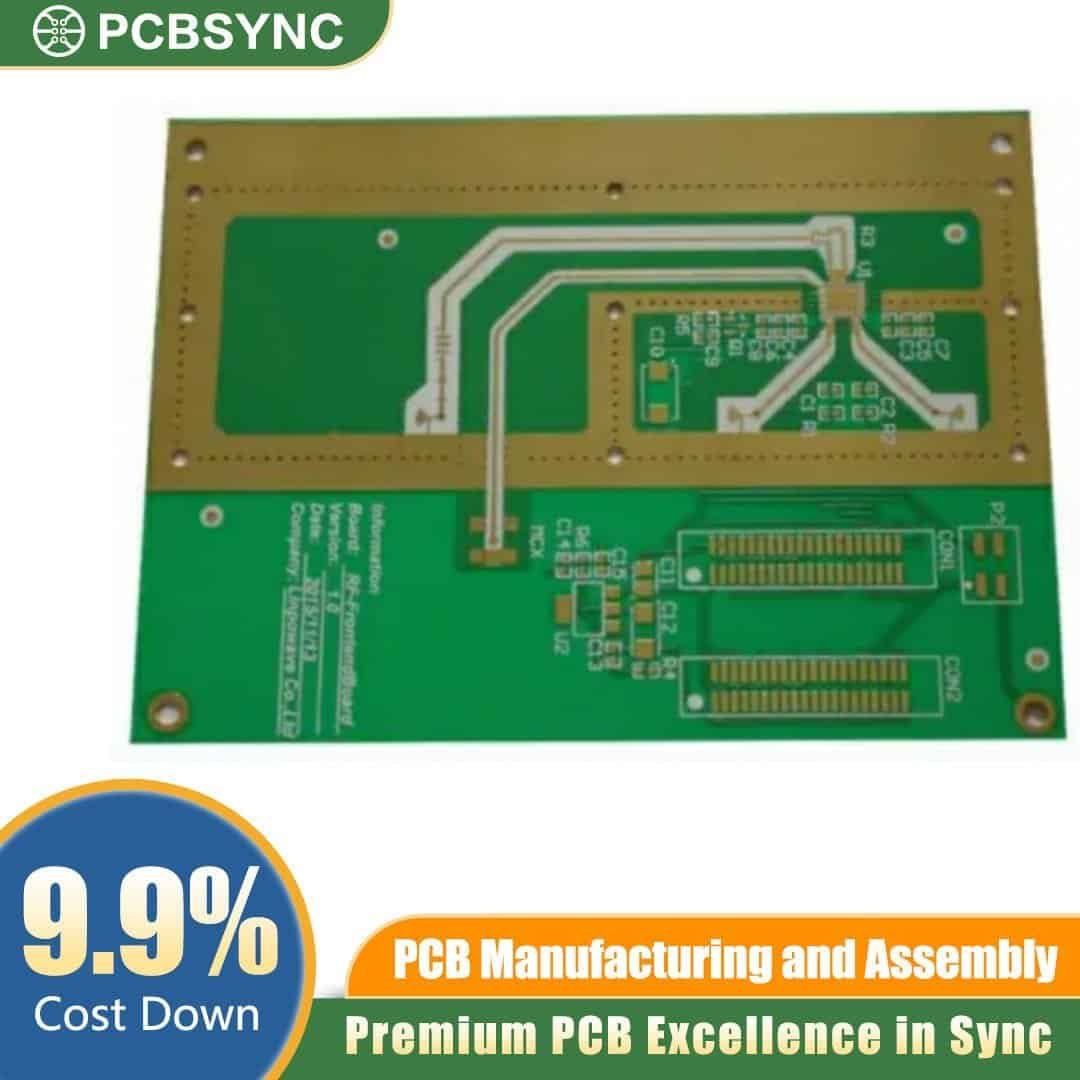

The RT duroid 6202 10-Layer Defense Radar Warning Receiver Board is a high-performance multilayer solution designed for complex RF and microwave signal processing. Specifically developed for defense-grade radar warning receivers (RWR), this board utilises Rogers RT/duroid 6202 high-frequency laminates to ensure exceptional dimensional stability and low dielectric loss. It is the ideal choice for engineers requiring a robust substrate that maintains electrical consistency across wide temperature fluctuations.
Key Features
-
Substrate Material: Rogers RT/duroid 6202 (PTFE glass-reinforced) for superior high-frequency performance.
-
Layer Count: 10-layer high-density interconnect (HDI) stackup for complex circuitry.
-
Board Thickness: 1.8mm finished thickness for enhanced mechanical rigidity.
-
Copper Weight: 1oz (35µm) outer layers for optimal current carrying and thermal dissipation.
-
Surface Finish: Immersion Gold (ENIG) for excellent solderability and oxidation resistance.
-
Dielectric Constant ($D_k$): $2.90 \pm 0.05$ at 10 GHz, ensuring precise signal timing.
-
Thermal Management: Low coefficient of thermal expansion (CTE) in the Z-axis for reliable plated through-hole performance.
Applications
The RT duroid 6202 10-Layer Defense Radar Warning Receiver Board is optimised for demanding environments, including:
-
Aerospace & Defense: Radar warning receivers (RWR), electronic warfare (EW) systems, and signal intelligence.
-
Telecommunications: High-speed digital backplanes and point-to-point microwave antennas.
-
Satellite Systems: Space-grade communication equipment and transceiver modules.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
For detailed technical consultations or to move your project into production, contact our engineering team today to request a formal quotation.
