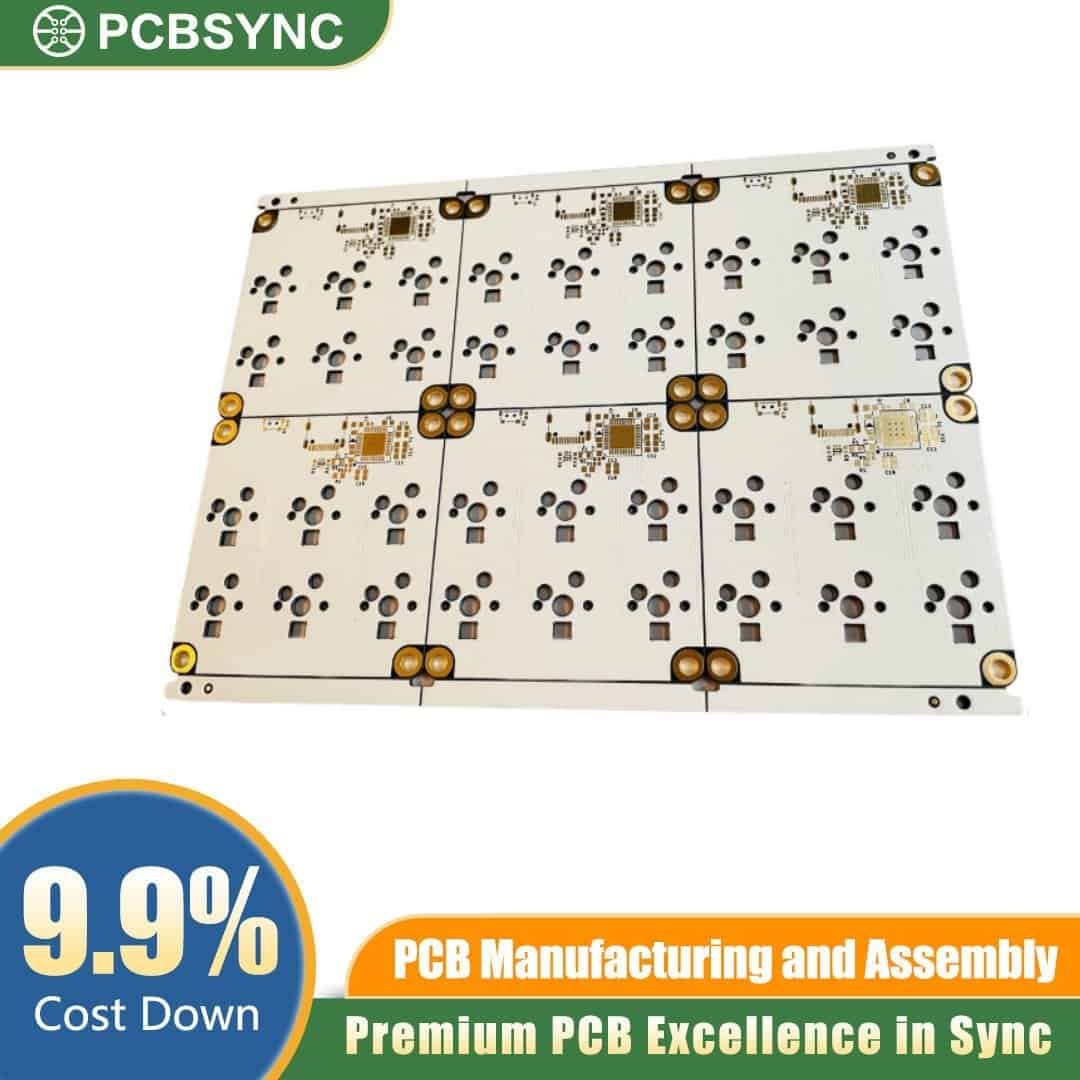

The Taconic RF-60 PCB 30mil High-Power RF Microwave Board is an advanced PTFE-based laminate tailored for high-frequency applications that demand excellent thermal management and low electrical loss. Designed for RF engineers and procurement managers in the telecommunications and aerospace sectors, this substrate provides the mechanical strength and electrical stability necessary for complex microwave circuitry. Its ceramic-filled composition ensures a low coefficient of thermal expansion (CTE), maintaining dimensional reliability across wide temperature fluctuations.
Key Features of Taconic RF-60 PCB 30mil
-
Substrate Material: Ceramic-filled PTFE (Polytetrafluoroethylene) organic laminate.
-
Dielectric Thickness: 30mil (0.76mm) nominal thickness for controlled impedance.
-
Dielectric Constant ($D_k$): Stable $6.15 \pm 0.15$ at 1.9 GHz, enabling circuit miniaturisation.
-
Dissipation Factor ($D_f$): Low loss tangent of 0.0028 at 1.9 GHz for maximum signal efficiency.
-
Thermal Conductivity: High thermal rating to dissipate heat effectively in high-power RF amplifiers.
-
Moisture Absorption: Extremely low moisture absorption rate (<0.02%), ensuring consistent performance in humid environments.
-
Compliance: Manufactured to IPC-A-600 Class 2/3 standards, RoHS and REACH compliant.
High-Power RF Microwave Board Applications
-
Telecommunications: Base station antennas, power amplifiers, and cellular repeaters.
-
Aerospace & Defence: Radar modules, satellite communication (SATCOM) systems, and navigation equipment.
-
Automotive: Advanced driver-assistance systems (ADAS) and radar-based sensors.
-
Industrial Electronics: High-frequency RFID readers, medical telemetry, and wireless power transmission.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
For tailored stackups, custom panelisation, or volume manufacturing schedules, contact our engineering team to request a comprehensive quote.
