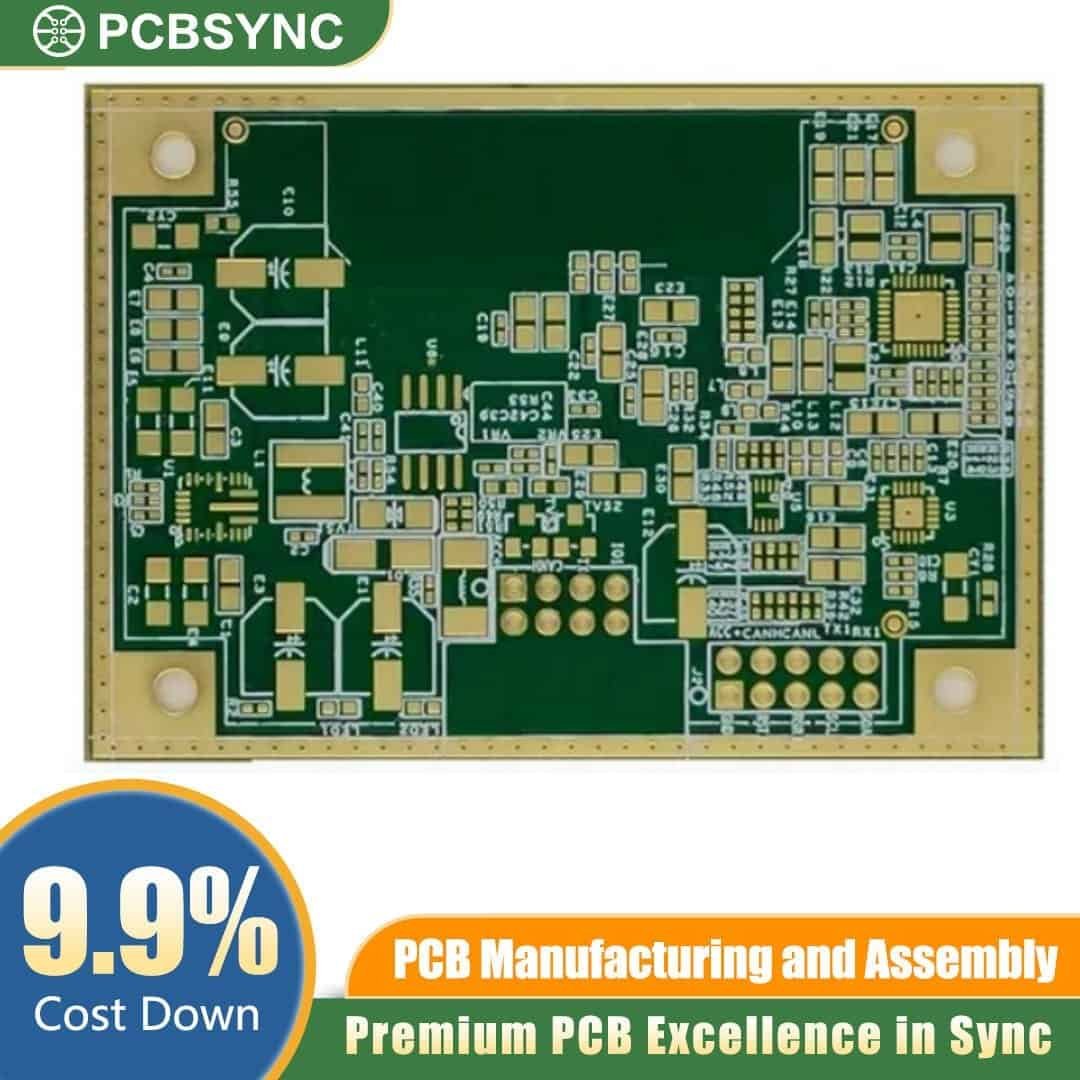

The RT duroid 6002 0.5mm 6-layer aerospace instrumentation board is a high-performance microwave material solution designed for complex multi-layer circuits. Engineers and procurement managers in the aerospace sector rely on this specific ceramic-PTFE composite for its excellent mechanical and electrical properties. By utilizing Rogers RT/duroid® 6002 laminate, this board ensures minimal signal loss and superior dimensional stability, even under fluctuating environmental conditions.
Key Features of RT duroid 6002
-
Material: Rogers RT/duroid 6002 high-frequency laminate.
-
Layer Count: 6-layer precision stack-up for complex signal routing.
-
Thickness: 0.5mm core thickness for compact, lightweight instrumentation.
-
Copper Weight: 1/2oz (18µm) base copper for fine-line circuit definition.
-
Surface Finish: Immersion Gold (ENIG) for superior solderability and oxidation resistance.
-
Thermal Stability: Extremely low coefficient of thermal expansion (CTE) in X, Y, and Z axes.
-
Dielectric Constant ($D_k$): $2.94 \pm 0.04$, providing consistent electrical performance.
Applications
The low-loss characteristics and thermal reliability of the RT duroid 6002 0.5mm 6-layer aerospace instrumentation board make it suitable for:
-
Phased array antennas and radar systems.
-
Spaceborne and airborne communication equipment.
-
Global Positioning System (GPS) antennas.
-
High-reliability power amplifiers and backplanes.
-
Satellite digital radio systems.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Contact the PCBSYNC technical team today to discuss your project requirements or request a comprehensive quote for your custom aerospace PCB designs.
