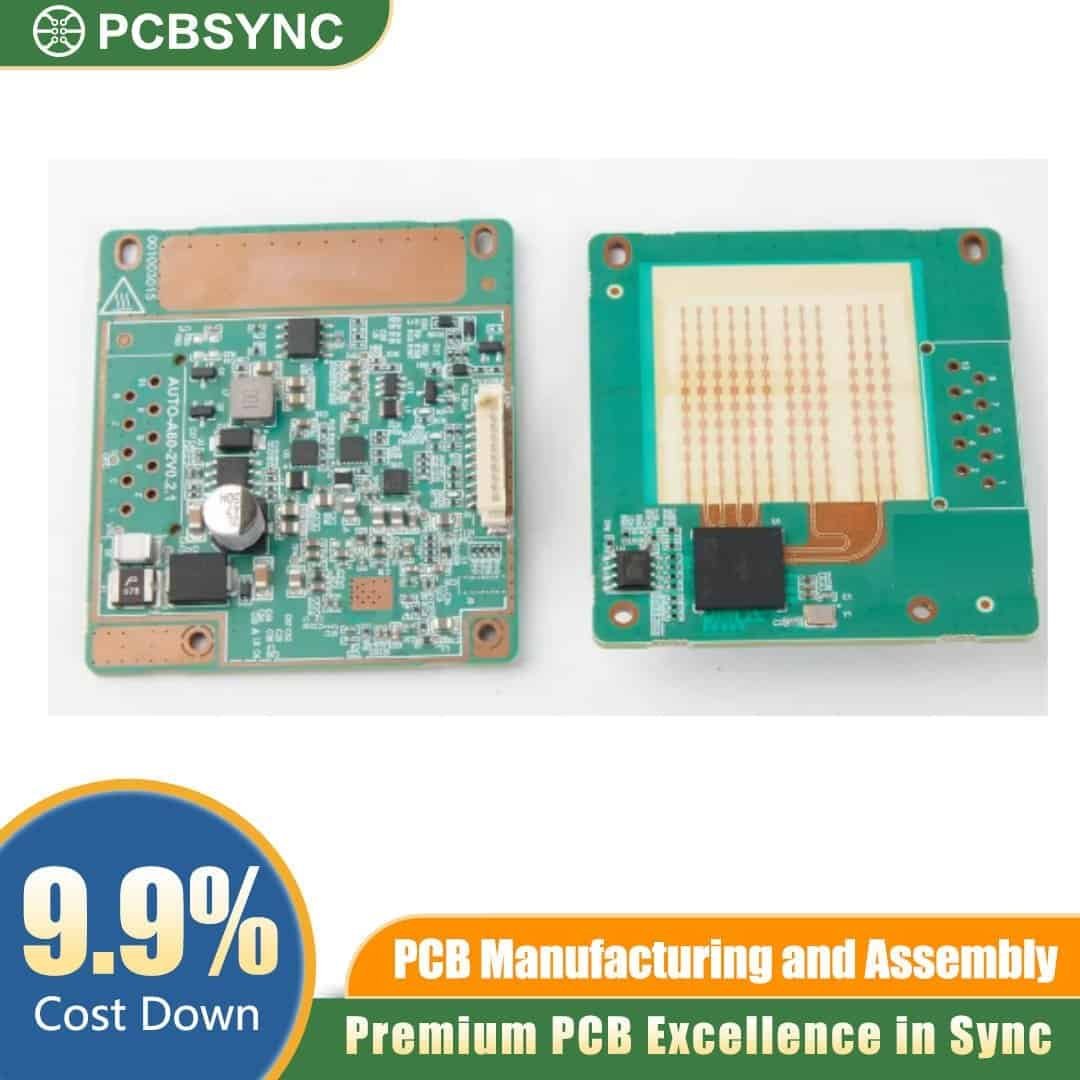

The Taconic PCB Drone UAV Radar Microwave RF Board is engineered to meet the strict electrical and mechanical demands of modern unmanned aerial vehicles and radar sub-systems. Utilizing advanced Taconic PTFE and ceramic-filled laminates, this high-frequency circuit board minimizes signal attenuation and maintains a stable dielectric constant across fluctuating temperatures. Designed for aerospace and defense applications, it provides the structural integrity and electrical precision required for complex microwave circuitry, ensuring reliable communication and target tracking.
Key Features of Taconic PCB Microwave RF Boards
-
Premium Substrate Material: Built on high-grade Taconic laminates (such as TLX, TLY, or RF series) featuring a low dissipation factor ($Df \le 0.002$) for minimal insertion loss.
-
Precise Impedance Control: Strict tolerance control ($\pm 5\%$) on microstrip and stripline designs to preserve signal integrity at microwave frequencies up to 77 GHz.
-
Excellent Thermal Conductivity: Ceramic-filled options offer superior heat dissipation, reducing thermal stress during continuous radar operation.
-
Advanced Surface Finishes: Available with ENIG, ENEPIG, or Immersion Silver to guarantee optimal solderability and prevent oxidation in harsh environments.
-
Strict Quality Compliance: Manufactured to IPC-A-600 Class 3 standards for high-reliability aerospace applications.
High-Frequency Radar and UAV Applications
-
UAV Collision Avoidance Systems: Essential for low-latency, high-frequency radar modules.
-
Military and Commercial Drones: High-bandwidth telemetry, communication links, and GPS antennas.
-
Microwave Transceivers: Base station antennas, satellite communication units, and RF power amplifiers.
-
Automotive Radar: 24GHz and 77GHz radar sensors for advanced driver-assistance systems (ADAS).
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Ready to bring your aerospace or defense project to life? Submit your Gerber files and material stack-up requirements to our engineering team today to request a quote or discuss your specific design tolerances.
