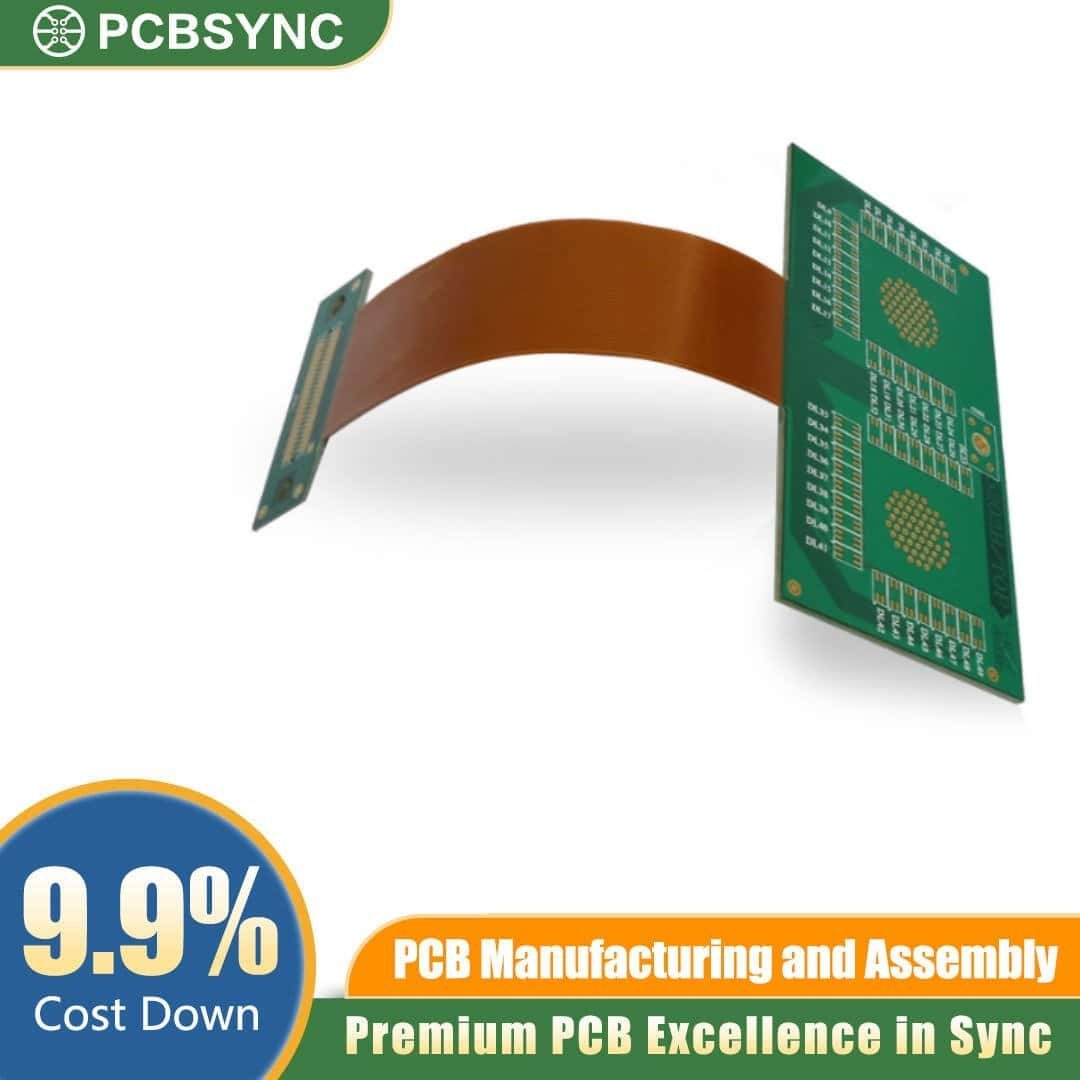

Custom Shape Stiffener Flex PCB – Precision Laser-Cut FR4 Profile

Product Details

Integrating a Custom Shape Stiffener Flex PCB into your assembly ensures structural integrity where flexible circuits interface with connectors or support heavy components. By utilizing precision laser-cutting technology, these FR4 profiles are shaped to exact design boundaries, delivering rigid reinforcement exactly where needed without compromising the overall bendability of the circuit. This localized support prevents trace fracturing and solder joint fatigue in high-stress areas.

Key Features of Laser-Cut FR4 Profiles

Material Composition: High-TG FR4 stiffeners (0.2mm to 1.6mm thickness options) bonded with thermosetting adhesive or pressure-sensitive tape (PSA).
Precision Registration: Advanced laser-cutting technology achieves profile tolerances down to $\pm 0.05\text{mm}$ for complex geometry and dense layouts.
Trace Protection: Zero edge burrs or micro-cracking, ensuring the structural integrity of the adjacent polyimide copper layers.
Compliance Standards: Manufactured in accordance with IPC-6013 class 2 and class 3 standards, fully RoHS and REACH compliant.

Applications

Dense Enclosures: Smart wearables, handheld medical diagnostic devices, and compact consumer electronics requiring non-standard profiles.
High-Reliability Interfaces: Multi-pin ZIF connector areas in automotive infotainment and industrial control panels.
Dynamic Flexing Systems: Aerospace avionics and robotics assemblies where specific zones must remain completely rigid while others flex continuously.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

For tailored mechanical reinforcement solutions, submit your Gerber files and panel layout requirements to our engineering team. Contact us today to request a technical review and a detailed quote for your next Flexible PCB project.
