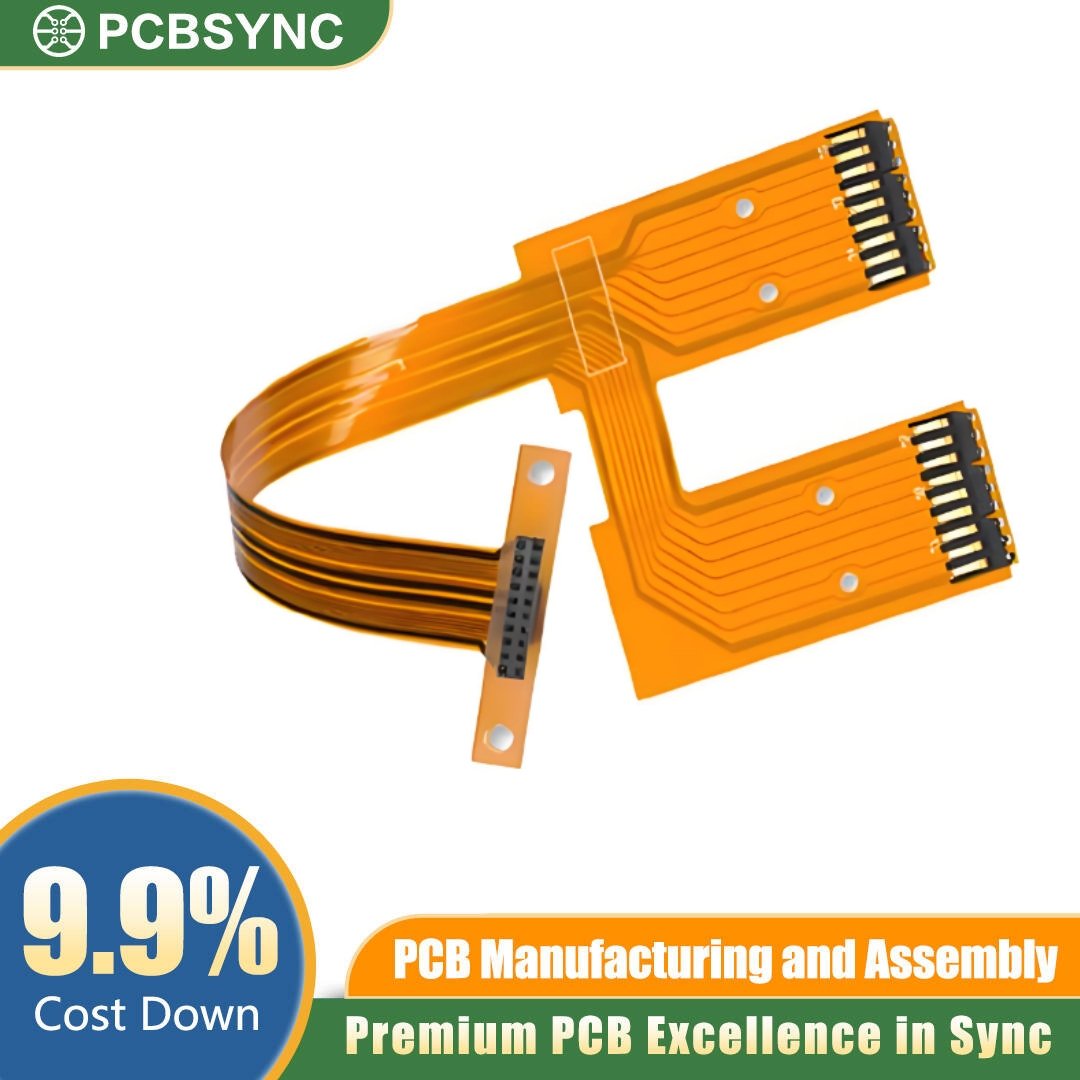

Double-Sided FPC Board – 1oz1oz Copper, Polyimide Coverlay Both Sides

Double-Sided FPC Board – 1oz/1oz Copper, Polyimide Coverlay Both Sides

Request A Quote

Product Details

The [Double-Sided FPC Board – 1oz/1oz Copper, Polyimide Coverlay Both Sides] provides a reliable, space-saving interconnect solution for complex electronic assemblies. Engineered for multi-directional flexing, this flexible printed circuit allows product developers to optimize internal routing while maintaining excellent electrical conductivity. It is ideal for modern compact devices that demand robust performance under constant mechanical stress.

Key Features of the Double-Sided FPC Board

  • Conductive Layer: Balanced 1oz/1oz ($35\ \mu\text{m}$) electro-deposited or rolled-annealed copper for optimal current capacity and flexibility.

  • Base Material: High-grade polyimide film ensuring superior thermal stability and structural integrity.

  • Dual-Sided Coverlay: Polyimide coverlay applied to both sides provides excellent environmental insulation and protects traces from mechanical wear.

  • Surface Finish Options: ENIG (Electroless Nickel Immersion Gold) or Immersion Tin for enhanced solderability and oxidation resistance.

  • Pitch & Tolerance: Fine-pitch trace capabilities suitable for high-density surface mount technology (SMT).

Applications

  • Aerospace & Automotive: Dashboard displays, sensor clusters, and compact steering column wiring harnesses.

  • Medical Devices: Wearable diagnostic monitors, ultrasound probes, and implantable electronics.

  • Consumer Electronics: Smartphone hinge mechanisms, digital cameras, and laptop display interconnects.

  • Industrial Automation: Robotic arm joints, moving print heads, and high-vibration control modules.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Ready to integrate high-reliability flexible circuitry into your next project? Contact our engineering team today to discuss your design requirements or request a comprehensive quote.
