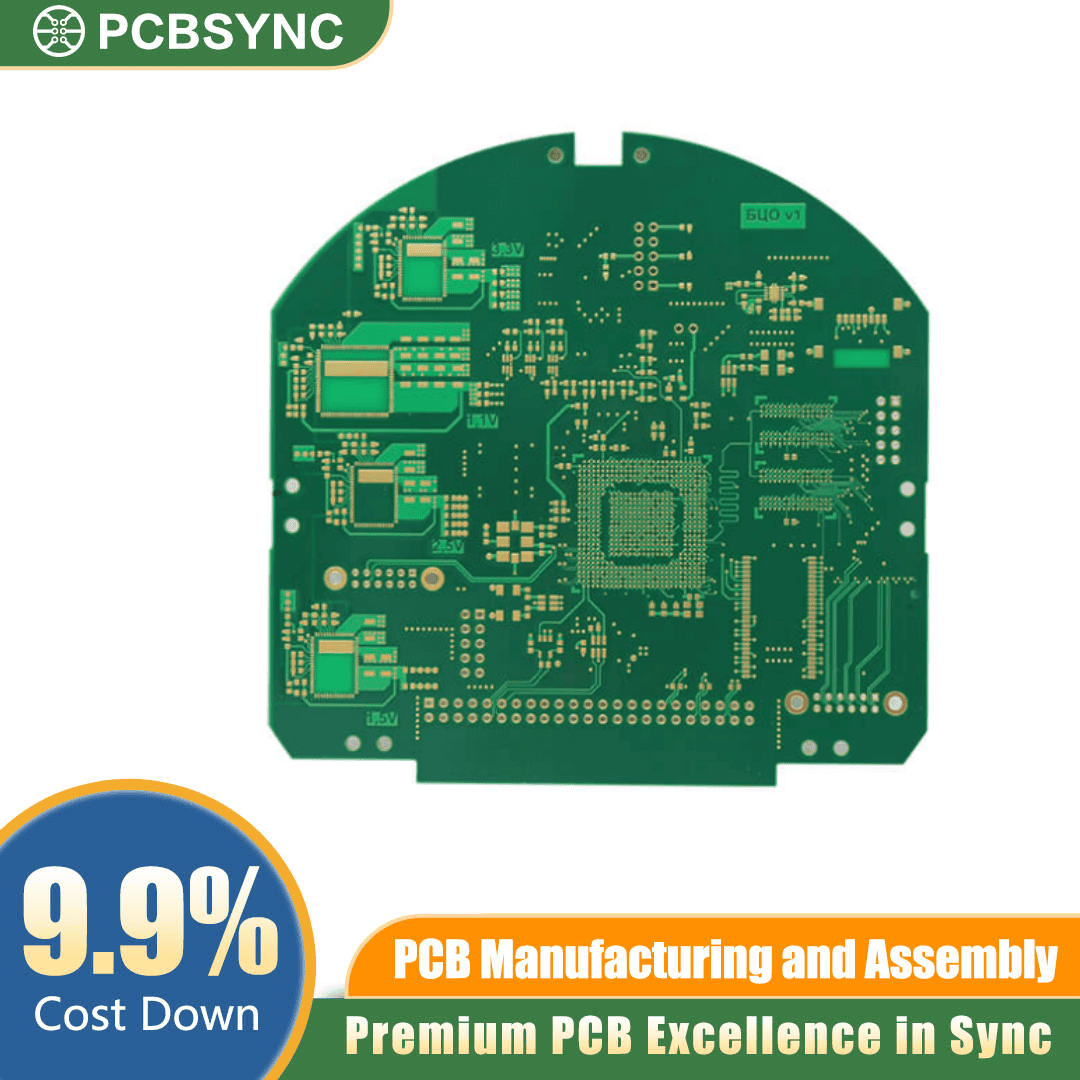

Buried Via HDI PCB for High-Speed – Clean Power Planes

Product Details

The Buried Via HDI PCB for High-Speed architectures delivers the advanced thermal management and electrical performance required by next-generation digital systems. As routing densities increase and component sizes shrink, maintaining excellent signal integrity becomes a critical challenge. This high-density interconnect board utilises hidden via structures to free up valuable surface layer real estate, allowing for tighter component placement and shorter trace routing. By isolating internal layer connections, it minimises parasitic capacitance and cross-talk, making it an essential foundation for complex processing units and high-frequency communication modules.

Key Features of Buried Via HDI PCB for High-Speed Designs

Advanced Blind and Buried Via Architecture: Maximises routing density across multi-layer stack-ups without compromising surface area.
Optimised Clean Power Planes: Dedicated internal power and ground layers lower loop inductance and drastically reduce power distribution network (PDN) noise.
High-Frequency Material Compatibility: Available in low-loss FR-4, Rogers, and Panasonic Megtron laminates to match precise dielectric requirements.
Fine Pitch Support: Accommodates high-pincount BGAs and micro-BGA components down to 0.4 mm pitch.
Controlled Impedance: Tight tolerance trace geometry matching ( $\pm 5\%$ ) for single-ended and differential signaling pairs.
Strict Quality Compliance: Manufactured to IPC Class 2 and Class 3 standards for long-term operational reliability.

Applications

Telecommunications: High-speed routers, network switches, and 5G base station basebands.
Computing & Storage: Server motherboards, high-performance computing (HPC) clusters, and solid-state drive (SSD) controllers.
Aerospace & Defence: Compact avionics processing units, radar imaging systems, and telemetry modules.
Medical Electronics: High-resolution diagnostic imaging hardware and patient monitoring systems.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

For tailored technical advice or to submit your Gerber files for a detailed engineering review, contact our technical sales team or request a quote online today.
