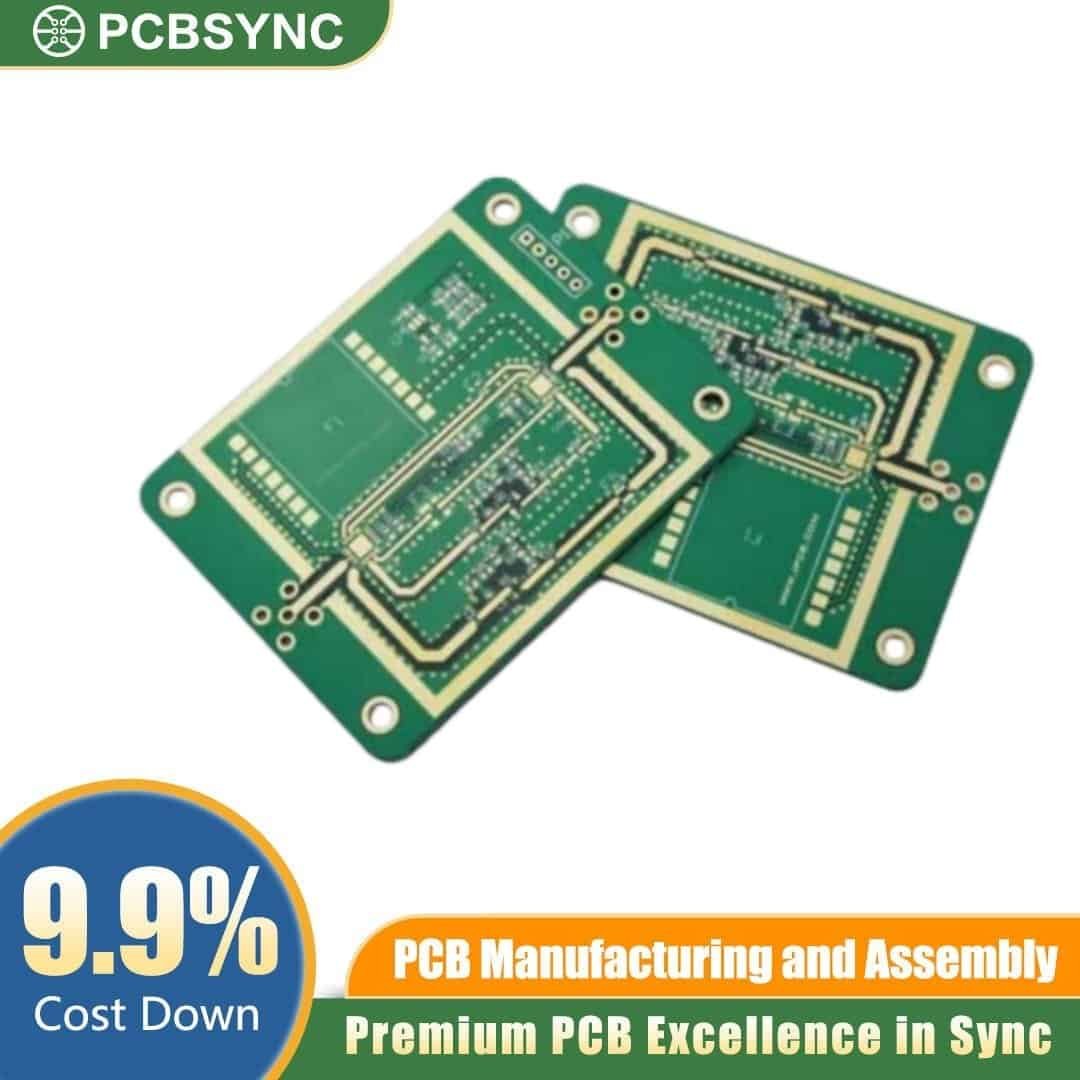

Variable-Depth Blind Via HDI PCB – Multi-Layer Microvia

Product Details

Hardware engineers designing miniaturised, high-speed devices require advanced interconnection strategies. The Variable-Depth Blind Via HDI PCB delivers exactly that, enabling multi-layer microvia integration to resolve extreme routing constraints. By incorporating blind vias at varying depths, this board frees up vital real estate on outer and inner layers, reducing overall layer count and improving signal integrity for dense components like fine-pitch BGAs.

Key Features of the Variable-Depth Blind Via HDI PCB

Variable-Depth Microvias: Connect specific internal layers without penetrating the entire board stack-up.
Sequential Lamination: Supports complex build-ups (e.g., 2+N+2, 3+N+3) and Any-Layer structures for aggressive routing demands.
Enhanced Signal Integrity: Shorter via paths minimise parasitic capacitance and inductance, essential for high-speed digital circuits.
Advanced Materials: Compatible with standard FR4, halogen-free, and high-Tg laminates for demanding thermal environments.
Tight Tolerances: Precision laser drilling ensures accurate microvia registration down to 3 mil (75 µm).

Applications

This multi-layer microvia architecture is specified for industries where space, weight, and performance are critical:

Telecommunications and 5G networking infrastructure
Wearable technology and compact IoT devices
Advanced driver-assistance systems (ADAS) in automotive electronics
Medical imaging and diagnostic equipment

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Submit your Gerber files to our engineering team today to review your stack-up requirements and request a quote.
