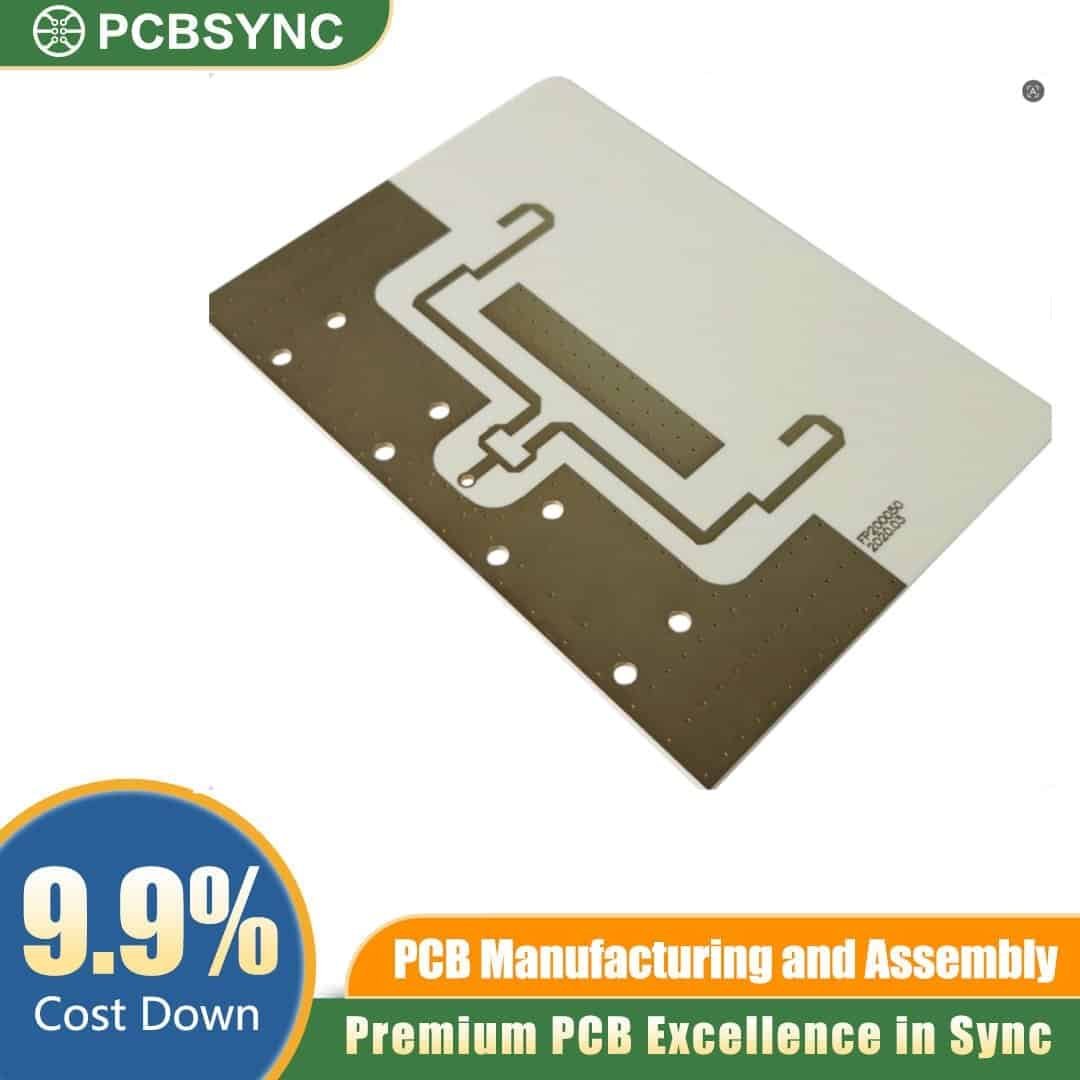

Engineered for demanding RF and microwave applications, the RO4835T 0.6mm 1oz ENIG 2-Layer Thin High-Frequency PCB from PCBSync delivers exceptional electrical performance, dimensional stability, and long-term reliability. Built on Rogers Corporation’s industry-leading RO4835T laminate, this thin, low-loss circuit board is purpose-built for engineers designing 5G infrastructure, automotive radar, satellite communications, and high-speed wireless systems where signal integrity is non-negotiable.
Why Choose RO4835T Laminate?
RO4835T is a hydrocarbon ceramic-filled laminate offering a stable dielectric constant (Dk) of 3.33 and an exceptionally low dissipation factor (Df) of 0.0037 at 10 GHz. Compared to standard FR-4, RO4835T dramatically reduces signal loss at GHz frequencies, ensuring cleaner transmission, tighter impedance control, and consistent phase performance across wide temperature ranges. Its enhanced oxidation resistance significantly extends service life in high-temperature environments — a critical advantage for outdoor antennas and aerospace assemblies. Lead-free process compatible and UL 94 V-0 rated, RO4835T meets the stringent demands of modern RF design while remaining compatible with standard FR-4 PCB fabrication processes for cost-effective production.
Product Specifications
| Parameter |
Specification |
| Base Material |
Rogers RO4835T |
| Layer Count |
2 Layers |
| Board Thickness |
0.6 mm |
| Copper Weight |
1 oz (35 µm) |
| Surface Finish |
ENIG (Electroless Nickel Immersion Gold) |
| Dielectric Constant (Dk) |
3.33 @ 10 GHz |
| Dissipation Factor (Df) |
0.0037 @ 10 GHz |
| Thermal Conductivity |
0.66 W/m/K |
| Glass Transition (Tg) |
>280°C |
| Flammability Rating |
UL 94 V-0 |
ENIG Surface Finish for Superior RF Performance
The Electroless Nickel Immersion Gold (ENIG) finish provides a perfectly flat, highly solderable surface ideal for fine-pitch components, BGA packages, and wire bonding. ENIG offers outstanding corrosion resistance, a 12-month shelf life, and consistent electrical performance — making it the preferred choice for high-frequency and high-reliability applications where surface flatness directly impacts insertion loss and impedance accuracy.
Ideal Applications
This 0.6mm thin RO4835T high-frequency PCB is engineered for performance-critical use cases including:
- 5G base stations and small-cell antennas
- 76–81 GHz automotive radar modules and ADAS sensors
- Satellite communications and phased-array antennas
- LNBs, point-to-point microwave radios, and backhaul systems
- IoT gateways and wireless infrastructure operating in the GHz range
- Aerospace, defense, and test & measurement instrumentation
Manufactured to Aerospace-Grade Standards at PCBSync
At PCBSync, every Rogers high-frequency PCB is fabricated under IPC Class 2/3 standards in our ISO 9001, ISO 14001, IATF 16949, and UL-certified facility. Our experienced RF engineering team supports controlled impedance to ±5%, precision dielectric thickness control, laser-drilled microvias, and tight-tolerance routing down to 3/3 mil. Each board ships with full electrical testing, AOI inspection, and a detailed quality report. We offer transparent pricing, low minimum order quantities, DFM review at no charge, and rapid turnaround from prototype to volume production.
Order Your RO4835T High-Frequency PCB Today
Upload your Gerber files for an instant online quote. Our team reviews every design, confirms Rogers RO4835T material availability in real time, and ships globally with DHL, FedEx, and UPS express options. Trusted by RF engineers worldwide — PCBSync is your source for premium Rogers high-frequency PCB manufacturing.
