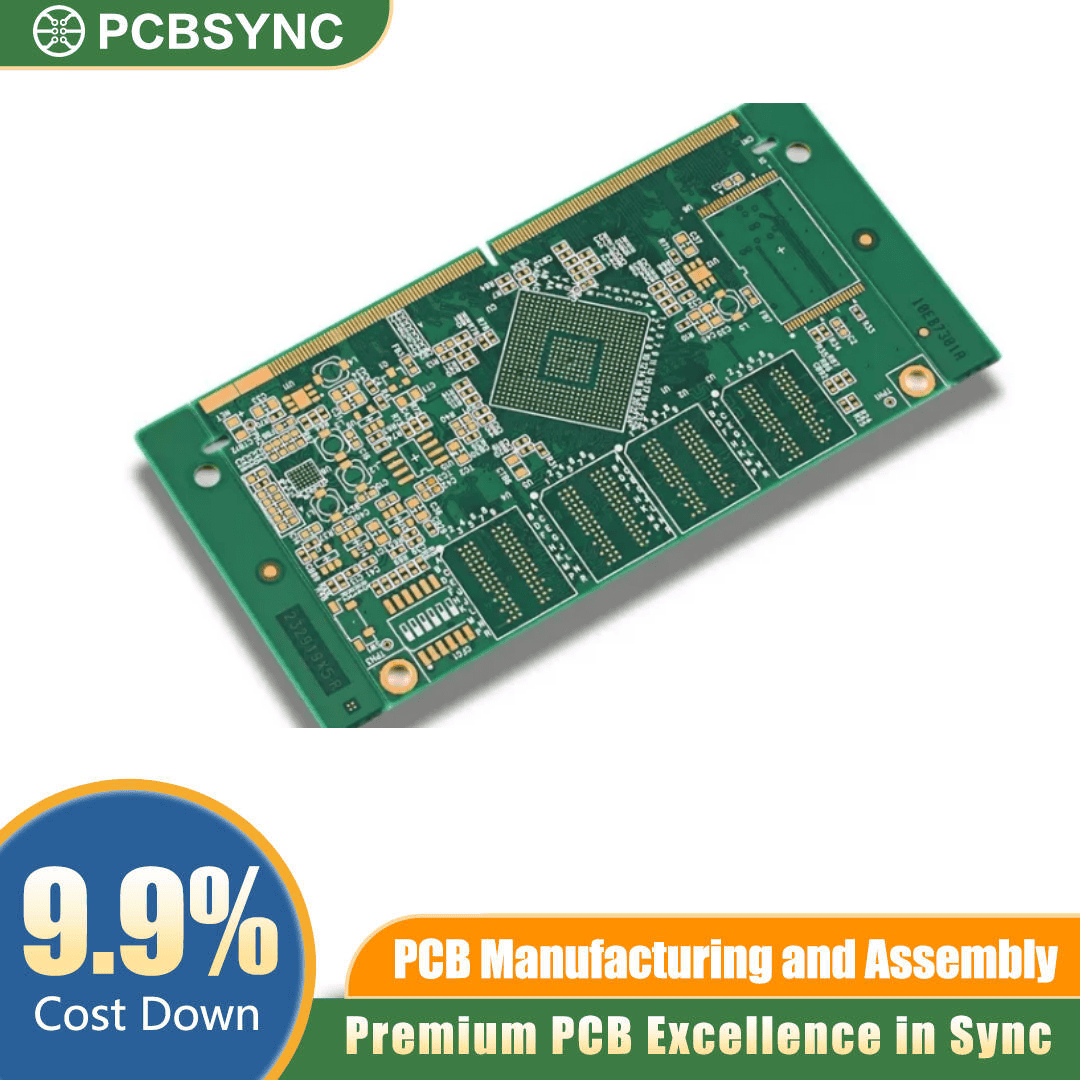

Buried Via HDI PCB for Servers – Dense Layer Routing

Product Details

The Buried Via HDI PCB for Servers is an enterprise-grade printed circuit board engineered specifically for high-density routing in modern data centres, cloud computing infrastructure, and high-performance computing (HPC) platforms. As server architectures demand faster processing speeds and smaller footprints, this board utilizes advanced HDI PCB technology to maximize routing space across complex multilayer stackups. By integrating buried and blind vias, it eliminates stub-induced signal reflections and significantly reduces electromagnetic interference (EMI) in high-speed digital designs.

Key Features of the Buried Via HDI PCB for Servers

Advanced Via Architecture: Implements sequential lamination with buried and blind vias down to 0.1 mm for ultra-dense interconnects.
Premium Substrates: Built with high-Tg, low-loss materials (e.g., Isola, Panasonic Megtron) to ensure thermal stability under continuous server loads.
Fine Line and Space: Supports line width and spacing down to 3/3 mil ( $75\ \mu\text{m}$ ) to facilitate high pin-count BGA pitches.
Controlled Impedance: Strict $\pm 10\%$ (or $\pm 5\%$ upon request) impedance tolerances for flawless high-frequency differential signaling.
Surface Finish Options: Available in ENIG, ENEPIG, or Immersion Silver for optimal solderability and long-term joint reliability.

Applications

Enterprise Servers: Ideal for blade servers, rack-mount storage arrays, and cloud computing architecture.
Networking Hardware: High-speed routers, switches, and 5G telecommunications infrastructure.
Data Centres: Mainboards for AI acceleration modules and complex graphics processing clusters.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Ready to scale your next-generation server architecture? Contact our engineering team or request a comprehensive quote today.
