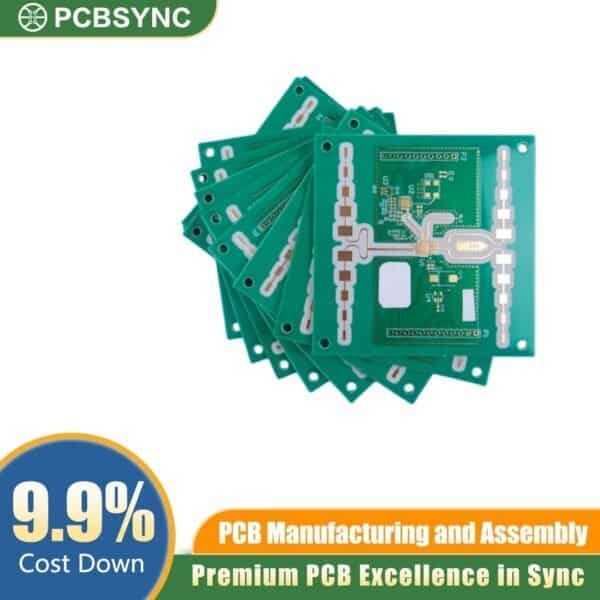

The Arlon LEO Satcom PCB is a high-reliability, 4-layer antenna array designed specifically for low Earth orbit (LEO) satellite communication systems and ground terminals. Engineered to meet the strict phase-stability requirements of next-generation aerospace networks, this board utilizes premium Arlon CLTE-AT laminate. With a controlled dielectric constant of 3.0, it ensures minimal signal distortion and optimal thermal management across extreme temperature fluctuations. This advanced substrate makes it an indispensable component for RF engineers and procurement managers who require strict impedance control and low insertion loss in high-frequency satellite transceivers.

Key Features of Arlon LEO Satcom PCB

• Advanced Materials: Constructed with Arlon CLTE-AT microglass-reinforced PTFE laminates for superior dimensional stability.

• Optimized Dielectric Properties: Features a stable DK of 3.0 and low dissipation factor (DF) to ensure peak performance in Ku-band and Ka-band frequencies.

• 4-Layer Stackup: Configured as a highly integrated 4-layer antenna array, optimizing space and routing efficiency for compact satcom hardware.

• Thermal Reliability: Low coefficient of thermal expansion (CTE) matching copper prevents delamination during rigorous thermal cycling.

• Precision Manufacturing: Tight tolerance mechanical drilling and laser imaging ensure exact patch element registration.

Applications

• LEO Satellite Constellations: On-board transponders, phased array antennas, and telemetry communication modules.

• Ground Stations & Terminals: VSAT terminals, mobile tracking antennas, and gateway infrastructure.

• Aerospace & Defense: Airborne radar systems, electronic warfare modules, and high-speed telemetry.

• Commercial Microwave Link: High-capacity backhaul networks and point-to-point microwave communication.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Request an RFQ

Ready to integrate specialized RF laminates into your next aerospace project? Contact our engineering team today to review your stackup requirements or request a comprehensive quote for your custom manufacturing run.
