HDI PCB Layout Service – Fine-Pitch BGA Fanout Design

HDI PCB Layout Service – Fine-Pitch BGA Fanout Design

Request A Quote

Product Details

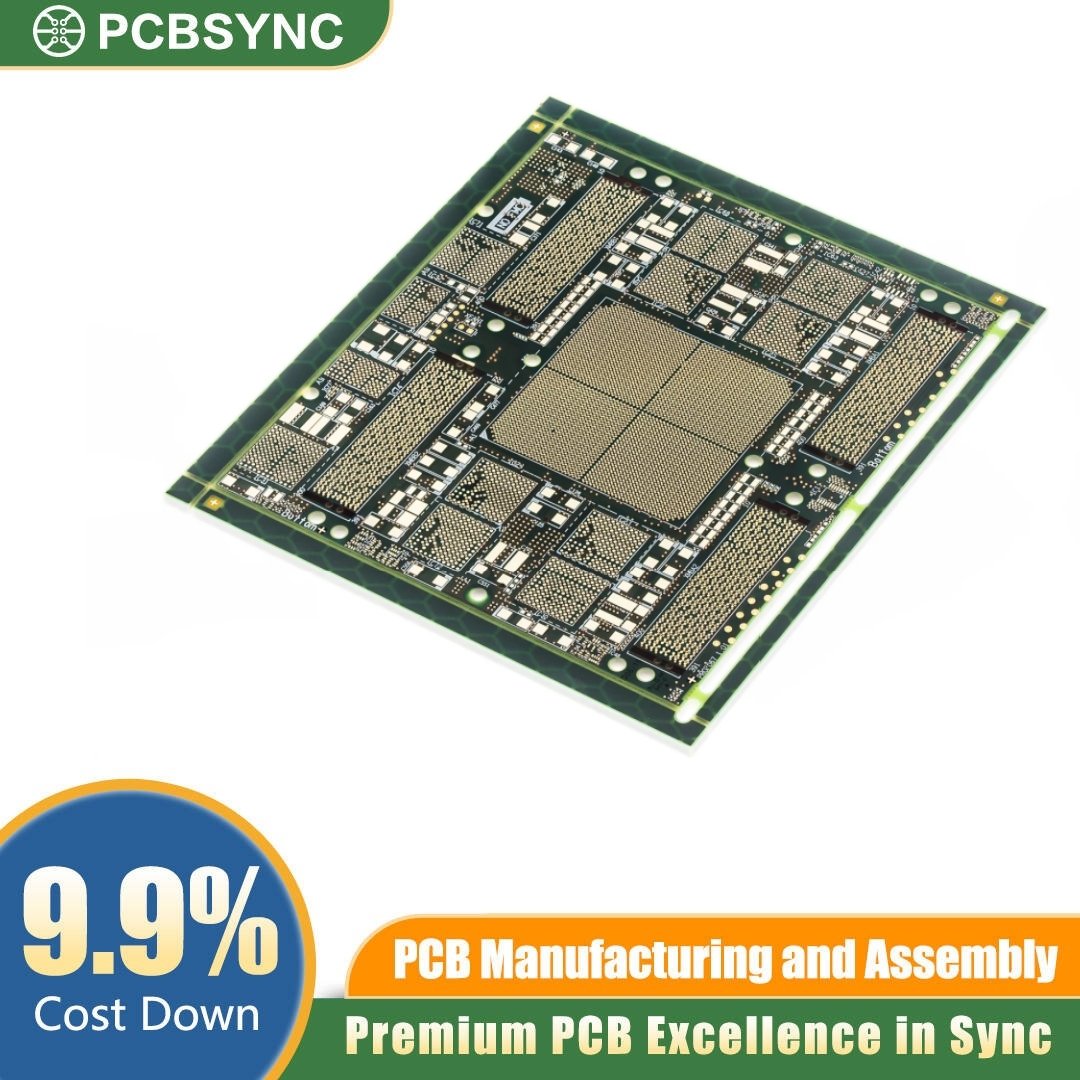

Overcome the challenges of modern electronics miniaturisation with our professional HDI PCB layout service. Engineered for developers integrating advanced chipsets, this specialised design service handles complex fine-pitch BGA fanout design and dense component placement. We translate your schematics into reliable, high-density layouts optimized for seamless fabrication and automated assembly.

Key Features

  • Advanced Via Technologies: Expert routing using microvias, stacked vias, staggered vias, and via-in-pad structures down to 0.1mm.

  • Fine-Pitch BGA Routing: Precise escape routing and fanout solutions for BGAs with pitches under 0.5mm.

  • Controlled Impedance & SI: Strict adherence to high-speed differential pair routing, length matching, and crosstalk mitigation rules.

  • Multi-Layer Stackup Optimisation: Efficient layer planning up to 32+ layers utilizing ultra-thin core and prepreg materials.

  • DFM and DFA Compliance: Layouts designed strictly to IPC-Class 2/3 guidelines to eliminate manufacturing bottlenecks and assembly defects.

Applications

Our layout capabilities support high-performance applications across multiple fast-evolving sectors:

  • Consumer Electronics: Wearables, smartphones, and IoT modules requiring compact form factors.

  • Computing & Telecom: High-speed network routers, processing units, and server motherboards.

  • Industrial Automation: Advanced robotics control boards and high-density sensor arrays.

  • Automotive Systems: Driver-assistance systems (ADAS) and central telemetry units.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Partner with our engineering team to reduce design iterations and accelerate your time-to-market. Contact PCBSYNC today to request a quote on your next high-density design project.
