Buried Via HDI Backplane PCB – High Layer-Count Board

Buried Via HDI Backplane PCB – High Layer-Count Board

Request A Quote

Product Details

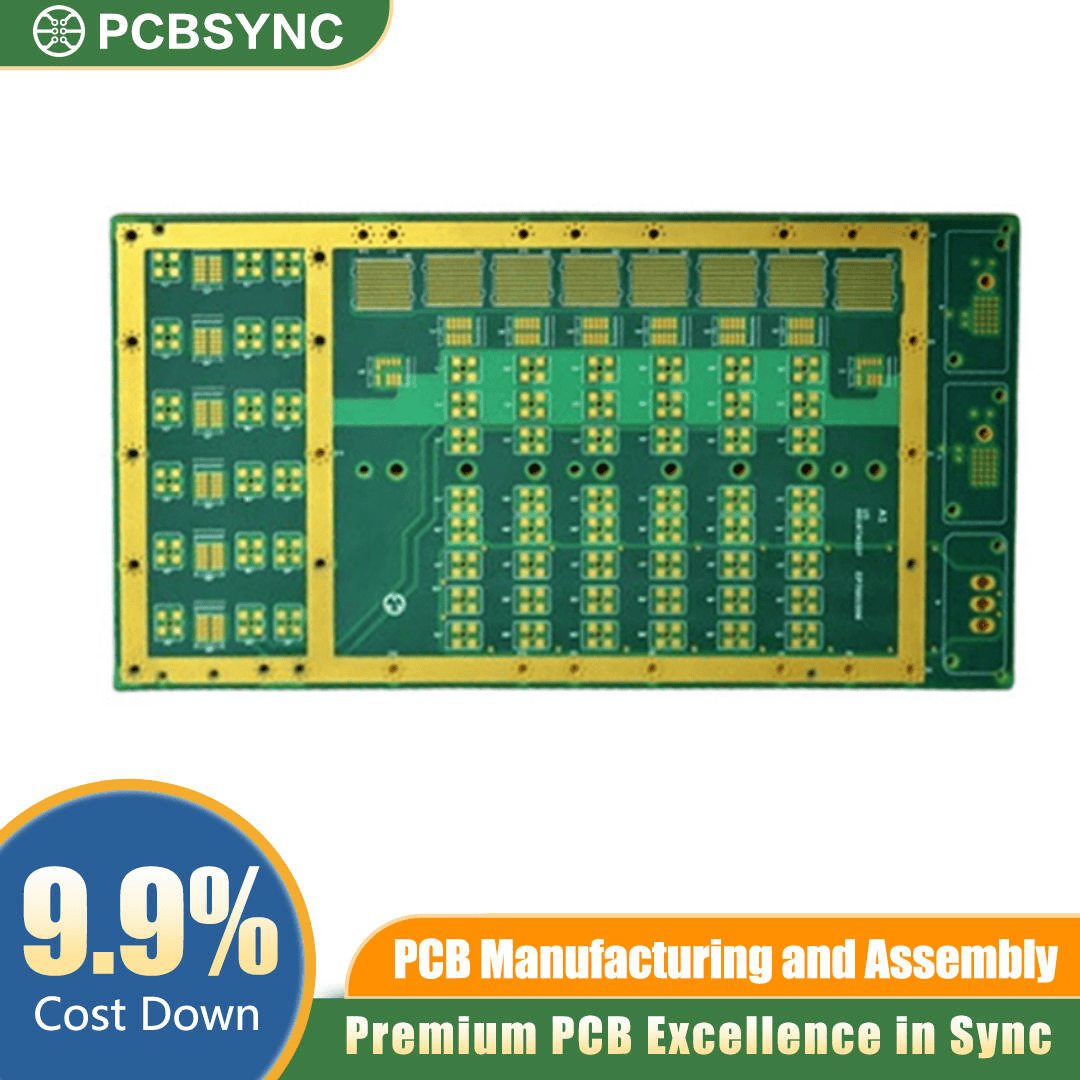

The Buried Via HDI Backplane PCB serves as the backbone for complex, data-heavy systems that require robust high layer-count architectural integrity. Designed to support massive data throughput and dense component arrays, this backplane board integrates advanced blind and buried via structures. It effectively eliminates stubs, reduces signal loss, and maximises routing space across internal layers. Hardware developers and system architects can rely on this board to maintain seamless structural and electrical performance in high-speed computing environments.

Key Features of the Buried Via HDI Backplane PCB

  • Advanced Architecture: Multi-layer construction up to 32+ layers with controlled impedance matching.

  • HDI Technology: Utilises precise blind and buried vias alongside microvias to maximise routing density. Learn more about our technical capabilities for HDI PCB.

  • Premium Substrates: Built with high-Tg materials (such as Isola, Rogers, or Panasonic Megtron) for superior thermal stability.

  • Thick Board Capabilities: Aspect ratios optimized for heavy backplane configurations exceeding 3.0 mm thickness.

  • Surface Finishes: Available in ENIG, ENEPIG, or Immersion Silver to ensure robust, long-term solder joint reliability.

  • Compliance: Manufactured strictly in accordance with IPC-A-600 Class 2 or Class 3 standards.

Applications

  • Telecommunications: High-speed routers, switching hubs, and base station central units.

  • Data Centres: Server blade chassis, enterprise storage arrays, and cloud computing infrastructure.

  • Industrial Automation: High-reliability control racks, central processing hubs, and modular test equipment.

  • Medical Systems: Advanced diagnostic imaging equipment and large-scale patient monitoring mainframes.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Secure Your High-Density Solution

Optimise your next system build with a stable, high layer-count infrastructure. Get in touch with our engineering team today to review your Gerber files, discuss stack-up specifications, or request a comprehensive quote.
