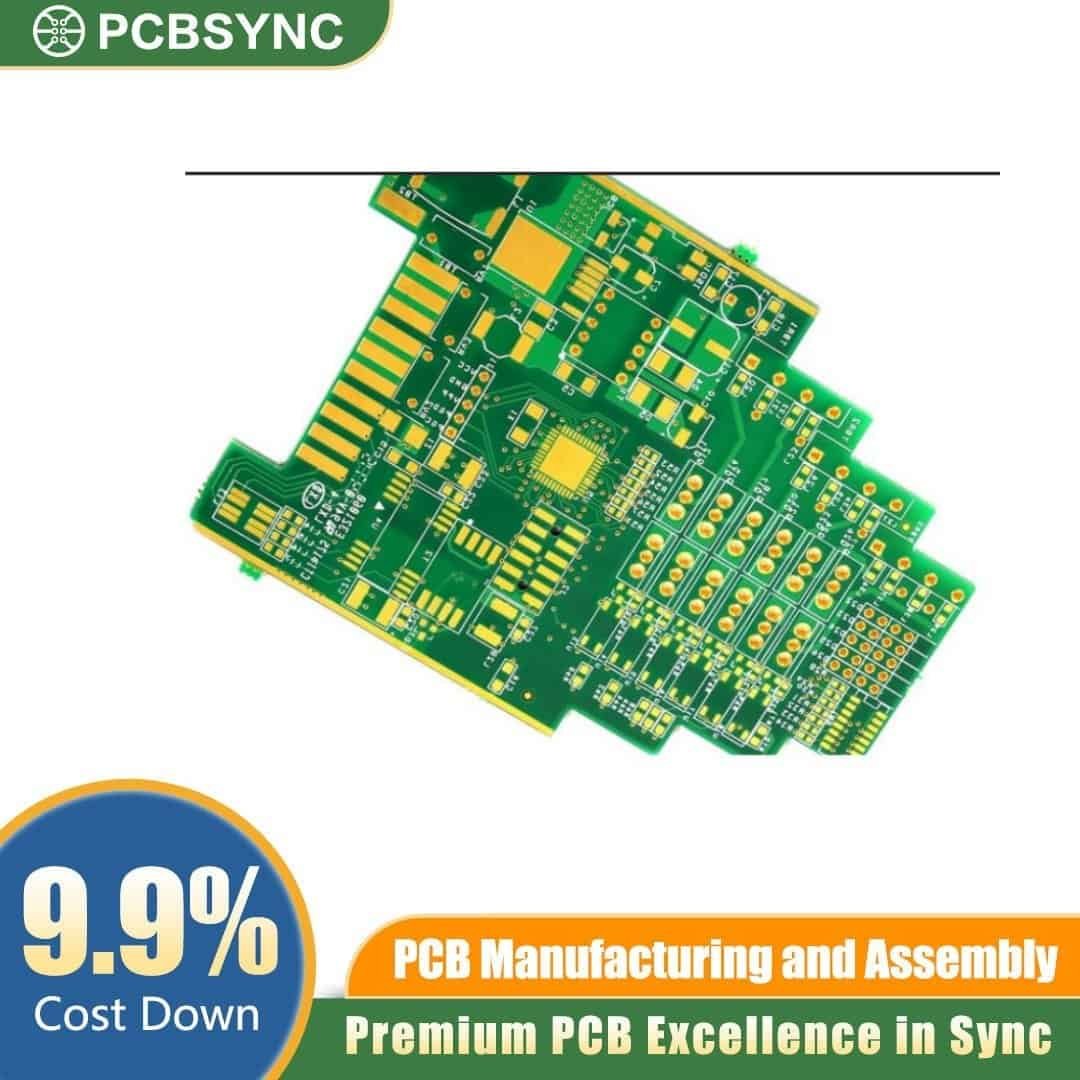

The Arlon 37N polyimide laminate 8-layer multilayer PCB is engineered to withstand the most demanding thermal and mechanical environments. Designed for high-reliability applications, this board utilizes a pure, non-methylenedianiline (non-MDA) polyimide resin system. The 8-layer configuration provides optimal signal integrity and power distribution for complex circuitry, ensuring consistent performance where standard FR-4 materials fail. Engineers and procurement managers can rely on this substrate for critical mission systems that require exceptional thermal endurance and resistance to lifting pads.

Key Features of Arlon 37N Polyimide Laminate

• Superior Thermal Stability: Features a high glass transition temperature ($T_g \ge 250^\circ\text{C}$), preventing Z-axis expansion and trace cracking during prolonged thermal exposure.

• 8-Layer Multilayer Build: Delivers robust power distribution and precise impedance control for dense electronic layouts.

• Enhanced Mechanical Reliability: Excellent resin toughness reduces the risk of blistering, delamination, and copper peeling during reworking or soldering.

• Compliant Material Composition: Formulated with a pure polyimide chemistry that meets IPC-4101/40 and IPC-4101/41 standards.

• Low Thermal Expansion: Minimal dimensional movement ensures reliable microvia and through-hole integrity across extreme temperature cycles.

Applications

• Aerospace & Avionics: Engine control modules, flight instrumentation, and power supplies.

• Military & Defense: Missile guidance systems, radar equipment, and secure communications.

• Industrial & Down-Hole Drilling: Deep-well logging tools, high-temperature sensors, and heavy machinery controls.

• Automotive Under-Hood: Electronic control units (ECUs) and sensors subjected to extreme heat.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Ready to upgrade your system’s thermal performance? Contact the PCBSYNC engineering team today to discuss your project specifications or request a custom quotation.
