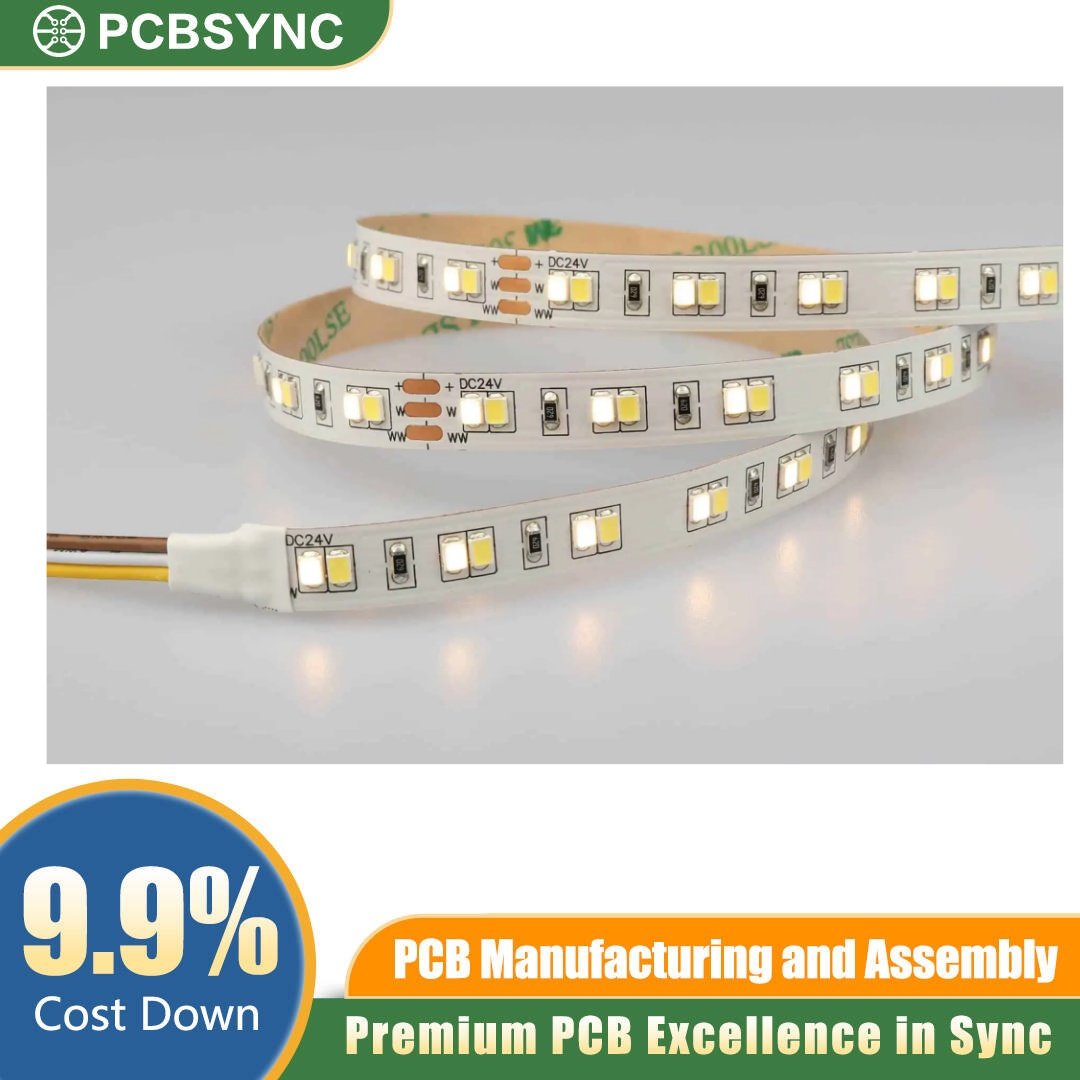

Single Layer FPC – White Coverlay, LED Strip Lighting Application

Single Layer FPC – White Coverlay, LED Strip Lighting Application

Request A Quote

Product Details

The PCBSYNC Single Layer FPC with white coverlay provides a streamlined, highly reliable interconnect solution specifically designed for modern LED strip lighting applications. Engineering thin, flexible circuits requires a careful balance of thermal dissipation and structural integrity, which this single-sided flexible printed circuit delivers. It allows product developers and procurement managers to implement reliable, space-saving circuitry in low-profile linear lighting fixtures, architectural accents, and automotive interior illumination.

Key Features of our Single Layer FPC

  • Optimised White Coverlay: Highly reflective white coverlay prevents light absorption, boosting overall lumen efficiency and ensuring uniform color rendering.

  • Base Material: Premium Polyimide (PI) substrate ensures excellent thermal stability and continuous flexibility without cracking.

  • Copper Weight: Available in 0.5 oz to 2 oz rolled annealed (RA) copper, matching precise current-carrying requirements for high-density LED arrays.

  • Solder Mask & Surface Finish: Liquid Photoimageable (LPI) white solder mask paired with ENIG (Electroless Nickel Immersion Gold) or OSP for superior solderability and oxidation resistance.

  • Dimensional Stability: Exceptionally thin profile (down to 0.1mm base thickness) allows for tight bend radii in curved or articulated housing profiles.

Applications

  • Architectural & Commercial Lighting: Linear LED strips, cove lighting, and custom signage.

  • Automotive Electronics: Ambient cabin lighting, dashboard displays, and door panel accent illumination.

  • Consumer Appliances: Backlighting modules for smart displays and localized status indicator arrays.

  • Industrial Displays: Backlit control panels and high-vibration indicator boards.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

For tailored technical advice or volume pricing configurations on your next lighting project, contact our engineering team or request a quote online today.
