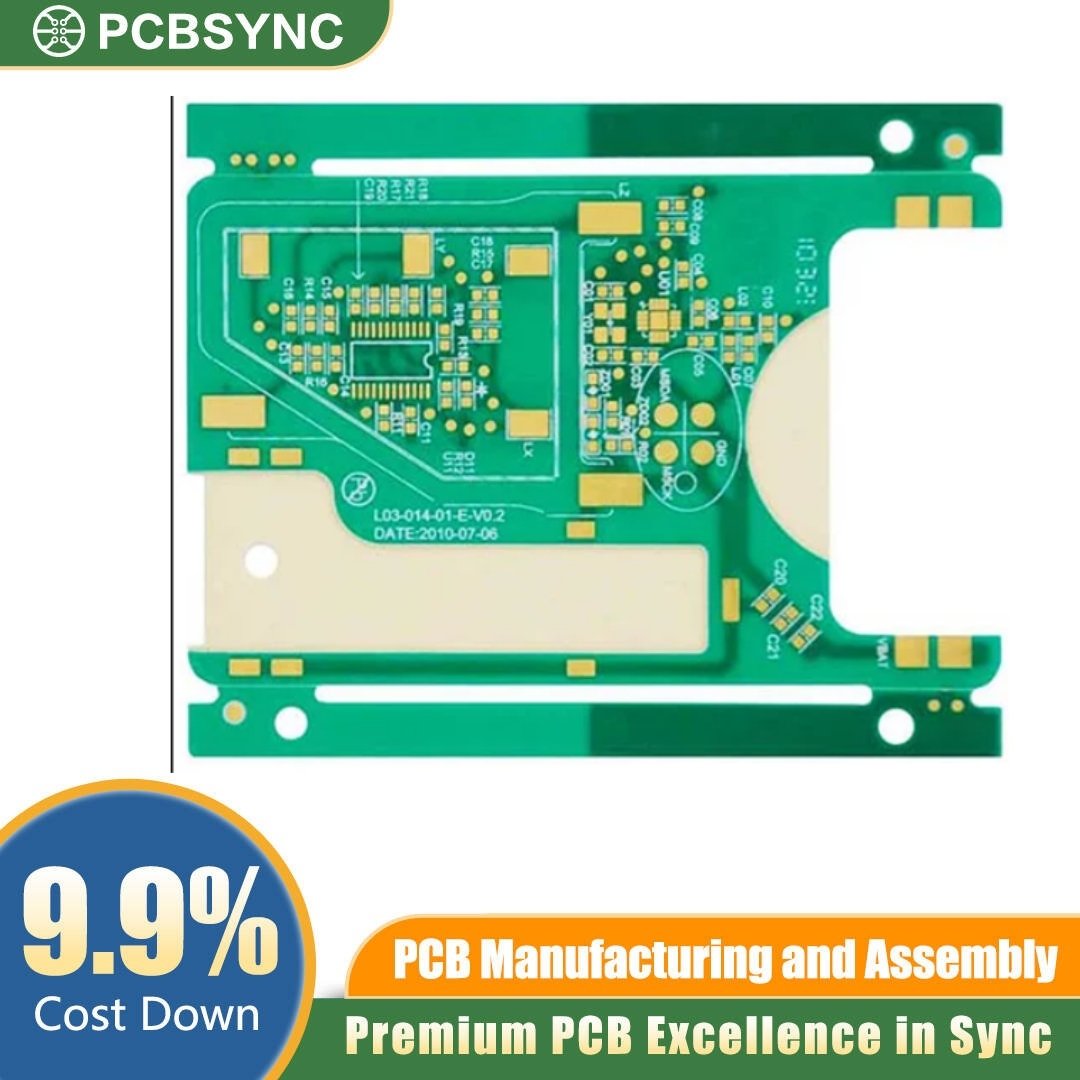

Rogers HDI PCB Stackup – Low-Loss RF Build-Up Board

Rogers HDI PCB Stackup – Low-Loss RF Build-Up Board

Request A Quote

Product Details

The Rogers HDI PCB Stackup delivers exceptional thermal stability and minimal dielectric loss for next-generation high-frequency electronics. Designed for RF engineers and hardware developers who require ultra-reliable signal transmission, this low-loss RF build-up board handles dense routing profiles without sacrificing performance. By integrating low-Dk/Df Rogers laminates into a high-density interconnect architecture, this board ensures crisp signal transition and minimal cross-talk across multi-layer configurations.

Key Features of the Rogers HDI PCB Stackup

  • Advanced Material Integration: Utilizing Rogers laminates (e.g., RO4000 or RO3000 series) combined with FR4 or Megtron cores for optimal cost-to-performance balance.

  • Precision HDI Architecture: Microvias, blind vias, and buried vias down to 0.1 mm to support tight BGA pitches and ultra-dense routing.

  • Controlled Impedance: Tight tolerance control ($\pm 5\%$) across single-ended and differential transmission lines.

  • Low-Loss Performance: Low dissipation factor (Df) to maximize power efficiency and preserve signal integrity at microwave and millimeter-wave frequencies.

  • Surface Finish Options: ENIG, ENEPIG, or Immersion Silver for optimal solderability and high-frequency skin-effect performance.

Applications

  • Telecommunications: 5G/6G base stations, high-speed routers, and satellite communication transceivers.

  • Aerospace & Defence: Radar modules, electronic warfare systems, and avionics instrumentation.

  • Automotive: Advanced Driver Assistance Systems (ADAS) and 77GHz radar sensors.

  • Medical Technology: High-resolution imaging equipment and diagnostic sensors.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Ready to optimize your high-frequency design? Upload your Gerber files today to receive a detailed quote on your custom HDI PCB build-up.
