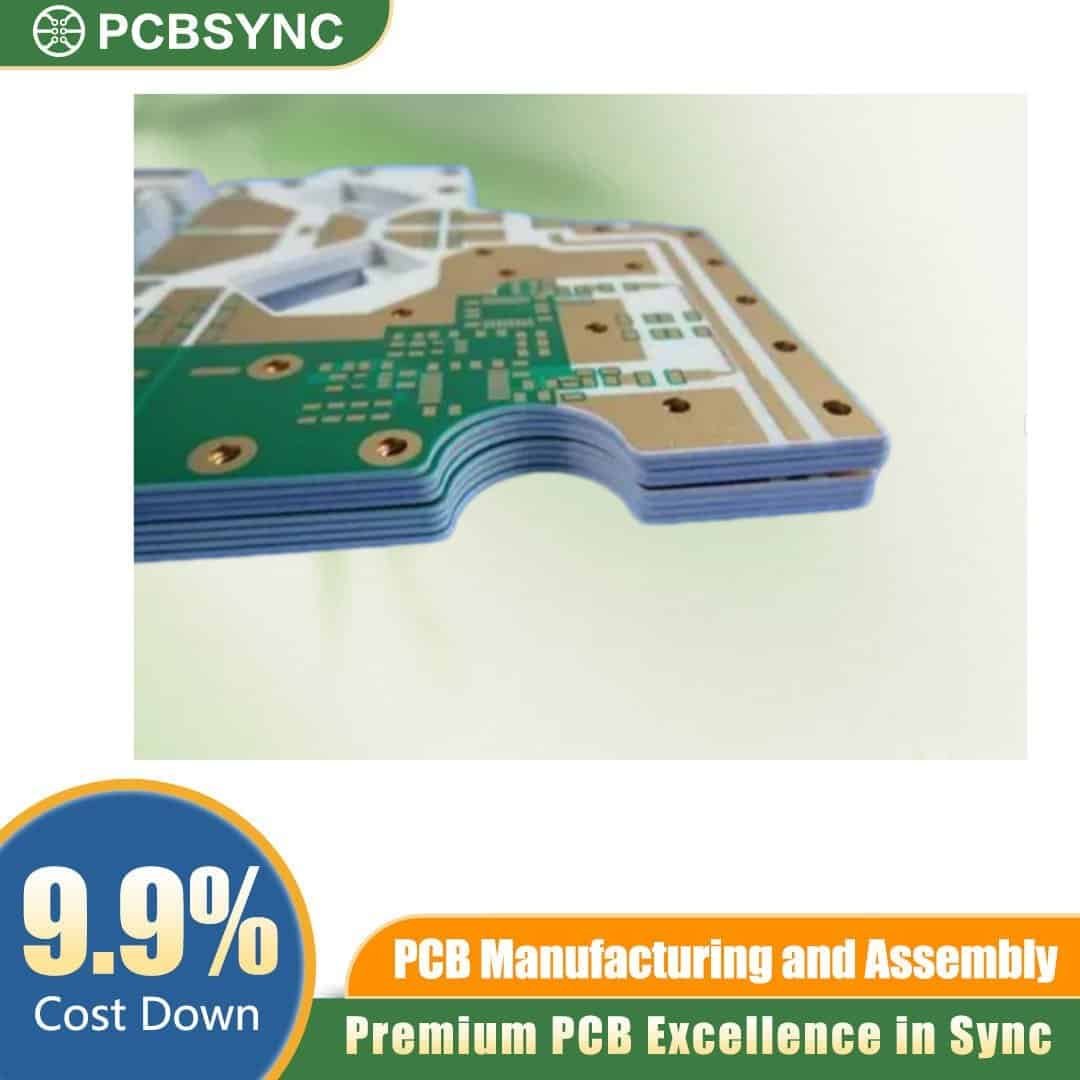

RT duroid 6202 2.0mm 3oz Immersion Gold 16-Layer Defense Electronic Support Measures Board

RT duroid 6202 2.0mm 3oz Immersion Gold 16-Layer Defense Electronic Support Measures Board

Request A Quote

Product Details

The RT duroid 6202 16-Layer Defense ESM Board is a high-performance multilayer solution specifically developed for electronic warfare and signal surveillance systems. By utilising Rogers RT/duroid 6202 low-loss laminates, this board ensures exceptional dimensional stability and electrical consistency across varying temperatures. It is an essential component for hardware developers building sophisticated signal-processing units that must operate reliably in harsh aerospace and defence conditions.

Key Features

  • Substrate Material: Rogers RT/duroid 6202 high-frequency laminate (Ceramic-PTFE).

  • Layer Count: 16-layer complex stack-up for high-density routing.

  • Copper Weight: 3oz heavy copper for enhanced thermal management and power handling.

  • Surface Finish: Immersion Gold (ENIG) for superior solderability and oxidation resistance.

  • Board Thickness: 2.0mm finished thickness.

  • Dielectric Constant (Dk): Low Dk (2.90 +/- 0.04) for reduced signal propagation delay.

  • Compliance: Built to IPC Class 3 standards for high-reliability electronics.

Applications

  • Electronic Support Measures (ESM): Real-time signal detection and analysis.

  • Radar Systems: Phased array antennas and beamforming hardware.

  • SIGINT & COMINT: Signals intelligence and communications monitoring.

  • Aerospace & Defence: Satellite communication systems and avionics.

  • RF/Microwave Modules: Power amplifiers and high-speed data transceivers.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

For detailed technical specifications or to discuss your specific layer stack-up requirements, please contact our engineering team or request a formal quote today.
