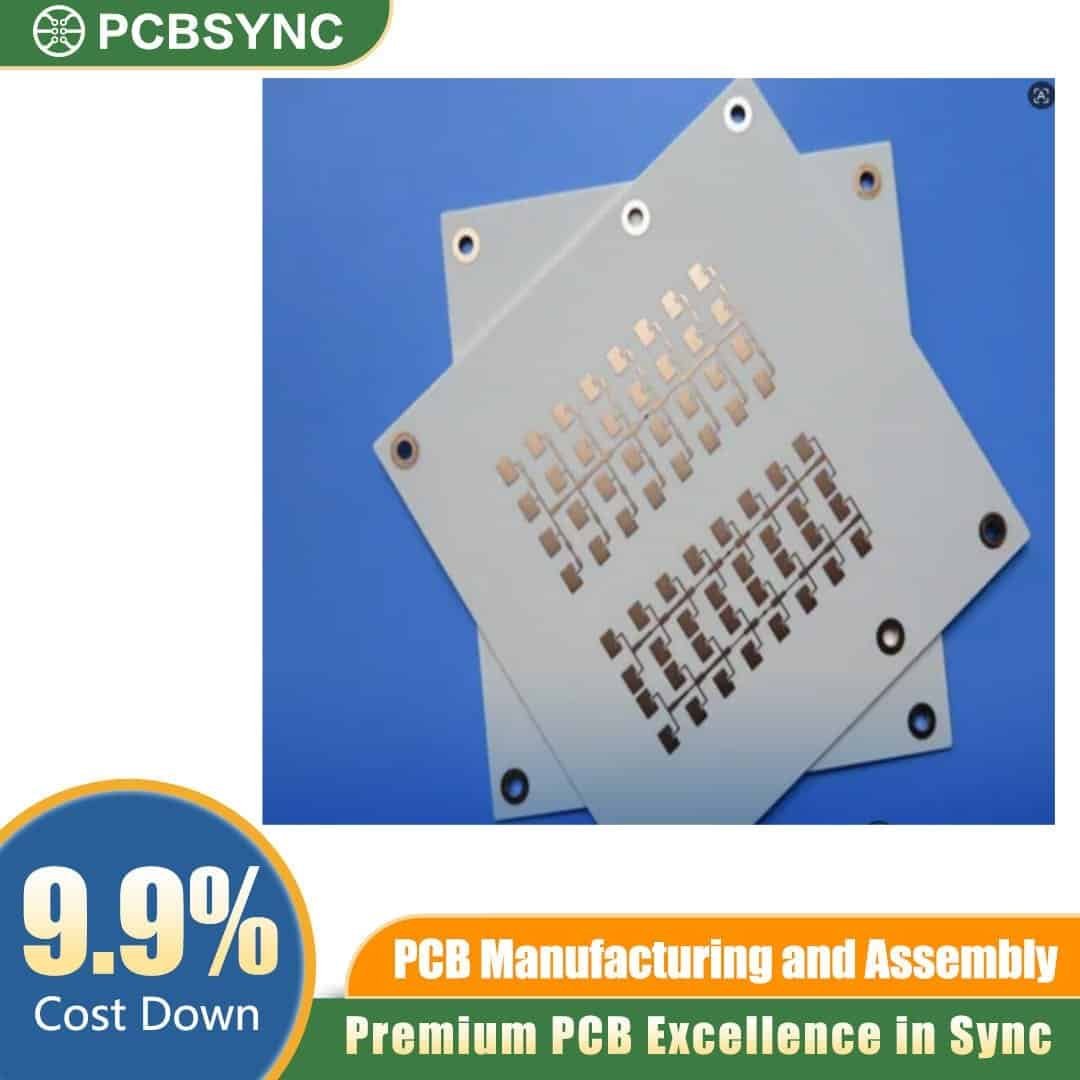

RO4700 0.8mm 12oz ENIG 14-Layer Private 5G Small Cell Board

RO4700 0.8mm 1/2oz ENIG 14-Layer Private 5G Small Cell Board

Request A Quote

Product Details

The RO4700 14-Layer Private 5G Small Cell Board is a high-density, multi-layer RF printed circuit board engineered specifically for next-generation telecommunications infrastructure. Designed to meet the stringent insertion loss and thermal management demands of localized wireless networks, this board provides enterprise product developers and RF engineers with the stable dielectric constant needed for high-frequency data transmission.

Key Features of the RO4700 14-Layer Private 5G Small Cell Board

  • Premium Base Material: Built with Rogers RO4700 series thermoset laminates for low loss, low Z-axis expansion, and excellent signal integrity at microwave frequencies.

  • High-Density Stackup: 14-layer precision architecture allows for complex routing of RF signals, power planes, and ground isolation layers.

  • Slim Profile & Copper Weight: Features a 0.8mm overall board thickness with 1/2oz (17.5µm) copper cladding, balancing compact spatial constraints with reliable power distribution.

  • ENIG Surface Finish: Electroless Nickel Immersion Gold plating provides a perfectly flat surface for fine-pitch surface mount technology (SMT) components and long-term solderability.

  • Tight Manufacturing Tolerances: Manufactured to IPC-A-600 Class 2 standards to ensure reliable electrical performance under continuous operation.

Applications in Modern Telecommunications

  • Private 5G Networks: Dedicated localized cellular base stations for industrial automation, smart warehouses, and secure corporate campuses.

  • Small Cell Base Stations: Urban microcells, femtocells, and picocells requiring high data throughput and compact form factors.

  • Distributed Antenna Systems (DAS): Signal distribution networks deployed within large commercial complexes, stadiums, and transit hubs.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Partner with an experienced EMS manufacturer for your next telecommunications deployment. Contact the PCBSYNC engineering team today to submit your Gerber files and request a comprehensive technical quote.
