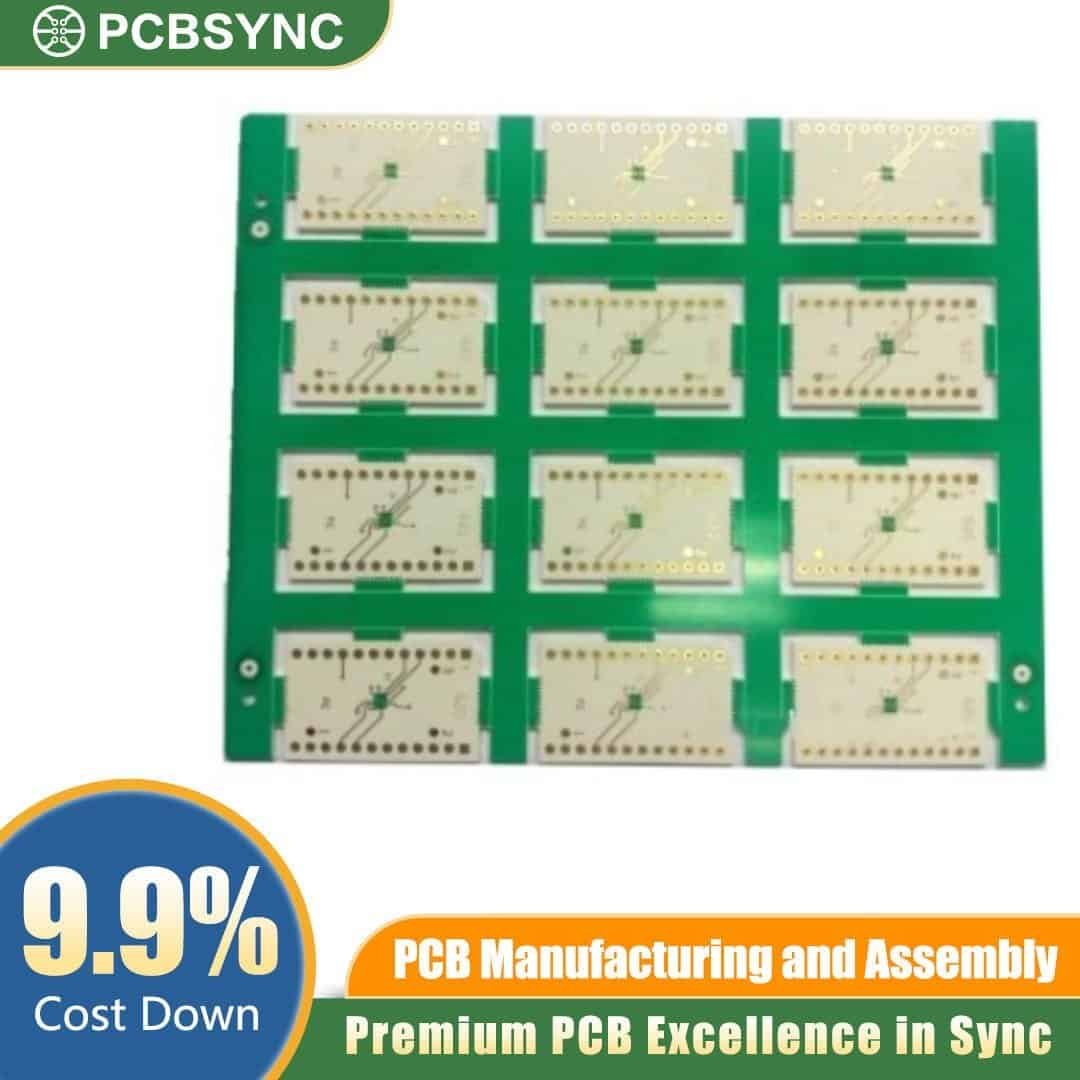

RO4003C 0.6mm 1oz Immersion Silver 4-Layer Contactless Card Reader PCB

RO4003C 0.6mm 1oz Immersion Silver 4-Layer Contactless Card Reader PCB

Request A Quote

Product Details

The RO4003C Contactless Card Reader PCB with a 0.6mm thickness and 1oz copper delivers the precise electrical performance required for modern RFID, NFC, and wireless payment terminals. Designed for hardware engineers and electronic product developers, this multilayer board utilizes Rogers high-frequency laminates to maintain stable dielectric constants across varying thermal environments. It provides the low-loss characteristics necessary to optimize data transfer and extend reader range.

  • Premium Substrate: Built with Rogers RO4003C hydrocarbon ceramic laminate for low dielectric tolerance and a minimal dissipation factor of 0.0027 at 10 GHz.

  • Optimised Stackup: 4-layer configuration designed specifically for strict impedance control and enhanced electromagnetic shielding.

  • Ultra-Thin Profile: 0.6mm board thickness satisfies the tight space requirements of compact, mobile reader enclosures.

  • Robust Foil: 1oz outer copper weight ensures reliable power distribution and robust signal trace propagation.

  • Immersion Silver Finish: Delivers a flat surface for precise surface mount technology (SMT) assembly and superior high-frequency performance.

  • Impedance Tolerance: Tight ±10% tolerance control on critical RF traces to minimise signal reflection.

  • Point-of-Sale (POS) terminals and secure electronic payment infrastructure.

  • NFC-enabled access control systems, smart ticketing gates, and security turnstiles.

  • Automated fare collection (AFC) systems in public transport networks.

  • Industrial RFID tracking readers, logistics scanners, and inventory management hardware.

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Ready to deploy high-frequency stability into your next hardware run? Contact PCBSYNC today to request a quote or upload your Gerber files for a comprehensive engineering review.
