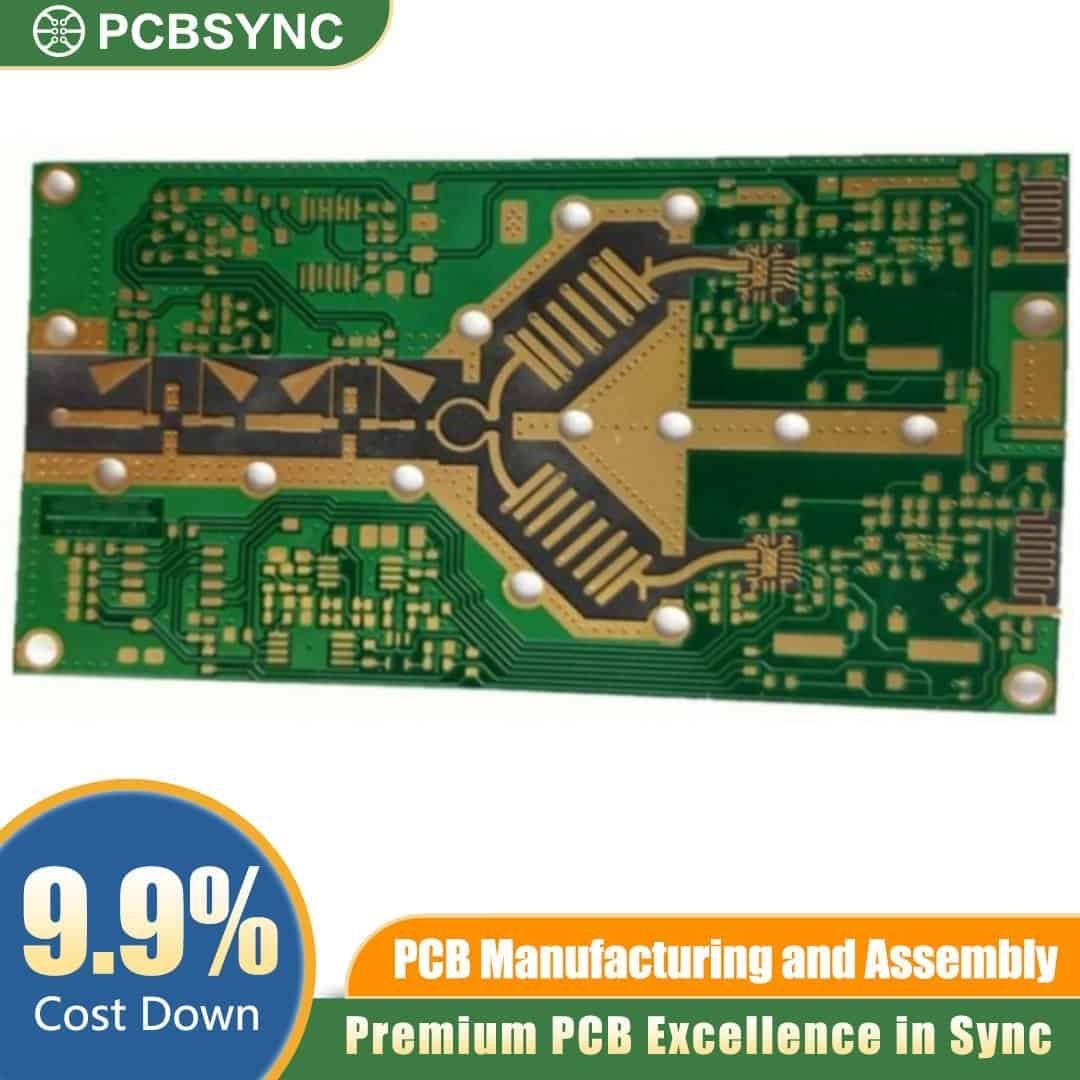

Engineered for the most demanding microwave and millimeter-wave applications, the PCBSync RO3035 4-Layer Satellite Downlink Circuit Board delivers the signal integrity, thermal stability, and dimensional consistency required for professional-grade satellite communication systems. Whether you are designing ground station receivers, LNB assemblies, or Ka/Ku-band downlink front-end modules, this board sets the benchmark for high-frequency RF performance.
Premium Rogers RO3035 Substrate — Built for RF Excellence
At the heart of this board lies Rogers RO3035 high-frequency laminate — a PTFE-based ceramic-filled material specifically developed for satellite and microwave circuit applications. With a tightly controlled dielectric constant (εr = 3.50 ± 0.05) and an ultra-low dissipation factor (tan δ = 0.0015 at 10 GHz), RO3035 minimises insertion loss and signal distortion across the critical Ku-band (12–18 GHz) and Ka-band (26.5–40 GHz) frequency ranges used in satellite downlink chains. Its near-zero coefficient of thermal expansion (CTE) in the Z-axis ensures consistent electrical performance across wide operating temperature swings — essential for outdoor and aerospace-grade deployments.
Precision Stack-Up: 1.2mm Board Thickness, 1/2oz Copper, 4-Layer Construction
The 1.2mm total board thickness is optimised for controlled impedance microstrip and stripline routing, enabling precise 50 Ω transmission lines without requiring exotic trace geometries. The 1/2oz (17.5 µm) copper weight strikes the ideal balance between fine-pitch trace resolution and current-carrying capacity, making it perfectly suited for dense RF layouts at satellite downlink frequencies. The 4-layer stackup provides dedicated signal, ground, power, and return-path planes — isolating sensitive low-noise amplifier (LNA) traces from switching noise, reducing EMI, and dramatically improving board-level shielding performance.
ENIG Surface Finish — Flat, Solderable, and Corrosion-Resistant
Electroless Nickel Immersion Gold (ENIG) surface finish ensures a perfectly flat, oxidation-free pad surface for high-reliability soldering of QFN packages, surface-mount connectors, and precision SMD components. ENIG’s gold layer provides excellent contact reliability for edge-card and SMA connector interfaces while maintaining long shelf life without pad coplanarity degradation — a critical requirement in professional satellite hardware assembly.
Key Technical Specifications
- Substrate Material: Rogers RO3035 PTFE Ceramic Laminate
- Dielectric Constant (εr): 3.50 ± 0.05 @ 10 GHz
- Dissipation Factor: 0.0015 @ 10 GHz
- Board Thickness: 1.2mm
- Copper Weight: 1/2oz (17.5 µm)
- Layer Count: 4 Layers
- Surface Finish: ENIG (Electroless Nickel Immersion Gold)
- Primary Application: Satellite Downlink, LNB, Ku/Ka-Band RF Front-End
- Impedance Control: ±10% (tighter tolerance available on request)
- Operating Temperature: −55°C to +150°C
Ideal Applications
- Satellite downlink receiver modules (Ku-band & Ka-band)
- Low-noise amplifier (LNA) and frequency converter boards
- Ground station RF front-end assemblies
- Phased array antenna feed networks
- VSAT and satellite internet terminal hardware
- Microwave point-to-point radio links
Why Choose PCBSync for Your Satellite RF PCBs?
PCBSync specialises in high-frequency and microwave PCB fabrication using Rogers, Taconic, and PTFE-based laminates. Every RO3035 satellite downlink board is manufactured under strict IPC Class 2/3 quality control, with full dielectric traceability, controlled-impedance verification reports, and AOI inspection as standard. Our in-house engineering team supports custom stack-ups, impedance matching consultation, and fast-turn prototyping for satellite and defence-grade RF programmes worldwide.
Order your RO3035 4-Layer Satellite Downlink Circuit Board from PCBSync today — and experience the difference that true RF-grade fabrication makes to your system’s link budget and signal chain performance.
