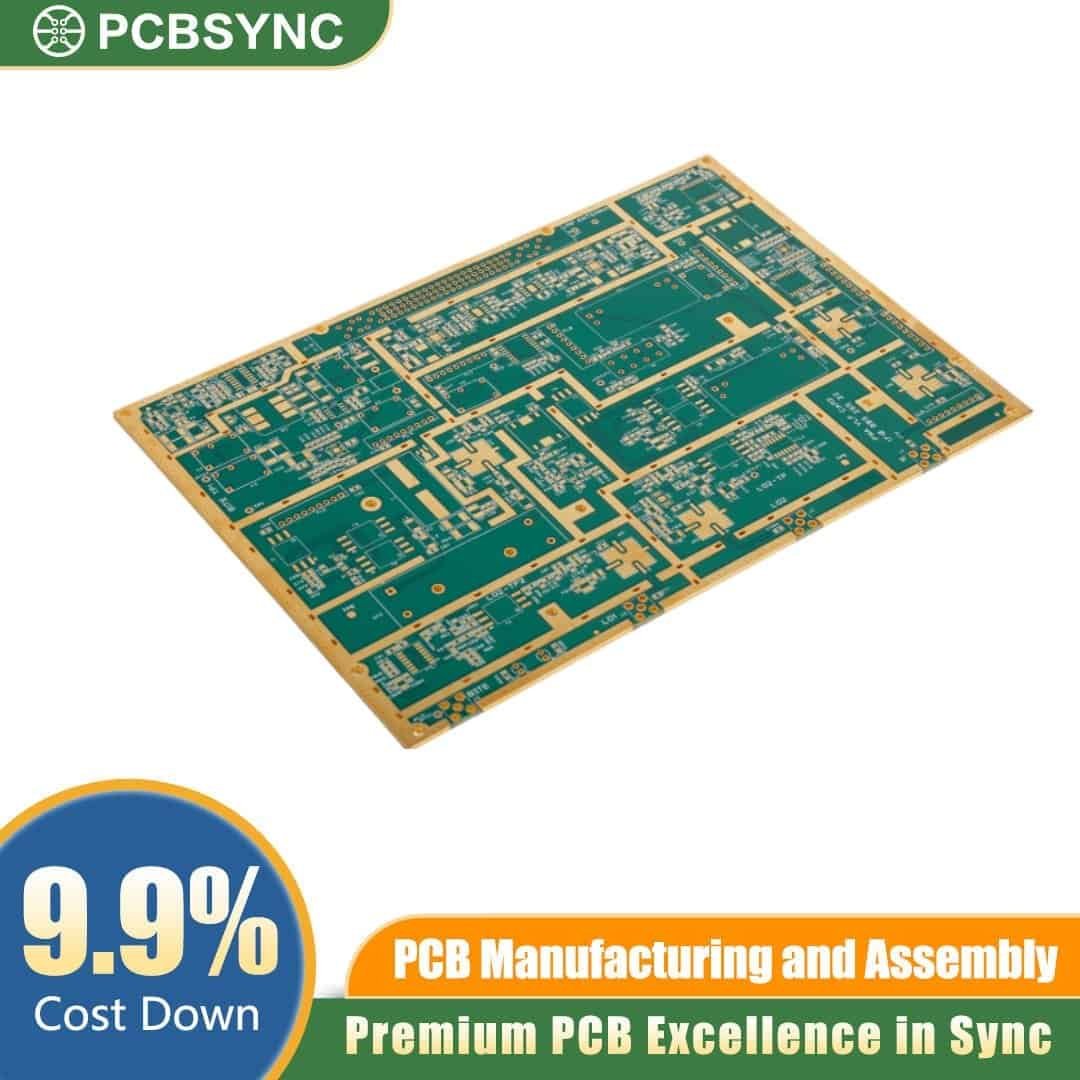

The RO3035 1.0mm 2oz Immersion Silver 8-Layer Defense Jamming System PCB is a high-performance multilayer solution specifically designed for RF and microwave applications. In the demanding environments of electronic countermeasures and signal jamming, maintaining low dielectric loss and superior thermal conductivity is vital. This 8-layer stackup integrates Rogers RO3035 materials to ensure consistent electrical performance across wide frequency ranges, making it an essential component for defense-grade signal processing.
Key Features
-
Substrate Material: Rogers RO3035 high-frequency ceramic-filled PTFE laminates.
-
Layer Count: 8-layer precision-aligned stackup for complex signal routing.
-
Board Thickness: 1.0mm finished thickness for compact system integration.
-
Copper Weight: 2oz (70µm) external and internal copper for enhanced power handling.
-
Surface Finish: Immersion Silver (Ag) for excellent solderability and flat surface topography.
-
Dielectric Constant ($D_k$): $3.50 \pm 0.05$ for stable impedance control.
-
Manufacturing Standards: IPC Class 3 compliant for high-reliability electronics.
Applications
The RO3035 8-Layer Defense Jamming System PCB is deployed in sectors where signal precision is non-negotiable. Primary applications include:
-
Electronic Countermeasures (ECM) and signal jamming hardware.
-
Military-grade radar and communications systems.
-
Satellite point-to-point microwave links.
-
Advanced telemetry and tracking equipment.
-
High-speed wireless infrastructure and power amplifiers.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Contact the PCBSYNC engineering team today to discuss your technical specifications or to request a formal quotation for your next high-frequency project.
