Short Description
High-performance 4-layer compact antenna PCB built on Rogers RO3010 laminate (0.6mm thickness) with 1oz copper and immersion silver finish — engineered for demanding RF and microwave applications up to 40 GHz.
Full Product Description
Precision-Engineered RF Performance Starts with the Right Substrate

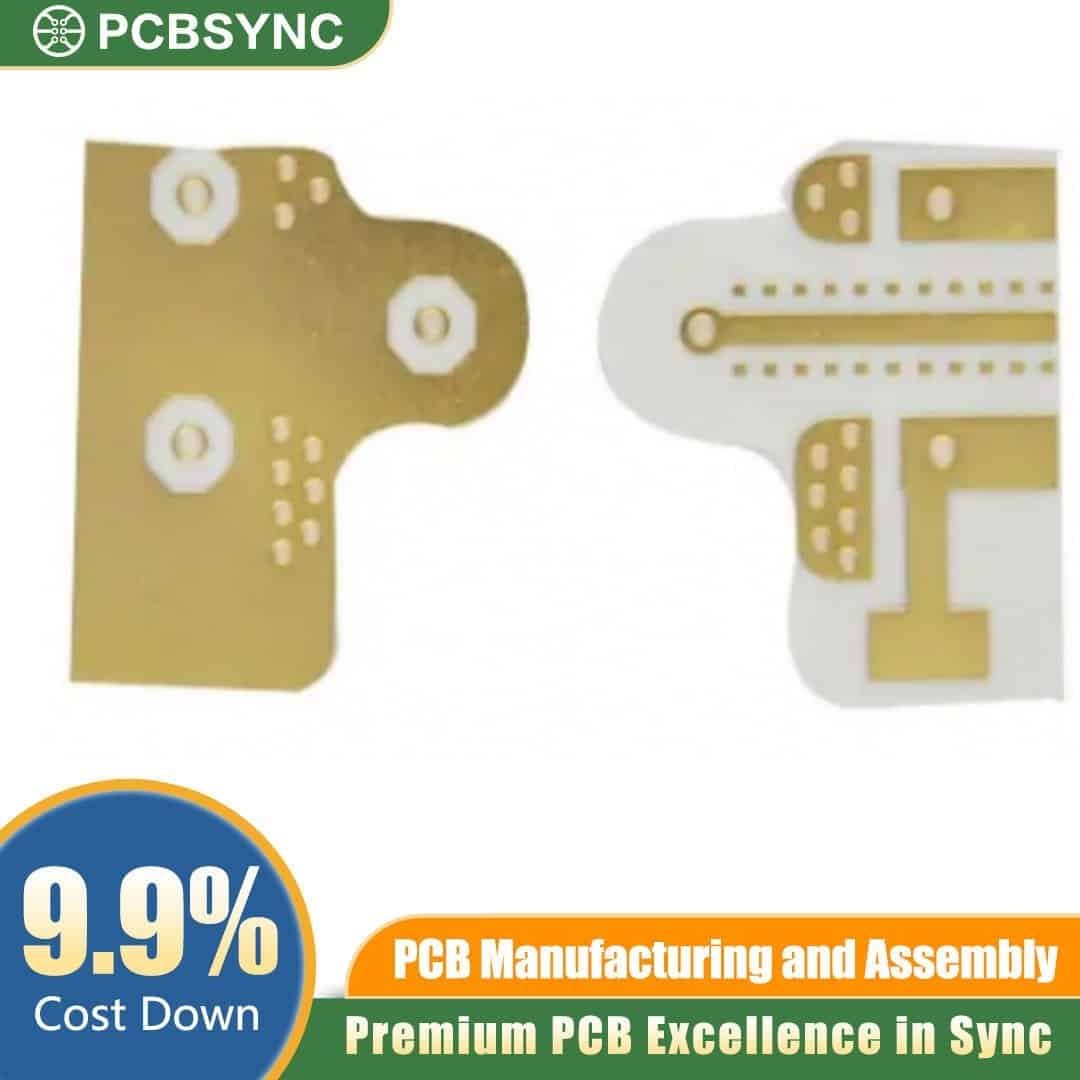

The RO3010 0.6mm 1oz Immersion Silver 4-Layer Compact Antenna Board delivers the signal integrity, dimensional stability, and thermal reliability that high-frequency antenna designs demand. Purpose-built on Rogers RO3010 ceramic-filled PTFE laminate, this compact antenna board is the go-to solution for engineers designing GPS modules, 5G antenna arrays, automotive radar systems, satellite communication front-ends, and IoT wireless devices operating across microwave and millimeter-wave bands.
At PCBSync, every board ships fully inspected and test-verified, so your prototyping and production timelines stay on track.
Why Rogers RO3010?
Rogers RO3010 is a ceramic-filled PTFE composite engineered specifically for high-frequency circuit applications. With a dielectric constant (Dk) of 10.2 ± 0.30 and a dissipation factor (Df) as low as 0.0022 at 10 GHz, this laminate provides exceptional signal propagation characteristics that standard FR-4 simply cannot match. The high Dk value enables significant size reduction in antenna elements and microstrip patch designs — a critical advantage for compact antenna boards where PCB real estate is at a premium.
The ceramic filler delivers excellent thermal conductivity and a low coefficient of thermal expansion (CTE), ensuring consistent electrical performance across wide operating temperature ranges from –50°C to +150°C. This makes the RO3010 substrate ideal for automotive, aerospace, and outdoor telecom environments where thermal cycling is a constant concern.
Board Specifications at a Glance
- Laminate: Rogers RO3010 (ceramic-filled PTFE)
- Layer Count: 4 layers
- Board Thickness: 0.6mm
- Copper Weight: 1oz (35µm) per layer
- Surface Finish: Immersion Silver (ImAg)
- Dk: 10.2 ± 0.30 at 10 GHz
- Df: 0.0022 at 10 GHz
- Application Class: RF / Microwave / Antenna
Immersion Silver Finish for Clean Signal Paths
The immersion silver surface finish provides a flat, uniform, and highly solderable pad surface — essential for fine-pitch RF component placement and controlled impedance interconnects. Compared to HASL or OSP alternatives, immersion silver maintains consistent coplanarity across dense SMT pads and delivers reliable wire-bonding compatibility. It also avoids the nickel barrier layer present in ENIG, eliminating potential signal-loss contributions at microwave frequencies.
4-Layer Stackup: Compact Without Compromise
The 4-layer construction gives designers the freedom to separate RF signal routing, ground planes, DC power distribution, and control circuitry across dedicated layers — all within a slim 0.6mm profile. Proper ground plane isolation minimizes cross-talk and enhances antenna radiation efficiency, while the thin stackup supports integration into space-constrained enclosures common in wearable devices, drone payloads, and embedded antenna modules.
Target Applications
- 5G NR and Sub-6 GHz antenna elements
- 77 GHz automotive radar patch antennas
- GPS / GNSS active antenna modules
- WLAN and Wi-Fi 6E access point antennas
- Satellite communication (SATCOM) phased arrays
- Industrial IoT sensor nodes with integrated antennas
- Unmanned aerial vehicle (UAV) communication links
Why Order from PCBSync?
PCBSync specializes in advanced-material PCB fabrication for RF, microwave, and high-speed digital applications. Every RO3010 antenna board undergoes controlled impedance testing, microsection verification, and automated optical inspection before shipment. Whether you need quick-turn prototypes or volume production, our engineering team provides DFM review and stackup consultation at no extra cost.
Ready to accelerate your next antenna design? Add to cart or contact our RF engineering team for custom specifications and volume pricing.
