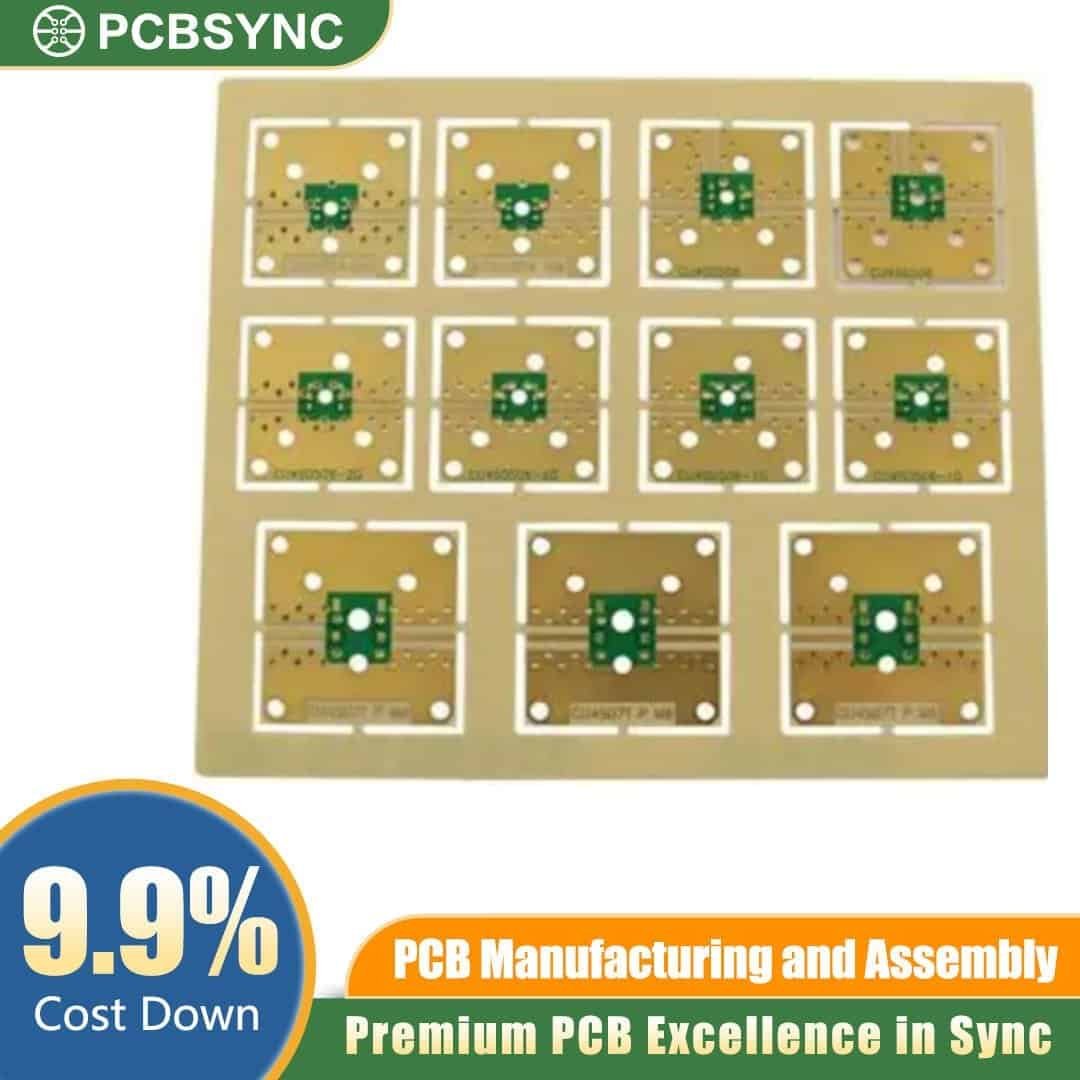

RO3003G2 1.6mm 2oz Immersion Silver 10-Layer 5G mmWave Board

Product Details

Premium High-Frequency Multilayer Board for 5G & Millimeter-Wave Applications

PCBSync’s RO3003G2 1.6mm 2oz Immersion Silver 10-Layer 5G mmWave Board is engineered for the most demanding RF and microwave applications on the market today. Built on Rogers Corporation’s industry-leading RO3003G2 ceramic-filled PTFE laminate, this 10-layer high-frequency PCB delivers exceptional electrical performance, thermal stability, and signal integrity at frequencies up to 77 GHz and beyond — making it the ideal choice for 5G mmWave infrastructure, automotive radar (76–81 GHz), advanced antenna arrays, and next-generation wireless systems.

Key Specifications

Base Material: Rogers RO3003G2 ceramic-filled PTFE composite
Board Thickness: 1.6mm (±10%)
Layer Count: 10 layers (hybrid stack-up available)
Copper Weight: 2oz (70µm) outer & inner layers
Surface Finish: Immersion Silver (ImAg)
Dielectric Constant (Dk): 3.00 ± 0.04 @ 10 GHz
Dissipation Factor (Df): 0.0010 @ 10 GHz
Thermal Coefficient of Dk: −3 ppm/°C
Operating Temperature: −55°C to +280°C
UL Rating: 94V-0

Why Choose RO3003G2?

RO3003G2 is the next-generation evolution of Rogers’ proven RO3003 series, specifically optimized for 77 GHz automotive radar and 5G mmWave applications. Its tightly controlled dielectric constant ensures repeatable phase performance across high-volume production runs, while its ultra-low loss tangent minimizes insertion loss in long transmission lines and dense antenna feed networks. Improved copper-to-substrate adhesion and refined surface profile also reduce conductor loss at high frequencies — a critical advantage for maintaining signal fidelity above 60 GHz.

Immersion Silver Surface Finish — Tailored for RF

Immersion Silver (ImAg) is the preferred finish for high-frequency PCBs. It delivers:

Lowest insertion loss of any lead-free finish at mmWave frequencies
Excellent solderability and fine-pitch component compatibility
Flat, uniform surface for precise impedance control
RoHS-compliant and ideal for high-speed digital + RF hybrid designs

10-Layer Stack-Up Advantage

The 10-layer construction enables complex routing for MIMO antenna arrays, beamforming networks, phase-shifter modules, and integrated RF + digital control designs in a single board. PCBSync supports hybrid stack-ups combining RO3003G2 with FR-4 or other Rogers laminates (RO4350B, RO4835) to balance performance with cost — letting you reserve the premium high-frequency layers exactly where they matter.

Typical Applications

5G mmWave base stations and small cells (24, 28, 39 GHz bands)
77 GHz automotive radar (ADAS, LiDAR fusion, autonomous driving)
Phased-array and beamforming antennas
Satellite communication (SATCOM) and aerospace systems
Microwave point-to-point backhaul
RF test and measurement equipment

Manufacturing Capability at PCBSync

Every RO3003G2 board is fabricated in our IPC Class 3-certified facility with controlled impedance (±5%), laser-drilled microvias, sequential lamination, and 100% AOI plus flying probe testing. We support quick-turn prototypes from 5 working days, with full DFM review included on every order at no additional cost.

Order online today and receive your custom 5G mmWave PCB built to your exact stack-up, drill, and impedance requirements. Trusted by RF engineers at leading telecom, automotive, and aerospace OEMs worldwide — PCBSync is your high-frequency manufacturing partner from prototype through volume production.
