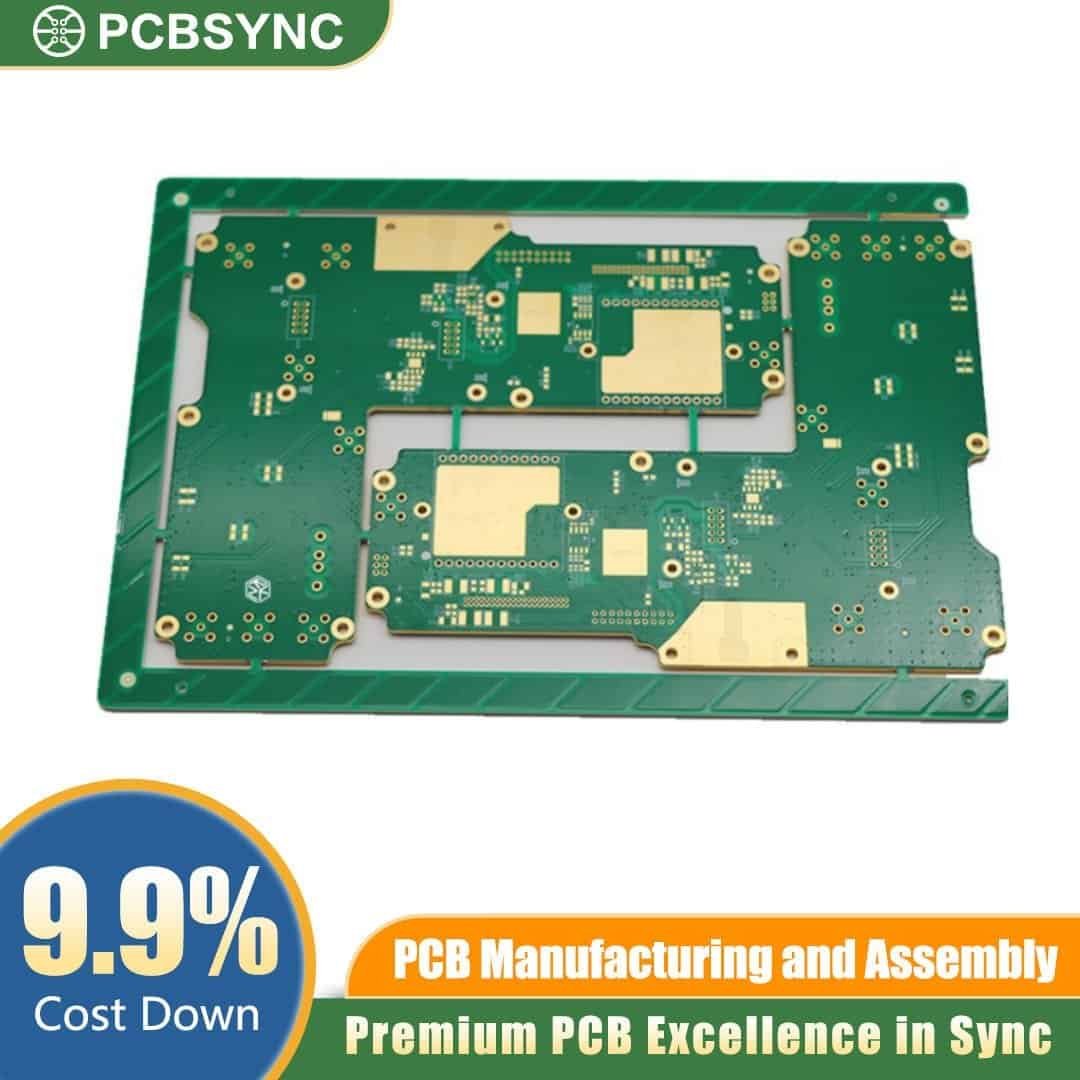

The RO3003 18-Layer Core Network Equipment Board is a precision-engineered solution for high-frequency telecommunications infrastructure. Specifically developed for core network hardware, this 18-layer stackup utilises Rogers RO3003 ceramic-filled PTFE composites to maintain stable dielectric constants across varying temperatures. This ensures minimal signal loss and phase stability for engineers developing next-generation routing and switching equipment.
Key Features
-
Substrate Material: Rogers RO3003 ceramic-filled PTFE for superior high-frequency performance.
-
Layer Count: Advanced 18-layer core construction for high-density interconnects (HDI).
-
Board Thickness: 2.0mm finished thickness providing robust mechanical rigidity.
-
Copper Weight: 3oz outer layer copper for enhanced current carrying capacity and heat dissipation.
-
Surface Finish: ENIG (Electroless Nickel Immersion Gold) for flat soldering surfaces and oxidation resistance.
-
Signal Integrity: Low dissipation factor (0.0013 @ 10 GHz) to support high-speed data transmission.
-
Compliance: Built to IPC Class 2 or Class 3 standards with full RoHS compliance.
Applications
The RO3003 18-Layer Core Network Equipment Board is ideal for:
-
Telecommunications: 5G base stations, core routers, and high-speed switches.
-
Data Centres: High-bandwidth server backplanes and optical networking modules.
-
Aerospace & Defence: Advanced radar systems and satellite communication links.
-
RF Engineering: Power amplifiers and automotive radar (77 GHz) applications.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Contact the PCBSYNC technical team today to discuss your project requirements or to request a detailed quotation for your multilayer high-frequency PCB needs.
