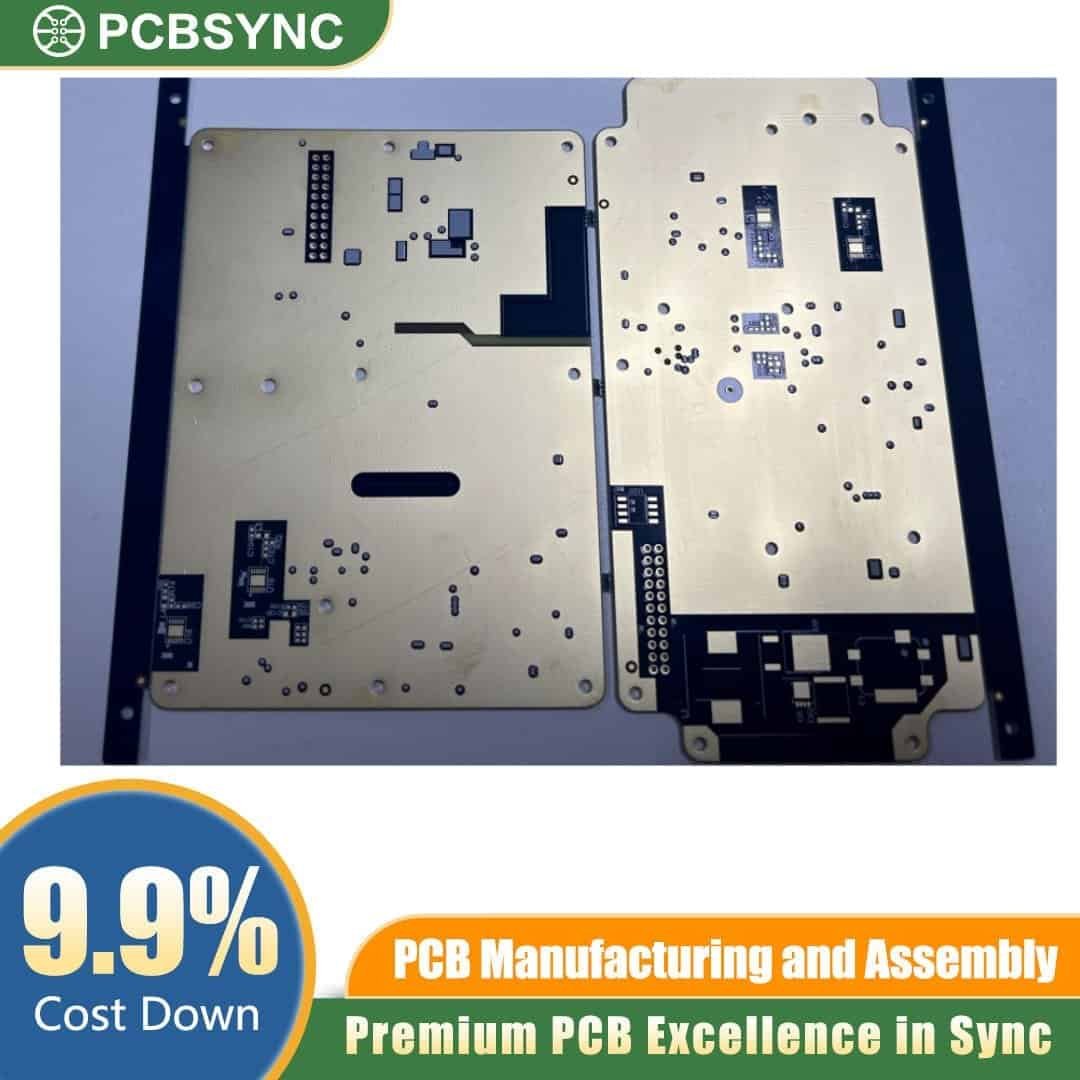

RO3003 1.0mm 1oz Hard Gold 4-Layer Wireless ECG Monitor PCB

RO3003 1.0mm 1oz Hard Gold 4-Layer Wireless ECG Monitor PCB

Request A Quote

Product Details

The RO3003 1.0mm 4-Layer Wireless ECG Monitor PCB is a high-performance circuit board designed specifically for the demanding requirements of wireless medical diagnostics. Built on Rogers RO3003 high-frequency ceramic-filled PTFE composites, this board ensures stable dielectric constants across varying temperatures and frequencies. This stability is critical for wireless ECG monitors that must maintain precise signal transmission without interference or data loss in sensitive clinical environments.

Key Features

  • Base Material: Rogers RO3003 (High-frequency PTFE)

  • Layer Count: 4-Layer multilayer construction

  • Board Thickness: 1.0mm precision tolerance

  • Copper Weight: 1oz (35μm) finished copper

  • Surface Finish: Hard Gold (Electrolytic Gold over Nickel) for superior conductivity and contact wear resistance

  • Solder Mask: Medical-grade Blue or Green matte finish

  • Impedance Control: Strict ±10% tolerance for RF signal paths

  • Compliance: IPC Class 2 or Class 3 standards available

Applications

The unique dielectric properties and robust Hard Gold plating make this PCB ideal for:

  • Wireless ECG Monitors: Continuous cardiac rhythm tracking.

  • Wearable Medical Devices: Low-profile diagnostic sensors.

  • Remote Patient Monitoring: High-frequency telemetry modules.

  • Portable Defibrillators: Internal RF communication boards.

  • Smart Healthcare IoT: Low-loss wireless data transmission nodes.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

If you are developing advanced medical hardware, our engineering team is ready to assist with DFM feedback and technical support. Contact us today to discuss your project requirements or request a formal quote for your RO3003 1.0mm 4-Layer Wireless ECG Monitor PCB.
