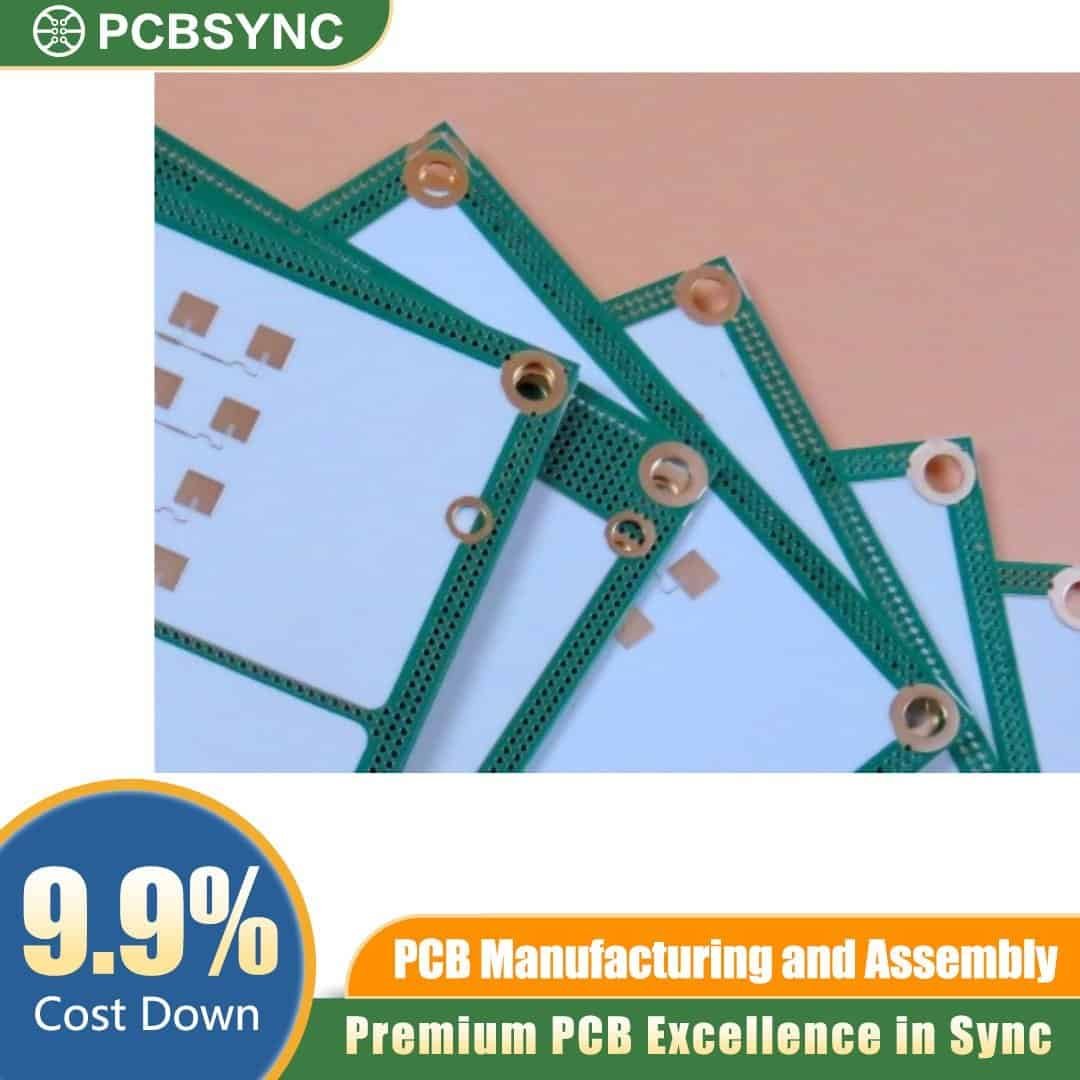

The PCBSync Rogers RO4830 1.2mm 3oz ENIG 4-Layer High-Power RF Amplifier Board is a state-of-the-art printed circuit board designed for sophisticated high-frequency radio frequency (RF) power amplification applications. Its meticulous design and premium materials elevate performance, reliability, and signal integrity in demanding RF environments, making it a critical component for communications, radar, and advanced RF systems.
Material Excellence with Rogers RO4830
At the heart of this PCB lies Rogers RO4830, a high-frequency laminate known for its excellent electrical and mechanical properties. The RO4830 material is engineered to provide a low dielectric constant and low dissipation factor, which minimizes signal loss and supports superior signal integrity at microwave and millimeter-wave frequencies. This characteristic is vital for RF power amplifier circuits, where preserving signal strength and reducing noise are paramount.
Robust Board Construction
With a 1.2mm total board thickness and 3oz copper layers, the PCB offers exceptional current-carrying capability and thermal dissipation. The thicker copper layers allow efficient heat spread, critical for high-power RF amplifiers that generate significant thermal loads during operation. The 1.2mm thickness balances mechanical strength with form factor flexibility, ensuring durability without excessive bulkiness.
Advanced 4-Layer Design
The 4-layer stackup provides a sophisticated balance of signal routing and power/ground plane distribution. This multi-layer approach reduces electromagnetic interference (EMI), controls impedance tightly, and isolates noise sources, all essential for maintaining the purity of high-frequency signals. The internal layers enable optimal power distribution and grounding schemes that reduce parasitic inductances and enhance overall RF performance.
Surface Finish: Electroless Nickel Immersion Gold (ENIG)
The board is finished with ENIG plating, known for its excellent surface planarity, solderability, and corrosion resistance. ENIG ensures reliable and long-lasting connections, particularly important in high-density RF circuit assemblies. The gold flash on nickel provides a protective barrier that maintains consistent contact resistance and supports fine pitch components often used in modern RF designs.
Optimized for High-Power RF Amplification
This PCB is specifically tailored to accommodate the thermal and electrical demands of high-power RF amplifier circuits. The substantial copper weight, carefully controlled dielectric properties, and multi-layer architecture collectively optimize the board for handling high currents and voltages while maintaining signal fidelity. This balance is critical in applications like base station transmitters, satellite communication systems, and radar platforms where amplifier efficiency and reliability are non-negotiable.
Applications
The PCBSync Rogers RO4830 1.2mm 3oz ENIG 4-Layer PCB is ideal for engineers and developers working on:
-
RF power amplifier modules
-
High-frequency communication equipment
-
Wireless infrastructure devices
-
Radar and aerospace systems
-
High-speed signal processing boards
Final Summary
In summary, this RF amplifier PCB exemplifies a high-end solution for demanding electronic applications. By combining superior Rogers RO4830 high-frequency laminate, robust copper thickness, a sophisticated 4-layer stackup, and premium ENIG finish, it ensures exceptional electrical performance, thermal management, and mechanical durability for high-power RF amplification. Whether you’re designing next-generation wireless infrastructure or mission-critical RF systems, this PCB provides a reliable and high-performance platform to build upon.
