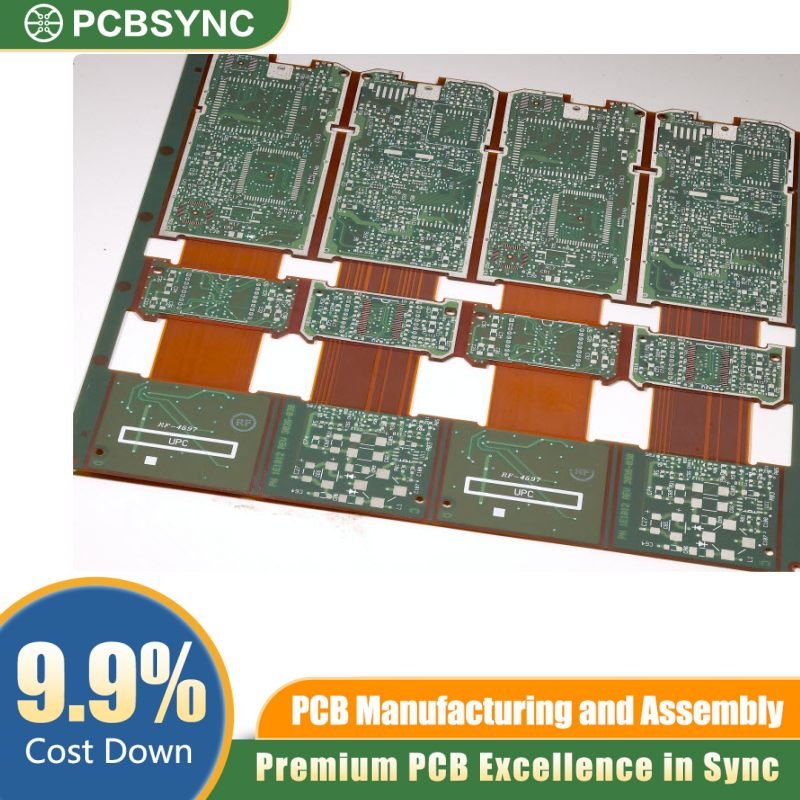

Upgrade your electronic design with the PCBSync 10-Layer Rigid-Flex PCB with Immersion Tin — a premium interconnect solution built for engineers who demand performance without compromise.
Superior Layer Stackup for Complex Designs This 10-layer rigid-flex PCB combines the mechanical stability of rigid boards with the dynamic flexibility of flex circuits. Whether you’re designing wearables, medical implants, or aerospace instrumentation, the multi-layer stackup supports high-density component placement and reliable signal integrity across every layer.
Immersion Tin Surface Finish — Flat, Solderable, RoHS Compliant The immersion tin (ImSn) surface finish provides a uniformly flat, lead-free coating that ensures excellent solderability and long shelf life. Perfect for fine-pitch SMT components, it meets IPC-6013 standards and complies with RoHS and REACH environmental directives.
Key Features:
- 10-layer rigid-flex construction for maximum routing density
- Immersion tin finish for superior solderability and oxidation resistance
- IPC Class 2 / Class 3 quality standards available
- Controlled impedance options for high-speed signal applications
- Tight tolerances with ±0.1mm drilling accuracy
- UL-certified materials for safety-critical applications
Industries Served PCBSync rigid-flex PCBs are trusted across medical devices, military & defense, automotive electronics, IoT wearables, and telecommunications industries.
Custom Configurations Available Need a tailored stackup, specific board thickness, or unique flex zone geometry? PCBSync offers full custom rigid-flex PCB manufacturing with fast turnaround and dedicated engineering support.
Order your PCBSync 10-Layer Rigid-Flex PCB today and experience the difference precision manufacturing makes.
