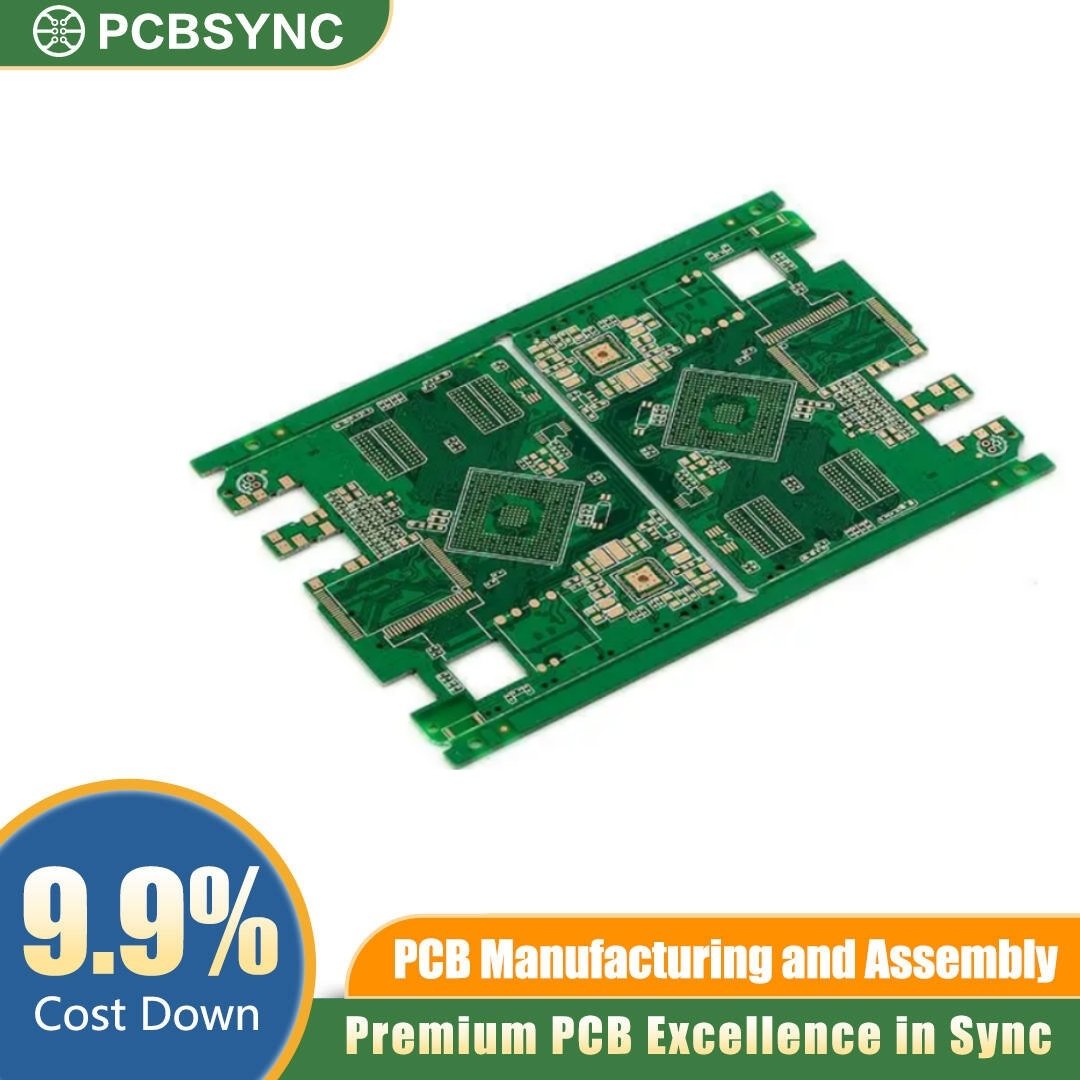

The 1+N+1 HDI PCB stackup represents a fundamental entry point into high-density interconnect architecture, delivering an efficient single microvia build-up layer on top and bottom surfaces. This design allows engineers to escape dense grid arrays, such as fine-pitch BGAs, while maintaining structural integrity and high-speed signal performance. By utilising sequential build-up fabrication, this board minimises layer counts and overall thickness without sacrificing routing complexity or thermal efficiency.
Key Features of 1+N+1 HDI PCB Stackup Technology
-
Microvia Architecture: Laser-drilled blind and buried microvias with copper filling for stacked or staggered configurations.
-
Fine Pitch Capability: Supports fine-pitch components down to 0.4mm BGA spacing.
-
Advanced Core Materials: Compatible with high-Tg FR-4, halogen-free materials, and low-loss high-frequency laminates.
-
Controlled Impedance: High-precision trace tolerances ensuring signal integrity for high-speed digital applications.
-
Surface Finish Options: ENIG, ENEPIG, or Immersion Silver for optimal solderability and durability.
-
Manufacturing Standards: Fabricated in strict accordance with IPC-A-600 Class 2 and Class 3 quality standards.
Applications
-
Consumer Electronics: Wearable devices, smartphones, and compact IoT modules.
-
Computing & Communication: High-density router line cards, micro-servers, and RF transceivers.
-
Industrial Automation: Advanced sensor arrays and miniaturised control units.
-
Automotive Systems: Driver assistance system (ADAS) controllers and compact radar modules.
