Panasonic PCB Materials Explained: From MEGTRON 6 to MEGTRON 8

If you’ve spent any time speccing out materials for high-speed boards, you’ve probably come across the MEGTRON name more than once. As a PCB engineer who’s worked with everything from basic FR-4 to exotic PTFE substrates, I can tell you that Panasonic PCB materials have earned their reputation in the industry—not through marketing, but through consistent performance in demanding applications.

In this guide, I’ll walk you through the MEGTRON series from a practical engineering perspective. We’ll cover the technical specs you actually need, real-world application considerations, and help you determine which material fits your next project. Whether you’re designing for 5G infrastructure, automotive radar, or high-speed data centers, understanding these materials can make the difference between a board that barely meets spec and one that exceeds expectations.

Why Panasonic PCB Materials Matter in Modern Electronics

The electronics landscape has changed dramatically in recent years. Data rates that seemed theoretical five years ago are now standard requirements. When you’re routing 56 Gbps PAM4 signals or designing mmWave antenna arrays, material selection becomes critical—not optional.

Panasonic has been manufacturing circuit board materials for decades, with factories worldwide and one of the broadest product portfolios in the industry. Their Electronic Materials Business Division has developed everything from flexible circuit materials to halogen-free substrates to ultra-high-speed, low-loss laminates. But the crown jewels of their lineup are the MEGTRON series materials, which have become industry standards for applications where signal integrity cannot be compromised.

What makes Panasonic PCB materials stand out from competitors? Three things primarily: consistent dielectric properties across frequency ranges, compatibility with standard FR-4 processing (which keeps fabrication costs reasonable), and a comprehensive selection of prepreg thicknesses that simplifies stackup design. When you’re trying to hit tight impedance tolerances on a 20+ layer board, having 18 different laminate thicknesses to work with makes your life considerably easier.

Understanding PCB Material Properties: What Actually Matters

Before diving into specific MEGTRON grades, let’s establish what properties matter most for high-speed design. I’ve seen too many engineers focus on the wrong parameters and end up with boards that look good on paper but fail in production.

Dielectric Constant (Dk)

The dielectric constant determines signal propagation speed through your substrate. Lower Dk means faster signal velocity, which matters for timing-critical designs. More importantly, Dk stability across frequency and temperature ranges affects impedance consistency. A material with Dk of 3.5 that varies by ±0.1 across your frequency range will give you more predictable results than one with Dk of 3.3 that swings by ±0.3.

Dissipation Factor (Df)

Also called loss tangent, this is where high-speed materials earn their premium pricing. Df directly impacts insertion loss—the signal attenuation per unit length. Standard FR-4 typically shows Df around 0.018-0.025 at 1 GHz, which becomes unacceptable for channels longer than a few inches at high data rates. MEGTRON materials bring this down to 0.002 or lower, which translates to roughly 4-6 dB less loss on a 12-inch differential pair compared to FR-4.

Glass Transition Temperature (Tg)

Tg indicates when the resin system transitions from rigid to softened state. Higher Tg generally means better dimensional stability during thermal excursions and lead-free reflow processes. All MEGTRON grades support lead-free assembly, but Tg differences affect reliability in high-temperature operating environments.

Thermal Decomposition Temperature (Td)

This is the temperature where material begins breaking down chemically. For high-layer-count boards that see multiple reflow cycles, higher Td provides margin against laminate degradation. MEGTRON materials typically exceed 370°C, giving substantial headroom above lead-free reflow temperatures.

MEGTRON 6: The Industry Workhorse

MEGTRON 6 launched in 2004 and quickly became the de facto standard for high-speed, low-loss applications. It received the 46th Ichimura Prize in Industry for Excellent Achievement in 2014 and the 62nd Okochi Memorial Production Prize in 2016—recognition that reflects its impact on the industry.

Technical Specifications

Parameter	MEGTRON 6 Value	Test Conditions
Dielectric Constant (Dk)	3.34	@13GHz
Dissipation Factor (Df)	0.0037	@13GHz
Glass Transition Temp (Tg)	185°C	DSC method
Thermal Decomposition (Td)	410°C	TGA method
T288 (with copper)	>120 min	Time to delamination
Moisture Absorption	<0.1%	—

The MEGTRON 6 family includes several variants optimized for different applications:

• MEGTRON 6(N): Low Dk glass cloth version, using R-5775(N) laminate and R-5670(N) prepreg
• MEGTRON 6(K): Standard E-glass version
• MEGTRON 6(G): Standard version with R-5775 laminate and R-5670 prepreg

Why Engineers Choose MEGTRON 6

The real advantage of MEGTRON 6 isn’t just its electrical properties—it’s the combination of performance and manufacturability. Unlike PTFE-based materials that require specialized lamination cycles and higher pressures, MEGTRON 6 processes identically to conventional FR-4. No incompatible pressures, temperatures, or cure times. This means you can build hybrid stackups with FR-4 inner layers and MEGTRON 6 outer layers in a single lamination cycle, optimizing cost without sacrificing performance where it counts.

MEGTRON 6 laminates come in 18 different thicknesses, complemented by a wide range of prepreg options including various tightly woven “flat glass” styles that minimize fiber weave effect—a critical consideration for differential pairs routed at non-optimal angles. The material meets IPC specification 4101/102/91 and is manufactured with 100% CAF-resistant Nittobo glass.

Best Applications for MEGTRON 6

• High-speed network equipment and routers
• Telecom infrastructure
• Server backplanes
• IC test equipment
• High-frequency measuring instruments
• Base station antennas
• Automotive millimeter-wave radar

Studies comparing MEGTRON 6 to standard FR-4 show approximately 20 dB less loss on 12-inch differential traces. For a 50 Gbps channel, that’s the difference between marginal and comfortable eye opening.

MEGTRON 7: Pushing Performance Boundaries

When networking equipment started pushing toward 400 GbE and beyond, MEGTRON 6’s loss characteristics began showing limitations on longer channel lengths. Panasonic responded with MEGTRON 7, delivering what was at the time the industry’s lowest transmission loss for thermosetting resin-based materials.

Technical Specifications

Parameter	MEGTRON 7 Value	Test Conditions
Dielectric Constant (Dk)	3.6	@1GHz
Dissipation Factor (Df)	0.0015	@1GHz
Glass Transition Temp (Tg)	200°C	DSC method
Thermal Decomposition (Td)	400°C	TGA method
T288 (with copper)	>120 min	Time to delamination

The MEGTRON 7 family includes:

• MEGTRON 7(N): Using R-5785(N) laminate and R-5680(N) prepreg with H-VLP copper
• MEGTRON 7(GN): Enhanced version with H-VLP2 copper
• MEGTRON 7(GE): Alternative enhanced version

Key Improvements Over MEGTRON 6

The jump from Df 0.0037 to 0.0015 might not look dramatic on paper, but it represents a substantial improvement in channel loss budget. For a 56 Gbps NRZ or 112 Gbps PAM4 design, MEGTRON 7 can extend your viable channel length by 30-40% compared to MEGTRON 6.

The increased Tg (200°C vs 185°C) also improves thermal stability during operation. This matters for boards in high-power applications where localized heating can cause dimensional changes that affect impedance. MEGTRON 7 maintains structural integrity across a wider temperature range, which translates to more consistent electrical performance.

HDI Compatibility

MEGTRON 7 is specifically designed for High Density Interconnect (HDI) compatibility, supporting very high layer counts and large format PCB layouts. The material’s enhanced thermal performance makes it suitable for boards exceeding 20 layers, where cumulative thermal stress during manufacturing can damage lesser materials.

Ideal Use Cases for MEGTRON 7

• 5G infrastructure (servers, routers for 400 GbE)
• High-end networking equipment
• AI servers requiring high bandwidth interconnects
• Supercomputers
• Aerospace communication systems
• Semiconductor test equipment

MEGTRON 8: Next-Generation Performance for 800 GbE

With the industry moving toward 800 Gigabit Ethernet and the Internet of Everything (IoE) driving explosive growth in data traffic, Panasonic developed MEGTRON 8 to meet next-generation requirements. Announced in January 2022, it delivers approximately 30% improvement in transmission loss compared to MEGTRON 7.

Technical Specifications

Parameter	MEGTRON 8 Value	Test Conditions
Dielectric Constant (Dk)	3.1	@14GHz
Dissipation Factor (Df)	0.0012	@14GHz
Glass Transition Temp (Tg)	220°C	DMA method
Thermal Decomposition (Td)	370°C	TGA method

The MEGTRON 8 family uses:

• R-5795(U) and R-5795(N): Laminate options
• R-5690(U) and R-5690(N): Prepreg options
• Ultra-low Df glass cloth variants available

How Panasonic Achieved Record-Low Loss

MEGTRON 8 achieves its industry-leading performance through several technologies:

1. Proprietary resin design: Advanced polymer chemistry minimizes molecular-level dielectric loss
2. Ultra-low Df glass cloth: Special glass fiber formulations that contribute less to overall loss
3. Low-profile copper foil: Smoother copper surfaces reduce skin effect losses at high frequencies
4. Optimized material compounding: Precise control of resin-glass ratios and distribution

The result is a material that can handle 800 GbE (112 Gbps PAM4) signals with margin to spare, while maintaining the thermal stability and reliability required for high-end networking equipment.

Reliability for High-Layer-Count Boards

One concern with pushing electrical performance is whether mechanical and thermal properties suffer. Panasonic specifically designed MEGTRON 8 to maintain excellent heat resistance and insulation reliability for boards exceeding 20 layers. The high Tg (220°C) and proprietary resin system ensure dimensional stability even after multiple reflow cycles.

Manufacturing Compatibility

Perhaps most importantly for production planning, MEGTRON 8 maintains the same manufacturability and processability as previous MEGTRON generations. It can be fabricated using standard multilayer circuit board processes without special equipment or modified lamination cycles. This backwards compatibility keeps fabrication costs predictable while delivering cutting-edge performance.

Target Applications

• 800 GbE routers and switches
• Optical transmission equipment
• AI servers and accelerators
• Next-generation base stations
• Probe cards for advanced semiconductor testing
• High-frequency aerospace systems

MEGTRON Series Comparison: Choosing the Right Material

Selecting between MEGTRON 6, 7, and 8 comes down to balancing performance requirements against cost constraints. Here’s a practical comparison to guide your decision:

Electrical Performance Comparison

Parameter	MEGTRON 6	MEGTRON 7	MEGTRON 8
Dk @10-14GHz	3.34	3.6	3.1
Df @10-14GHz	0.0037	0.0015	0.0012
Typical Loss (dB/inch @14GHz)	~0.85	~0.60	~0.42
Max Data Rate Support	28 Gbps	56 Gbps	112 Gbps

Thermal Performance Comparison

Parameter	MEGTRON 6	MEGTRON 7	MEGTRON 8
Tg (Glass Transition)	185°C	200°C	220°C
Td (Decomposition)	410°C	400°C	370°C
T288 Reliability	>120 min	>120 min	>120 min
Max Layer Count	16-20	20+	20+

Cost and Availability Considerations

Factor	MEGTRON 6	MEGTRON 7	MEGTRON 8
Relative Cost	$	$$	$$$
Lead Time	Standard	Standard	May be extended
Fab Availability	Widespread	Common	Growing
Prepreg Options	Extensive	Good	Good

Decision Framework

Choose MEGTRON 6 when:

• Channel data rates are 28 Gbps or below
• Channel lengths are under 10 inches
• Cost optimization is a primary concern
• You need maximum prepreg thickness options
• The application is telecom, networking at current-gen speeds

Choose MEGTRON 7 when:

• Targeting 56 Gbps per lane
• Channel lengths exceed 10 inches
• Operating temperatures are elevated
• You need HDI compatibility for 20+ layer boards
• 5G infrastructure or high-end server applications

Choose MEGTRON 8 when:

• Designing for 800 GbE (112 Gbps PAM4)
• Maximum signal integrity is required
• Loss budget is extremely tight
• Next-generation data center equipment
• You need future-proofing for evolving standards

How Panasonic PCB Materials Compare to Competitors

Engineers often ask how MEGTRON stacks up against Rogers, Isola, and other high-speed material suppliers. Here’s an honest assessment based on real-world experience.

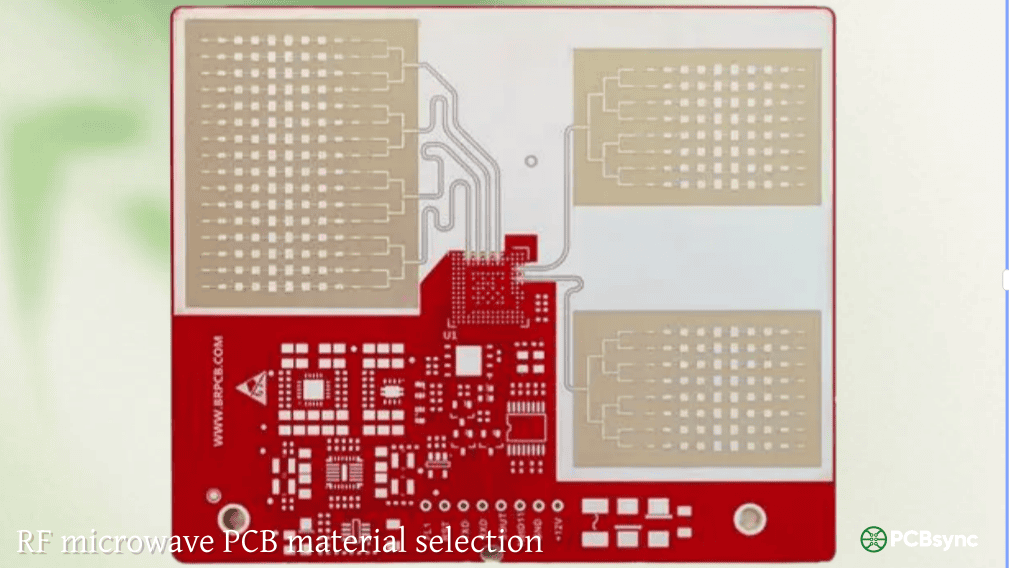

MEGTRON 6 vs Rogers RO4350B

Both are industry workhorses for high-speed applications, but they serve slightly different use cases:

Aspect	MEGTRON 6	Rogers RO4350B
Dk	3.34 @13GHz	3.48 @10GHz
Df	0.0037	0.0037
Processing	Standard FR-4	Modified cycle required
Prepreg Options	18 thicknesses	3 options
Relative Cost	1x	2x+
Best For	High-speed digital	RF/microwave

Rogers excels in RF applications requiring tight Dk tolerance and performs slightly better above 5 GHz. However, its limited prepreg options and requirement for higher lamination pressure increase fabrication complexity and cost. MEGTRON 6 offers more flexibility for high-layer-count digital designs while maintaining comparable electrical performance.

MEGTRON vs Isola FR408HR

Isola FR408HR targets the same market as MEGTRON 6, offering low Dk (3.66) and low Df (0.008). In testing, MEGTRON 6 with HVLP copper finish shows approximately 4-6 dB less loss than FR408HR at 25 GHz. The difference comes down to Panasonic’s tighter control of glass weave and resin distribution.

Processing Advantage

The consistent theme across comparisons is MEGTRON’s processing compatibility with standard FR-4 equipment. This isn’t just about convenience—it directly impacts your fabrication cost and supplier options. Any shop that can build FR-4 boards can work with MEGTRON materials without specialized equipment investments.

Design Considerations for MEGTRON Materials

Selecting the right material is only part of the equation. Here are practical design tips to maximize performance from your Panasonic PCB substrate.

Copper Foil Selection

MEGTRON materials are available with multiple copper foil options:

• Standard (STD): Adequate for lower frequencies
• VLP (Very Low Profile): Reduced surface roughness for better HF performance
• H-VLP (Hyper Very Low Profile): Best performance, essential for MEGTRON 7/8 applications
• H-VLP2: Enhanced version used in latest MEGTRON 7 variants

Surface roughness directly affects skin effect loss. At 25 GHz, H-VLP copper shows approximately 2 dB improvement over RTF (Reverse Treated Foil) on the same MEGTRON 6 substrate. Always specify H-VLP or better for designs exceeding 10 Gbps.

Glass Weave Considerations

Fiber weave effect causes impedance variations when differential pairs cross glass bundles at certain angles. MEGTRON 6 offers various “flat glass” prepreg styles with tightly woven patterns that minimize this effect. For critical signals, consider:

• Routing at 0° or 45° angles to the weave pattern
• Using flat glass prepregs in signal layers
• Specifying glass styles in your fab notes

Stackup Design Tips

When building stackups with MEGTRON materials:

1. Hybrid constructions work: Use MEGTRON for outer layers and signal cores; standard high-Tg FR-4 for power/ground cores can reduce cost without sacrificing critical performance
2. Match Dk between layers: Avoid mixing materials with significantly different Dk values in the same signal path
3. Account for prepreg flow: MEGTRON prepregs have different resin content options; work with your fabricator to select appropriate options for your geometry
4. Verify impedance with actual Dk: Datasheet Dk values are nominal; request actual measured values from your fab for accurate impedance calculations

Via Design for High-Speed

MEGTRON materials support standard via processing, but high-speed designs require attention to:

• Via stub length: Back-drill or use HDI microvias to minimize resonance
• Anti-pad sizing: Larger anti-pads reduce parasitic capacitance but affect reference plane integrity
• Via-to-via spacing: Maintain adequate separation to minimize crosstalk

Industry Applications and Case Studies

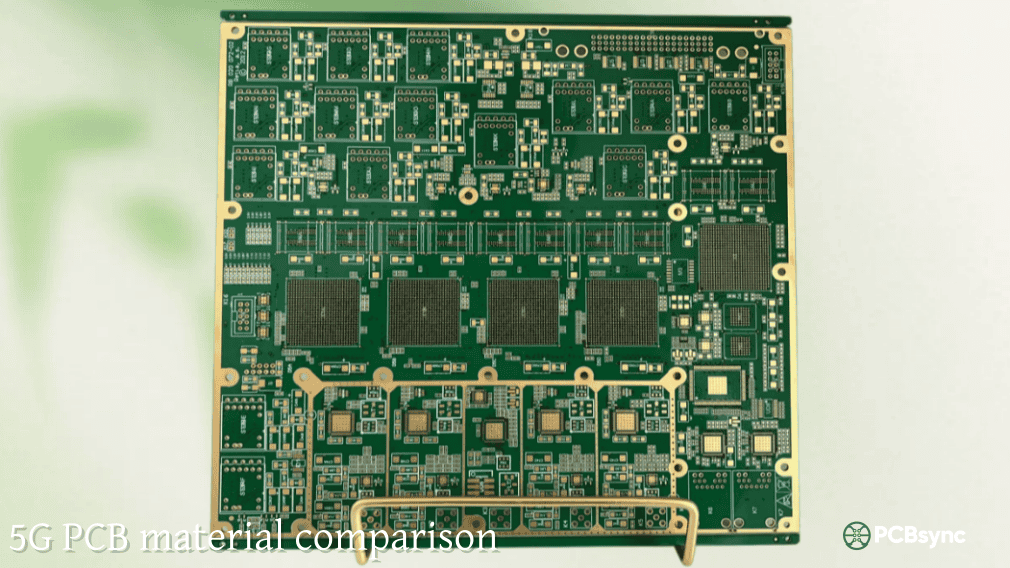

5G Infrastructure

5G base stations operating in sub-6GHz and mmWave bands require materials that can handle both digital processing and RF front-end functions. MEGTRON materials enable:

• Antenna integration on the same board as digital processing
• Multi-layer designs with mixed signal types
• Thermal stability for outdoor deployment

Panasonic’s R-5410 halogen-free variant was specifically developed for millimeter-wave antennas, improving antenna performance while reducing manufacturing costs.

Automotive Electronics

Modern vehicles contain numerous high-speed interfaces for radar, ADAS, and infotainment. MEGTRON materials address automotive requirements through:

• High Tg for under-hood temperature extremes
• Consistent performance across -40°C to +125°C range
• Compatibility with automotive qualification standards

Engine control units (ECUs) using MEGTRON substrates maintain signal integrity despite thermal cycling and vibration that would degrade standard materials.

Aerospace and Defense

Panasonic’s MEGTRON 7 has been qualified by the European Space Agency (ESA) for PCB applications. Space exposure experiments conducted on the International Space Station demonstrated durability of electronic materials in harsh space environments. Key benefits for aerospace include:

• Radiation resistance
• Low outgassing for vacuum applications
• Consistent performance across extreme temperature ranges
• Long-term reliability

Data Centers and AI Computing

AI accelerators and high-performance computing systems push I/O bandwidth requirements beyond what previous-generation materials could support. MEGTRON 8 enables:

• 800 GbE switch fabrics
• High-density GPU interconnects
• Low-latency memory interfaces

The material’s reduced transmission loss can also improve power efficiency—lower loss means less signal power required, reducing overall system power consumption.

Useful Resources for PCB Engineers

Official Panasonic Resources

• Panasonic Electronic Materials Portal: industrial.panasonic.com/ww/electronic-materials – Main product information hub
• Circuit Board Materials Selection Guide: industrial.panasonic.com/ww/electronic-materials/products/sp_cbm/guide – Interactive material selector
• MEGTRON Series Overview: na.industrial.panasonic.com/products/electronic-materials/circuit-board-materials/lineup/megtron-series – Complete MEGTRON product family
• 5G Solutions Page: industrial.panasonic.com/ww/electronic-materials/concept/5g_multi_pcb – 5G-specific guidance

Datasheet Downloads

• MEGTRON 6 Datasheet (R-5775 series)
• MEGTRON 7 Datasheet (R-5785 series)
• MEGTRON 8 Datasheet (R-5795 series)
• IPC-4101E Specification Sheets

Contact Panasonic Industry sales or authorized distributors (Matrix Electronics, Cirexx) for current datasheets and technical documentation.

Industry Standards Reference

• IPC-4101: Base material specification for rigid and multilayer boards
• IPC-TM-650 2.5.5.5: Test method for Dk and Df measurement
• IPC-6012: Qualification and performance specification for rigid PCBs

Design Tools and Calculators

Most EDA tools include MEGTRON materials in their stackup libraries. Verify Dk/Df values match your specific variant and frequency of interest. Panasonic provides characterization data up to 50 GHz for advanced simulation needs.

Frequently Asked Questions

Can MEGTRON materials be processed like standard FR-4?

Yes, this is one of MEGTRON’s key advantages. All MEGTRON variants use the same lamination pressures, temperatures, and cure times as conventional FR-4. This compatibility means any fabricator experienced with FR-4 can produce MEGTRON boards without specialized equipment or process modifications. You can even create hybrid stackups combining MEGTRON and FR-4 layers in a single lamination cycle.

What’s the maximum frequency for each MEGTRON grade?

MEGTRON 6 performs well up to approximately 25-30 GHz and is suitable for data rates up to 28 Gbps. MEGTRON 7 extends this to 56 Gbps with good performance beyond 30 GHz. MEGTRON 8 targets 112 Gbps (PAM4) applications and has been characterized up to 50 GHz. The practical limit depends on channel length, required margin, and acceptable insertion loss.

Are Panasonic PCB materials suitable for automotive applications?

Absolutely. Both MEGTRON 6 and MEGTRON 7 are widely used in automotive radar systems, ADAS modules, and vehicle communication systems. The materials offer high Tg for elevated operating temperatures, excellent thermal cycling reliability, and consistent electrical performance across automotive temperature ranges (-40°C to +125°C). Several automotive OEMs have qualified MEGTRON materials for production use.

How do I choose between MEGTRON 6, 7, and 8?

The decision primarily depends on your data rate requirements and channel length. For designs under 28 Gbps with channel lengths under 10 inches, MEGTRON 6 provides excellent performance at lower cost. For 56 Gbps designs or longer channels, MEGTRON 7 offers the additional loss margin needed. MEGTRON 8 is reserved for cutting-edge 112 Gbps designs or situations where loss budget is extremely constrained. Also consider availability and lead time—MEGTRON 6 is more widely stocked than MEGTRON 8.

What certifications do MEGTRON materials carry?

MEGTRON materials meet IPC specification 4101 requirements and carry UL 94V-0 flammability certification. They comply with RoHS requirements and are lead-free assembly compatible. Halogen-free variants are available for environmentally sensitive applications. MEGTRON 7 has achieved qualification for space applications through ESA testing, and various grades carry automotive certifications depending on the specific application.

Conclusion

Panasonic PCB materials—particularly the MEGTRON series—have earned their position as industry standards through consistent performance, manufacturing compatibility, and continuous innovation. From MEGTRON 6’s establishment as the workhorse of high-speed design to MEGTRON 8’s industry-leading loss performance for 800 GbE applications, these materials provide solutions across the spectrum of demanding applications.

The key to successful implementation is matching material capabilities to your actual requirements. Don’t over-specify and pay for performance you don’t need, but don’t under-specify and end up with marginal designs either. Use the comparison tables and decision framework in this guide as starting points, then work with your fabricator to optimize stackup and processing for your specific application.

As data rates continue climbing and applications become more demanding, material selection will only grow in importance. Understanding the capabilities and trade-offs of materials like the MEGTRON series positions you to make informed decisions that balance performance, cost, and manufacturability—the holy trinity of successful PCB design.
