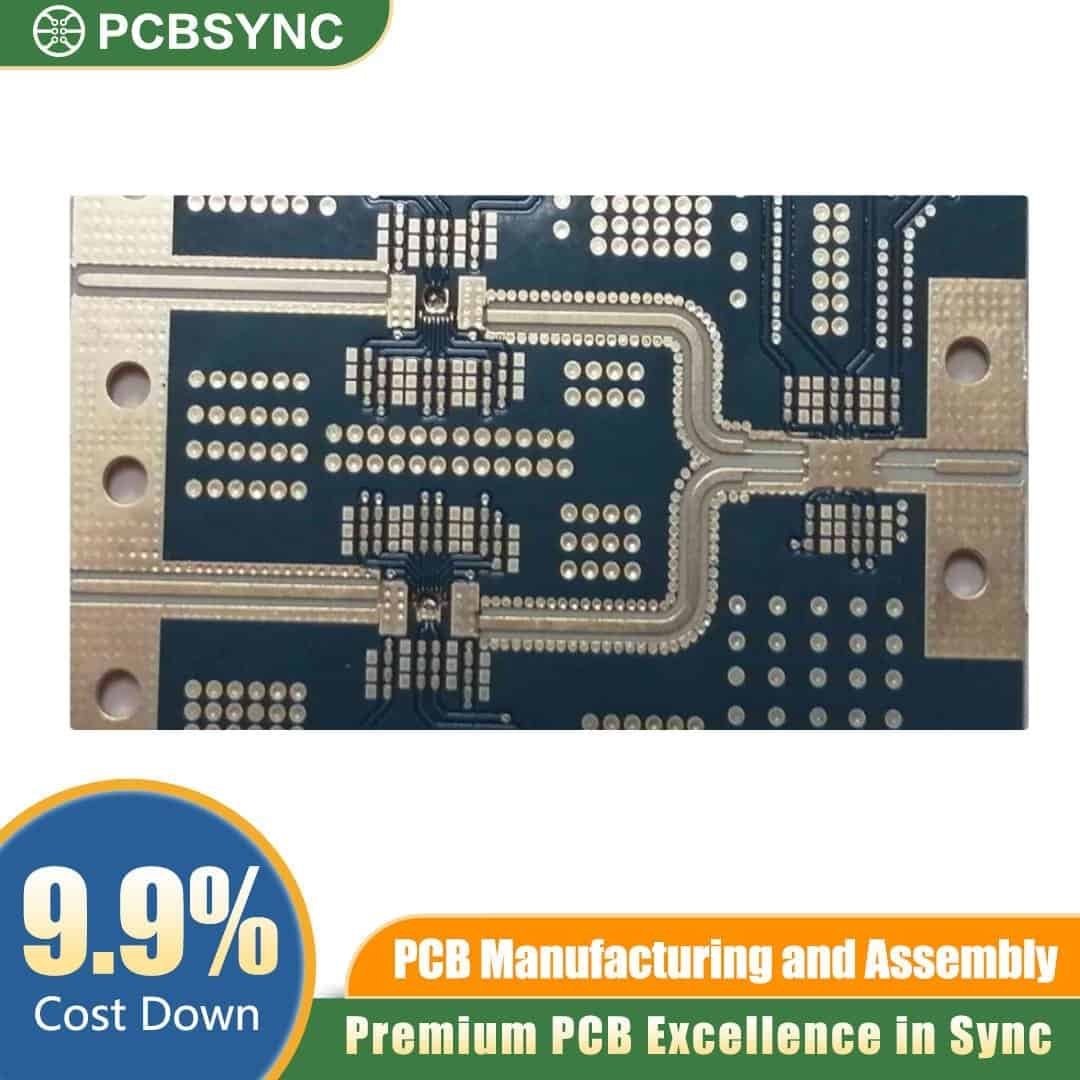

Taconic PCB 28GHz 5G mmWave Phased Array Antenna

Taconic PCB 28GHz 5G mmWave Phased Array Antenna

Request A Quote

Product Details

The Taconic PCB 28GHz 5G mmWave Phased Array Antenna is engineered specifically for high-frequency millimeter-wave applications that demand minimal signal attenuation and superior thermal management. Built on premium PTFE-based Taconic laminates, this circuit board provides the structural rigidity, low dielectric constant (Dk), and tight thickness tolerances essential for beamforming networks and phased array radar systems. It serves RF engineers, aerospace developers, and telecommunications equipment manufacturers who require predictable, stable performance across extended temperature ranges.

Key Features of Taconic PCB 28GHz 5G mmWave Phased Array Antenna Solutions

  • Premium Base Material: Utilizes ceramic-filled PTFE Taconic laminates for a low dissipation factor (Df) and minimal insertion loss at 28GHz.

  • Strict Impedance Control: Manufactured with a tolerance of ±5% to ensure flawless signal transmission and minimize reflections.

  • Advanced Surface Finish: Available with ENIG or ENEPIG surface finishes to optimize wire bonding and prevent skin effect losses at mmWave frequencies.

  • High Thermal Conductivity: Excellent thermal dissipation capabilities to maintain performance during continuous high-power transmission.

  • Precision Registration: Multilayer registration tolerance held within ±50μm to support complex phased array element distribution.

  • Compliance Standards: Fully compliant with IPC-A-600 Class 3, RoHS, and REACH requirements.

Applications

  • 5G/6G macro base stations and small cell telecommunications infrastructure.

  • Automotive radar systems (77GHz to 81GHz scaling capable).

  • Satellite communications (Satcom) and aerospace telemetry.

  • Real-time military and civilian phased array radar equipment.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

For tailored stack-ups, custom drill configurations, or to discuss your specific high-frequency project requirements, contact our engineering team or request a quote today.
