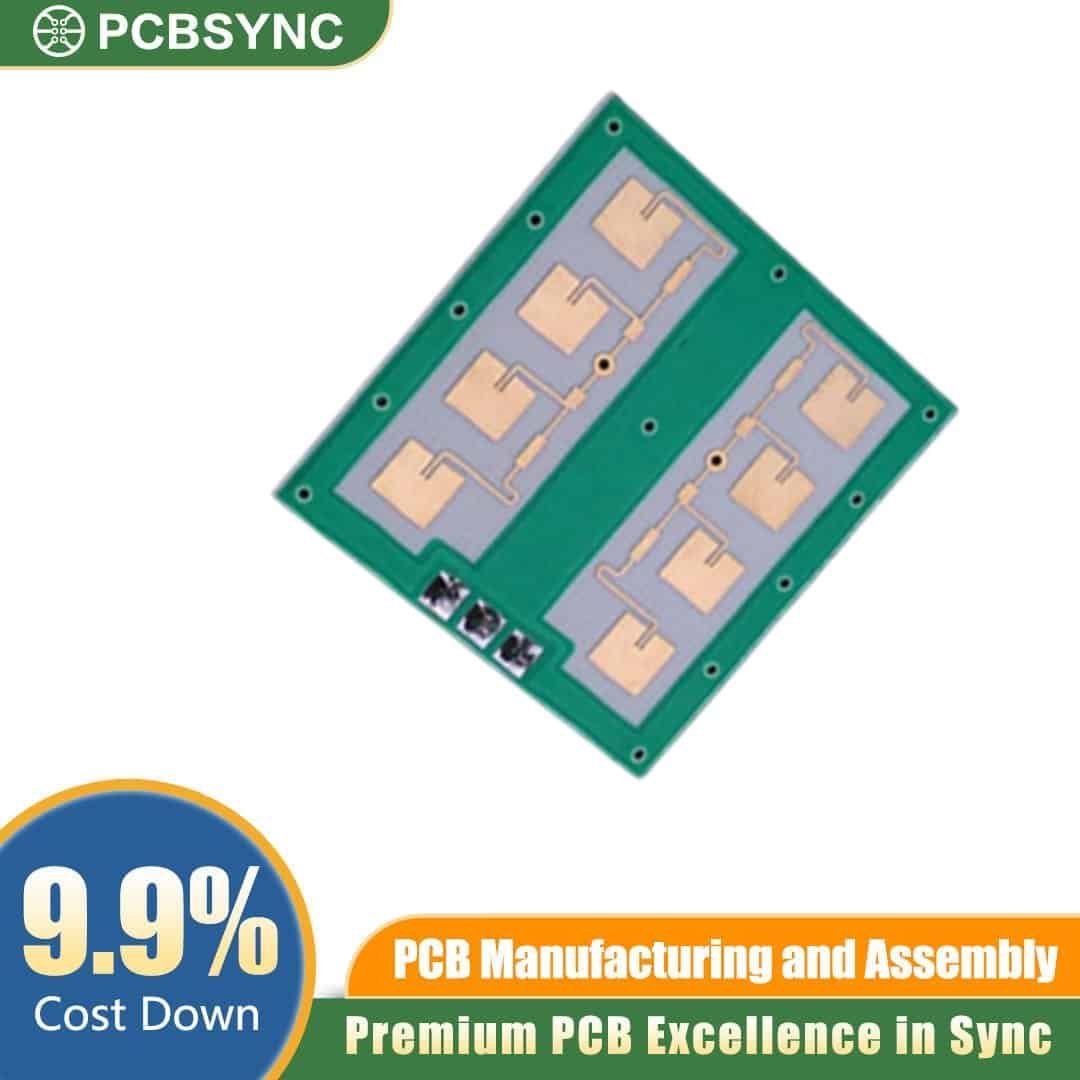

The Taconic PCB 24GHz automotive radar module multilayer board is engineered specifically for high-frequency driver-assistance systems and autonomous vehicle sensors. Designed to maintain exceptional signal integrity at millimetre-wave frequencies, this multilayer board minimises dielectric loss and propagation delay. It provides automotive developers and RF engineers with the tight dimensional tolerances and stable electrical properties required for consistent radar performance under harsh environmental conditions.

Key Features

• Premium Material Base: Built on high-frequency Taconic PTFE laminates for superior dielectric constant ($\varepsilon_r$) uniformity and low dissipation factor.

• Precise 24GHz Optimization: Tight tolerance control on trace widths and spacing to maintain characteristic impedance and minimise signal attenuation.

• Multilayer Stack-Up: Engineered layer registration with hybrid material compatibility, blending high-frequency RF layers with standard FR4 cores for cost-effective structural integrity.

• Surface Finish Options: Electroplated nickel immersion gold (ENIG) or Immersion Silver (ImAg) to ensure optimal solderability and prevent skin-effect losses at high frequencies.

• Thermal Stability: Low coefficient of thermal expansion (CTE) along the Z-axis to prevent via failure during thermal cycling.

Applications

• Advanced Driver-Assistance Systems (ADAS): Blind-spot detection, lane change assist, and rear cross-traffic alerts.

• Adaptive Cruise Control (ACC): Short and medium-range radar sensors for autonomous speed regulation.

• Proximity Detection: Collision avoidance systems for commercial, industrial, and passenger vehicles.

• Traffic Management: Infrastructure-mounted radar sensors for smart city speed and flow monitoring.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Partner with an experienced automotive electronics manufacturer for your next radar project. Contact the PCBSYNC engineering team today to submit your Gerber files and request a comprehensive technical quote.
