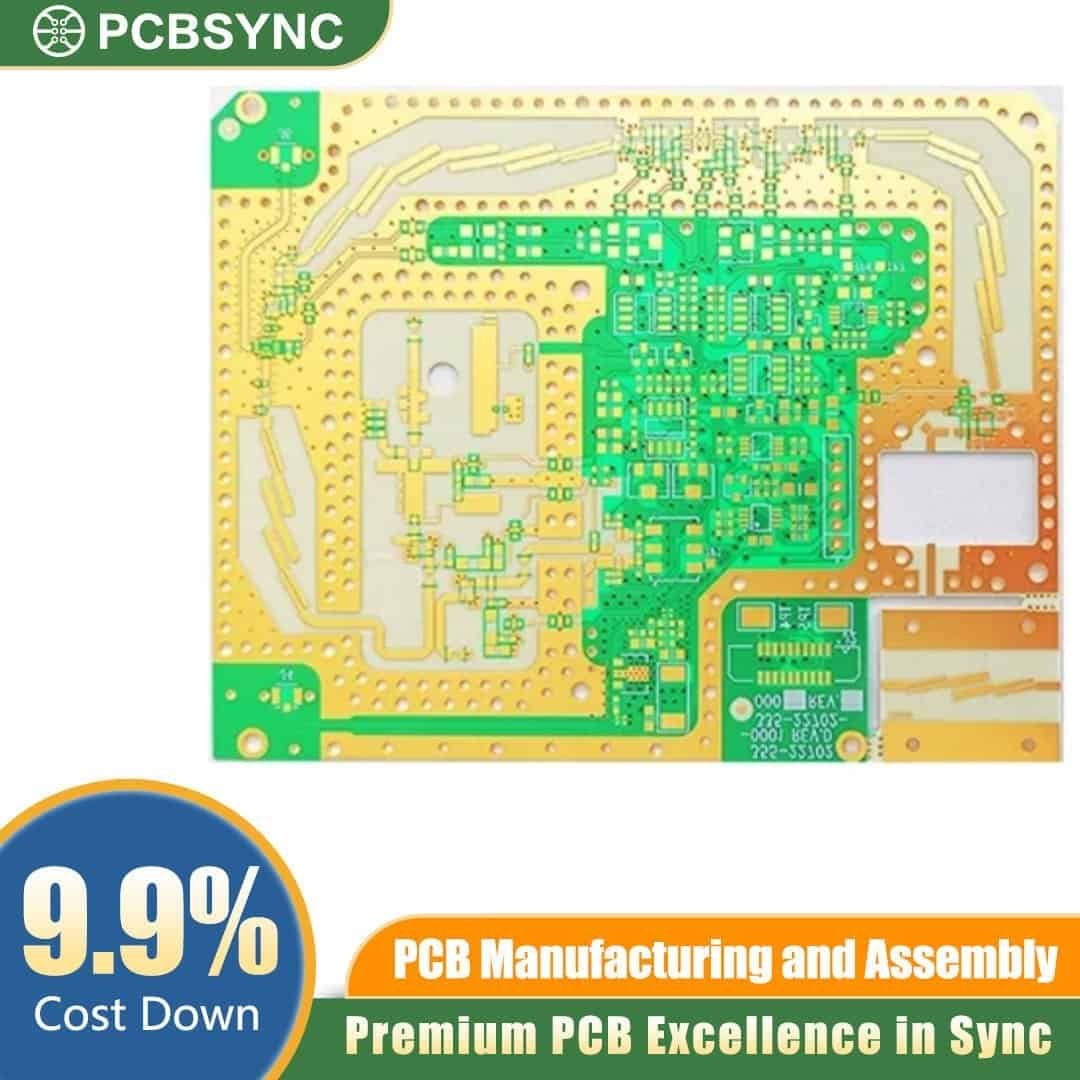

RT duroid 5880 0.8mm 12oz Hard Gold 8-Layer Medical Radar Vital Signs Monitor PCB

RT duroid 5880 0.8mm 1/2oz Hard Gold 8-Layer Medical Radar Vital Signs Monitor PCB

Request A Quote

Product Details

The RT duroid 5880 8-layer medical radar PCB is a high-performance substrate solution engineered specifically for non-contact vital signs monitoring. Designed for engineers and medical device manufacturers, this 8-layer stackup utilizes Rogers 5880 PTFE composites to maintain an exceptionally low dielectric constant ($D_k$) and low dissipation factor. These properties are essential for reducing signal loss and phase distortion in sensitive medical radar applications.

Key Features

  • Substrate Material: Rogers RT duroid 5880 (Glass Microfibre Reinforced PTFE)

  • Layer Count: 8-Layer high-density interconnect (HDI) capability

  • Board Thickness: 0.8mm for compact medical housing integration

  • Copper Weight: 1/2oz (17.5µm) base copper for precise impedance control

  • Surface Finish: Hard Gold (Electrolytic Gold) for maximum wear resistance and conductivity

  • Signal Integrity: Optimized for Millimetre-Wave (mmWave) frequencies used in heart rate and respiration tracking

Applications

This 8-layer high-frequency PCB is primarily used in the healthcare and biotech sectors. Specific applications include:

  • Vital Signs Monitoring: Non-invasive detection of heart rate, respiratory rate, and sleep apnea.

  • Medical Imaging: High-resolution diagnostic radar and ultrasound equipment.

  • Patient Safety: Fall detection sensors and occupancy monitoring in clinical environments.

  • Remote Diagnostics: Wearable and bedside UHF/EHF telemetry systems.

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Contact our technical sales team today to discuss your project requirements or to request a formal quotation for your RT duroid 5880 PCB designs.
