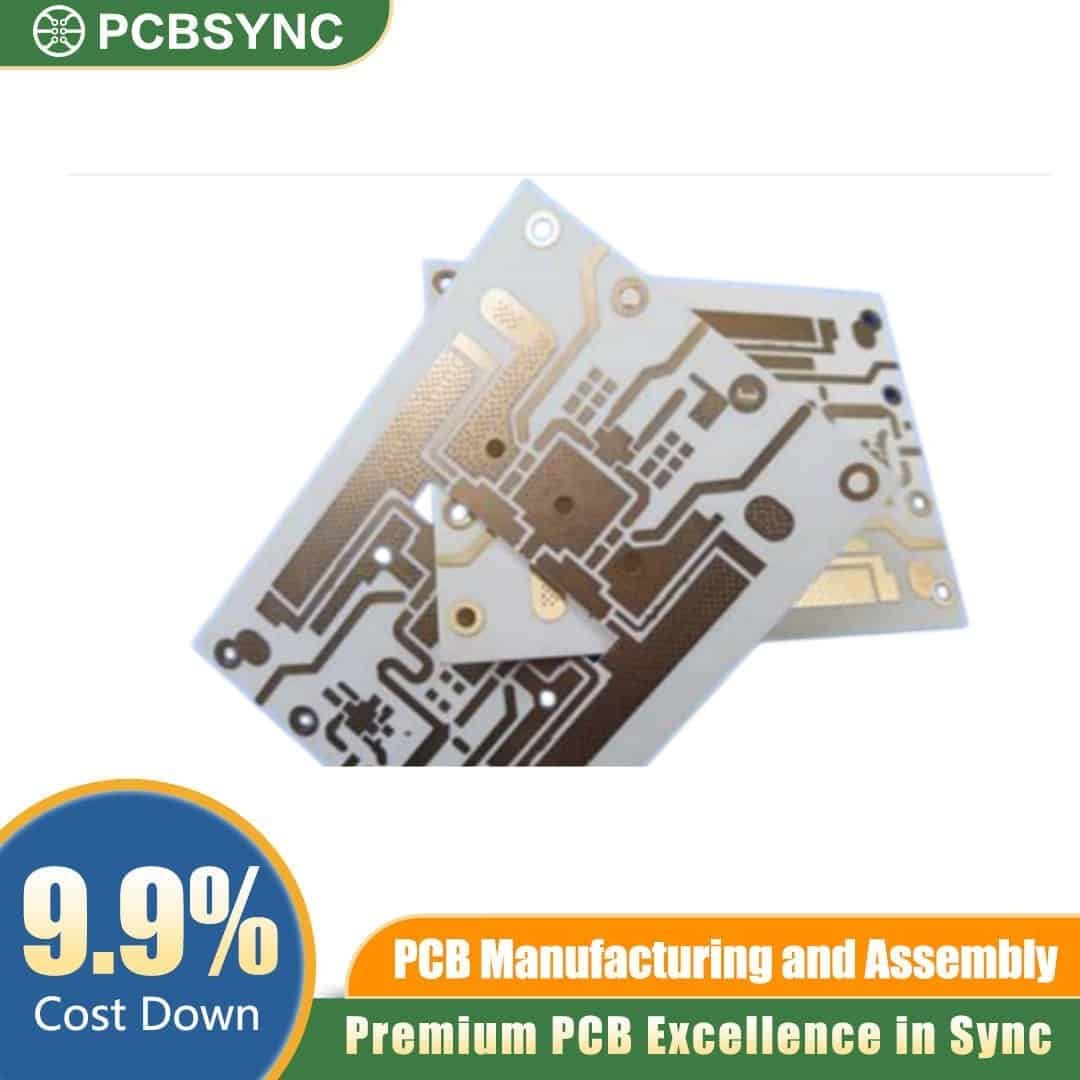

The Arlon PCB AR600 High DK Laminate is a specialised 2-layer antenna substrate engineered for high-frequency RF and microwave applications. Designed specifically for engineers and procurement managers who require circuit size reduction without compromising performance, this material delivers exceptional thermal stability and low electrical loss. Whether you are developing low-noise amplifiers or complex radar systems, this substrate provides the mechanical rigidity and electrical predictability needed for reliable high-speed signal transmission.
Key Features of Arlon AR600 High DK Laminate
-
High Dielectric Constant: Features a stable DK of 6.00 at 10 GHz for effective circuit miniaturisation.
-
Low Dissipation Factor: Dissipation factor (Df) of 0.0035 minimizes signal loss in high-frequency circuits.
-
Layer Count: Standard 2-layer configuration optimized for microstrip and stripline antenna designs.
-
Thermal Conductivity: Enhanced thermal management capabilities with a rating of 0.40 W/mK to dissipate heat in power-dense applications.
-
Low Moisture Absorption: Rated at 0.04%, ensuring consistent electrical performance in humid environments.
-
IPC Standards: Fabricated in full compliance with IPC-4103 guidelines for high-frequency base materials.
Applications
-
Base Station Antennas: Ideal for cellular infrastructure, power amplifiers, and patch antennas.
-
Aerospace & Defence: Used in radar systems, guidance controls, and satellite communication modules.
-
Automotive Radar: Suitable for collision avoidance systems and adaptive cruise control sensors operating at microwave frequencies.
-
Commercial Communication: Applied in Wi-Fi routers, point-to-point digital radios, and wireless telemetry.
Why Choose PCBSYNC
PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.
Get a Custom Quote
Streamline your next high-frequency project with precision manufacturing. Contact the PCBSYNC engineering team today to submit your Gerber files, discuss material stack-ups, or request a comprehensive quote.
