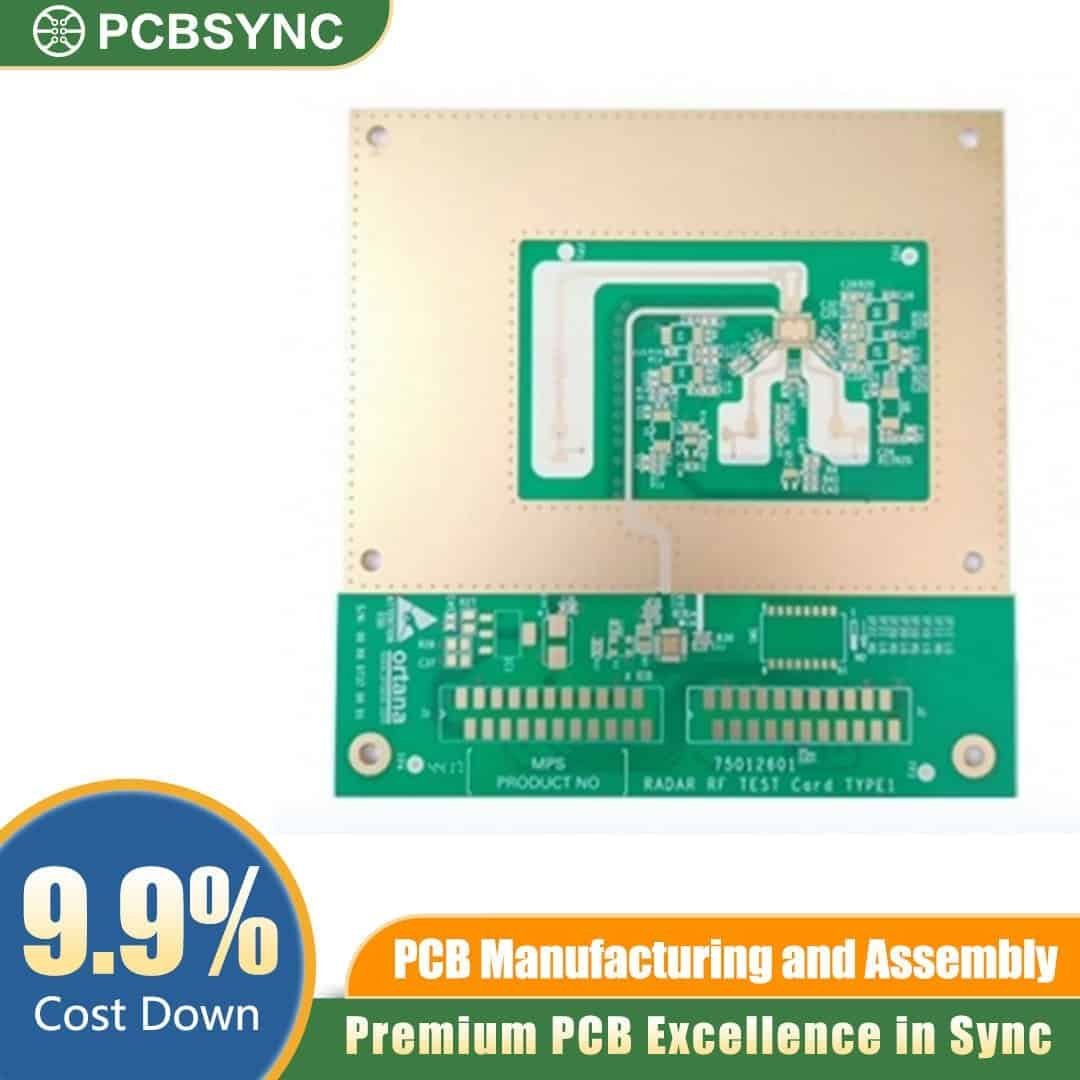

Arlon AR350 PCB DK 3.50 6-Layer Cellular Base Station Antenna

Arlon AR350 PCB | DK 3.50 | 6-Layer Cellular Base Station Antenna

Request A Quote

Product Details

The Arlon PCB AR350 6-layer circuit board delivers the precise electrical performance and mechanical stability required for advanced telecommunications infrastructure. Designed specifically for cellular base station antennas, this substrate effectively manages high-frequency signals while minimizing passive intermodulation (PIM) and signal attenuation. For RF engineers and product developers building robust wireless communication hardware, the Arlon AR350 PCB provides the dependable foundation needed for continuous, high-power operation.

Key Features of Arlon AR350 PCB

  • Optimized Dielectric Constant: Features a stable DK of 3.50 at microwave frequencies for accurate impedance control.

  • 6-Layer Multilayer Build: Precision-engineered layer registration to support complex routing and integrated grounding planes.

  • Low Dissipation Factor: Minimal DF ensures excellent power efficiency and reduced thermal dissipation across the antenna array.

  • Enhanced Thermal Conductivity: Dissipates localized heat efficiently, maintaining structural integrity under high RF power loads.

  • Strict Quality Compliance: Manufactured to IPC Class 2 or Class 3 standards, ensuring reliability in outdoor infrastructure.

Applications

  • Cellular base station antennas (4G/5G macro cells and small cells)

  • Telecommunications power amplifiers

  • Wireless infrastructure MIMO antenna arrays

  • Satellite communication systems and ground terminals

Why Choose PCBSYNC

PCBSYNC is a professional PCB fabrication, PCBA, and EMS manufacturer delivering precision-built electronics for aerospace, medical, automotive, industrial, and smart energy applications. We handle everything from rapid prototyping to mass production — including rigid, flexible, and rigid-flex PCBs, full turnkey assembly, component sourcing, AOI and X-ray inspection, and OEM/ODM support. Reliable boards. Consistent quality. From prototype to production — PCBSYNC.

Request a Technical Consultation

Ready to integrate the Arlon AR350 substrate into your next RF design? Contact the engineering team at PCBSYNC today to discuss your layer stackup requirements or request a comprehensive quote.
